Description

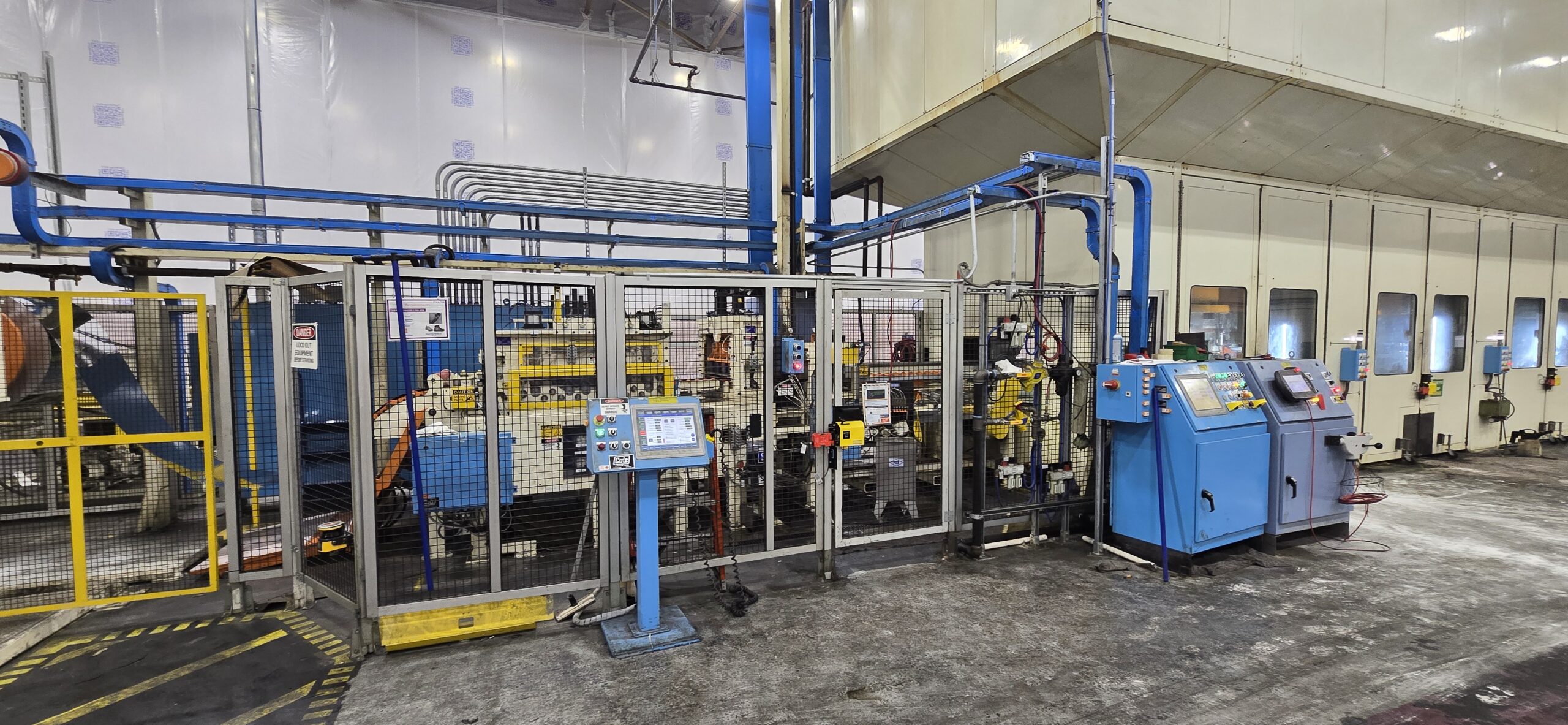

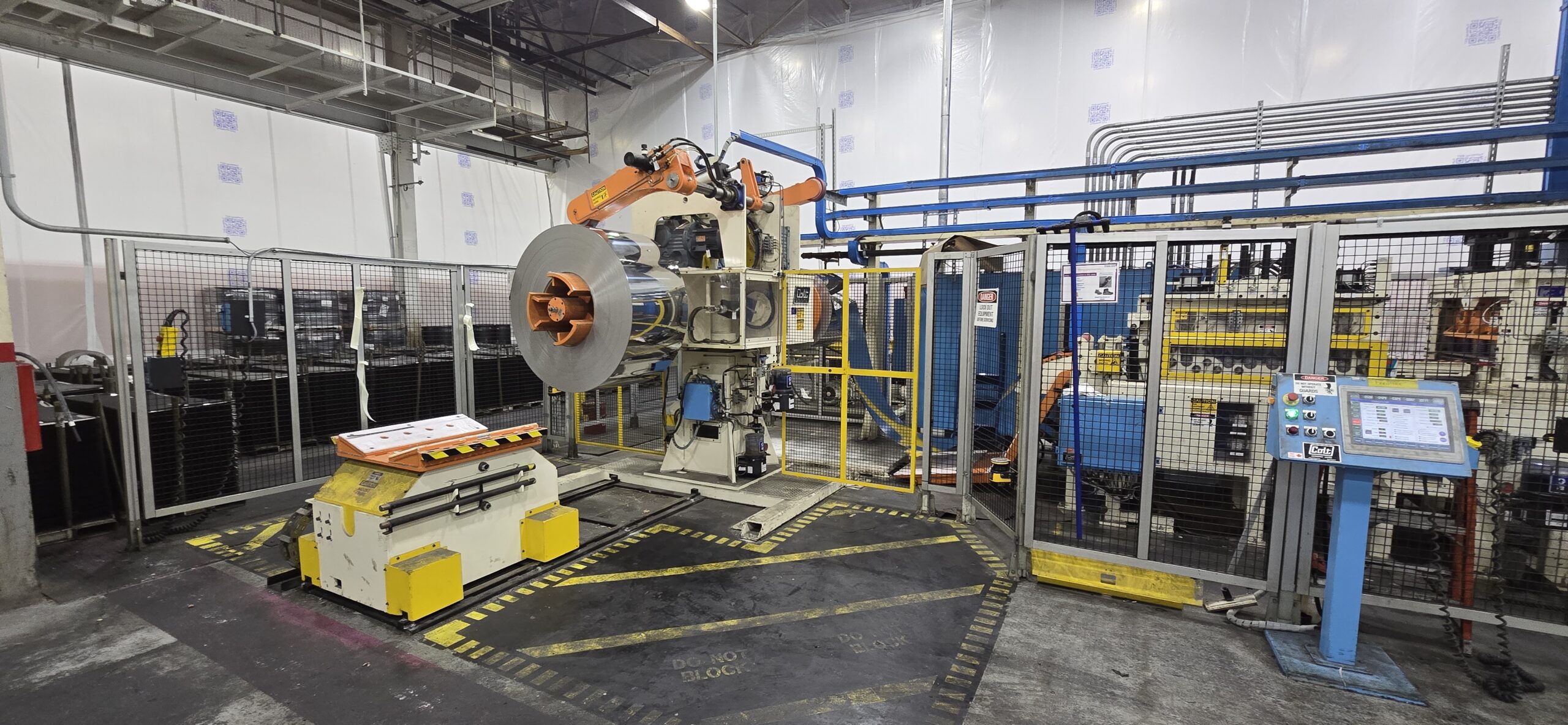

30” x .062” x 12,000 lb Colt Feed Line HSAA
YEAR: 2023
Consisting of:

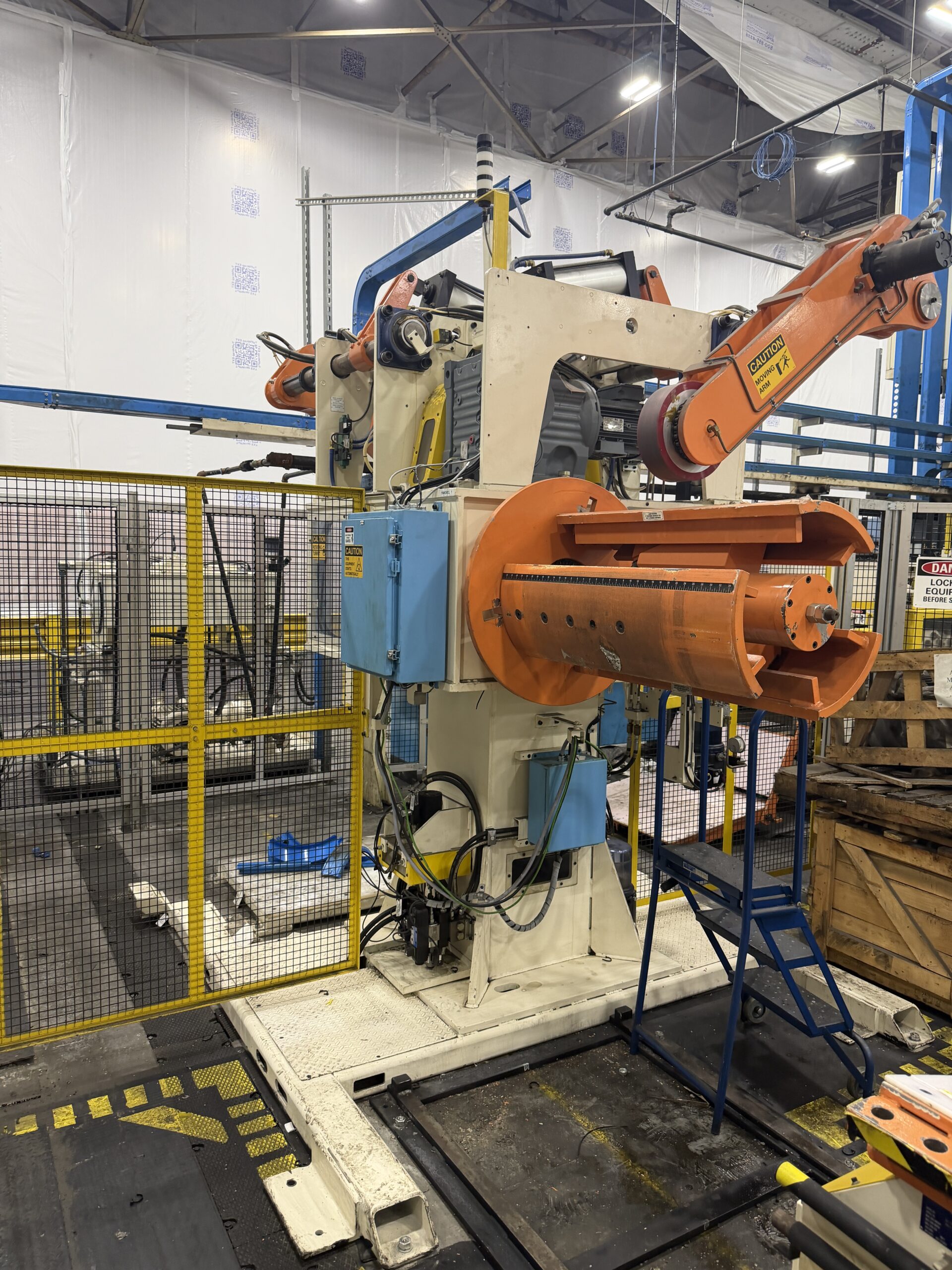

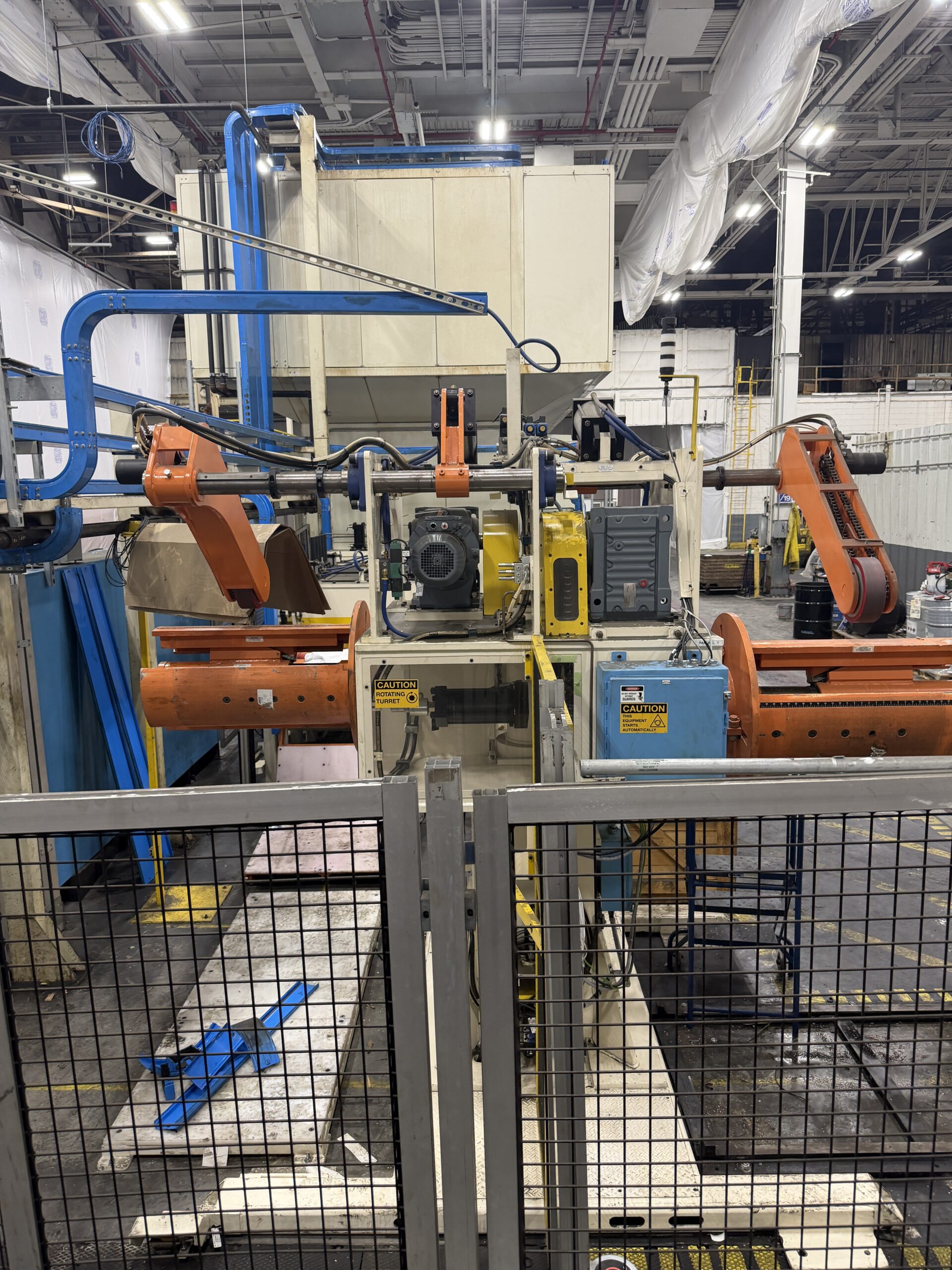

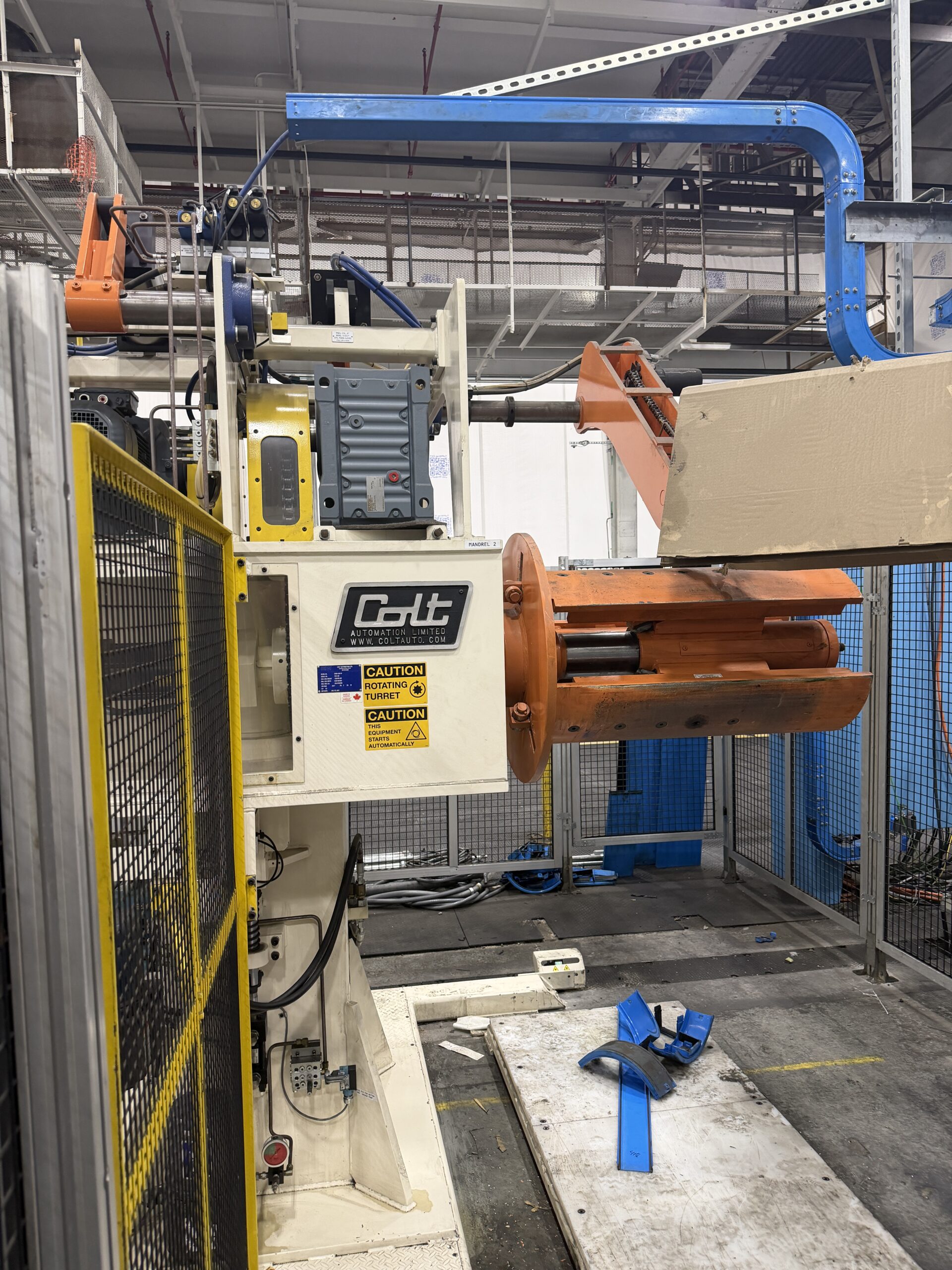

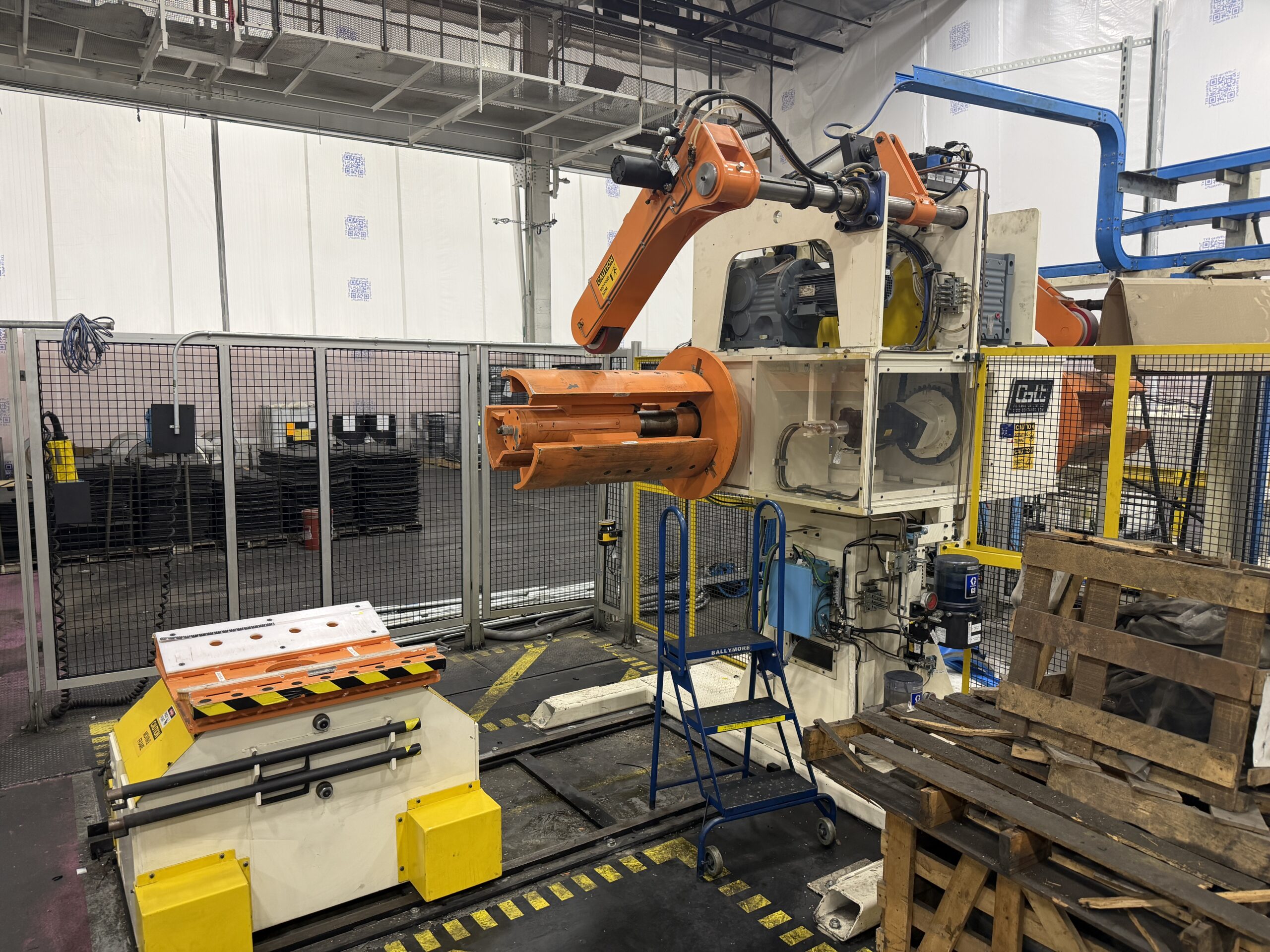

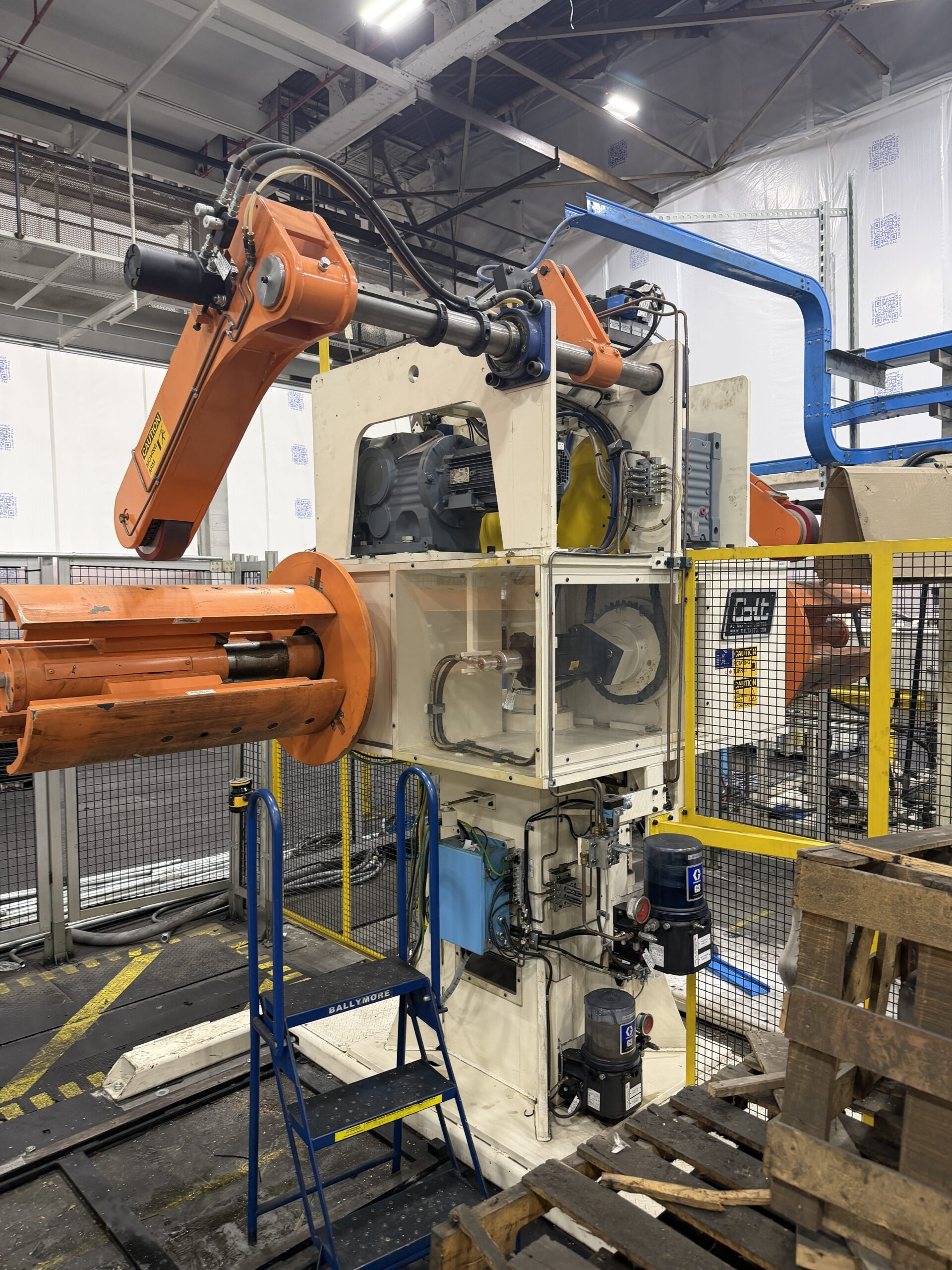

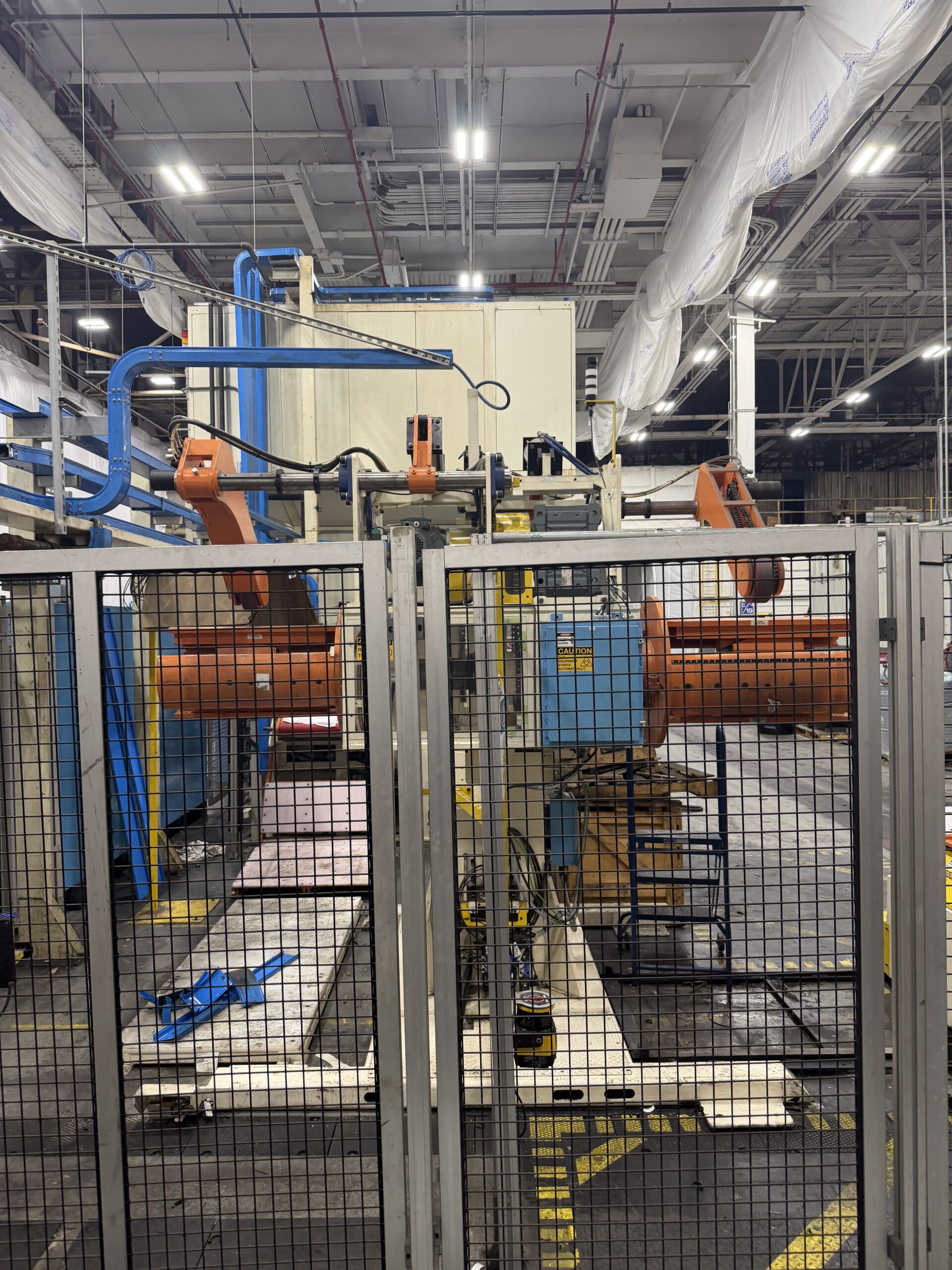

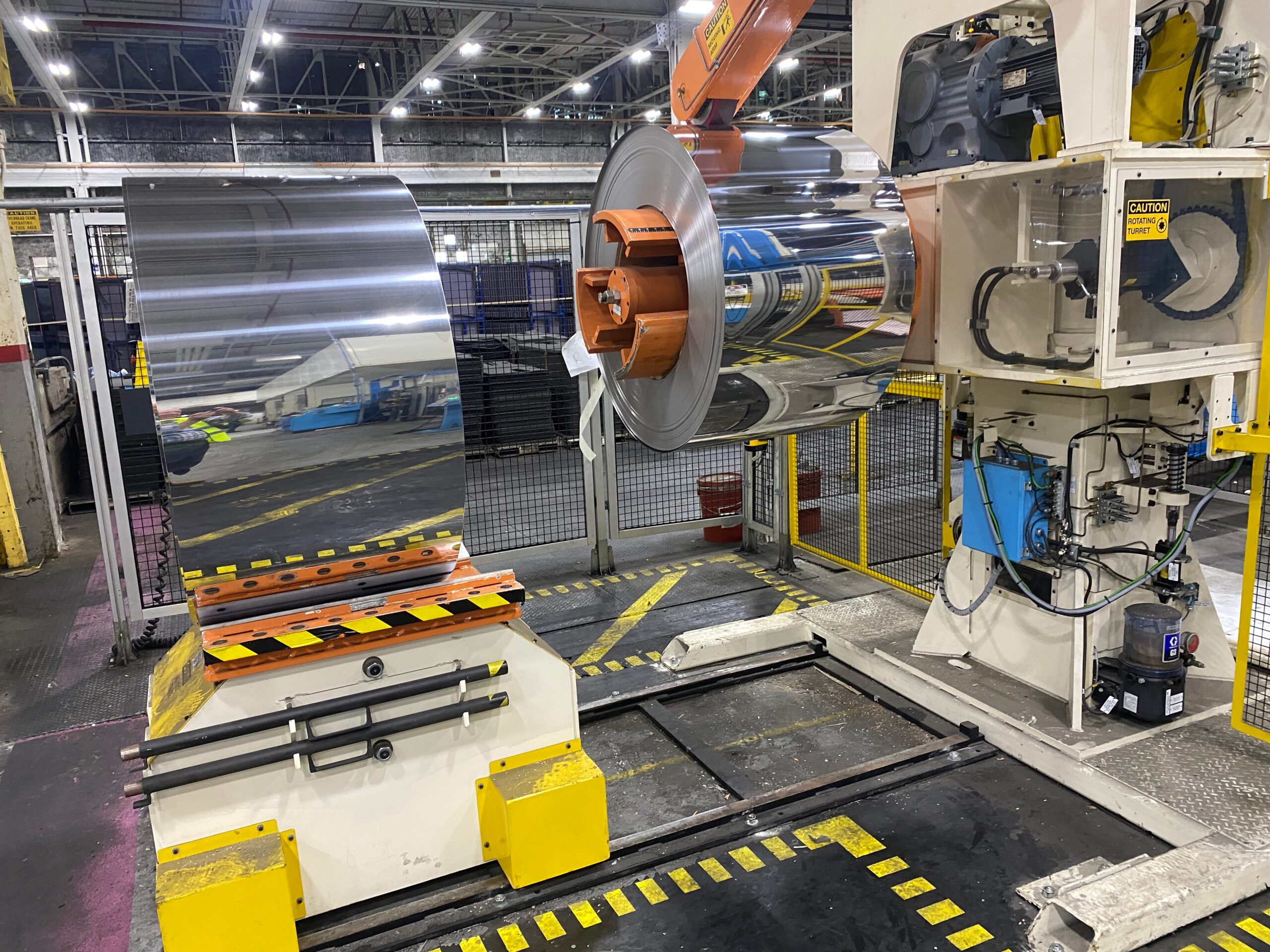

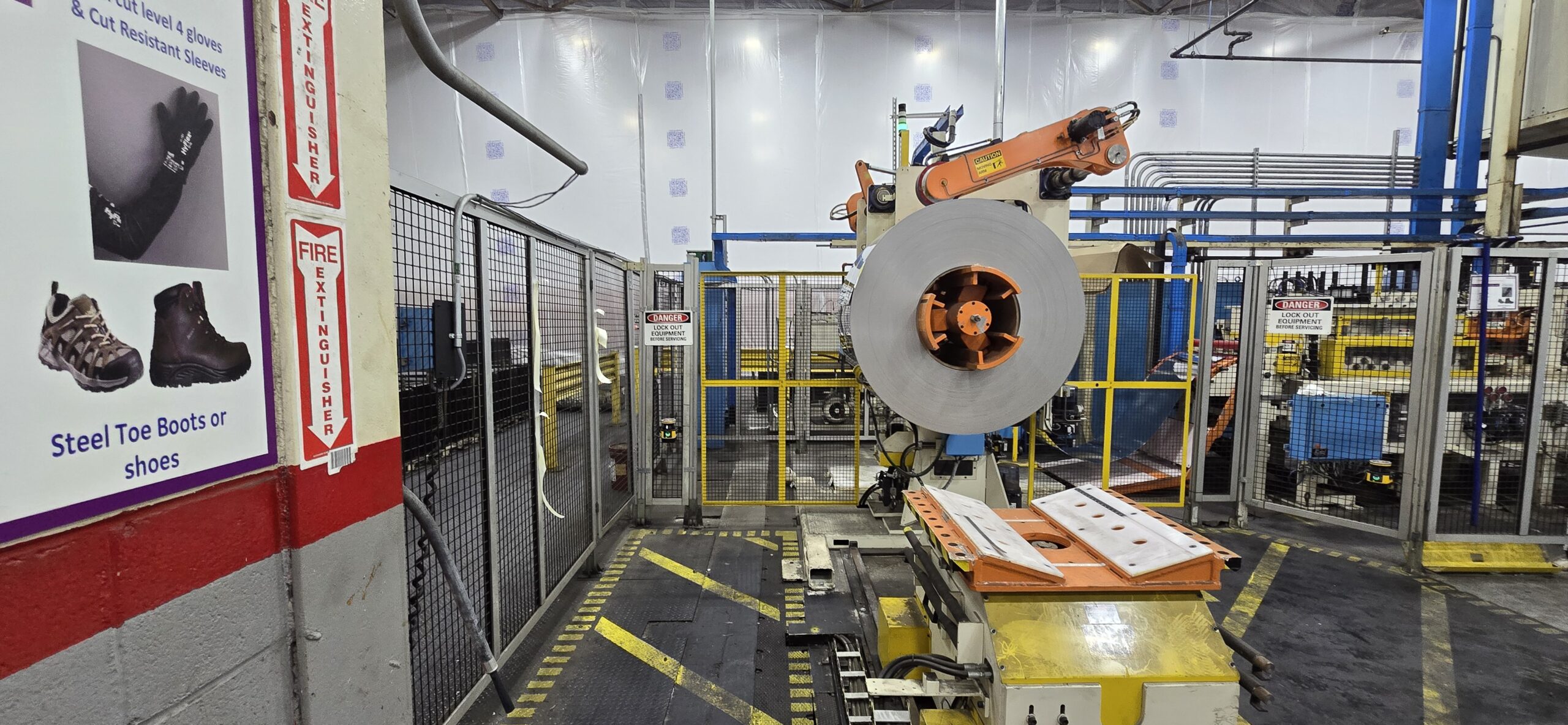

Heavy Duty Powered Double End Uncoiler:
Model: CHDRD-1200-30
Serial#1181-120
Max Coil Width: 30″
Max Coil Weight: 12,000 lbs
Max Coil O.D.: 60″
Mandrel Expansion Range: 19″-25″

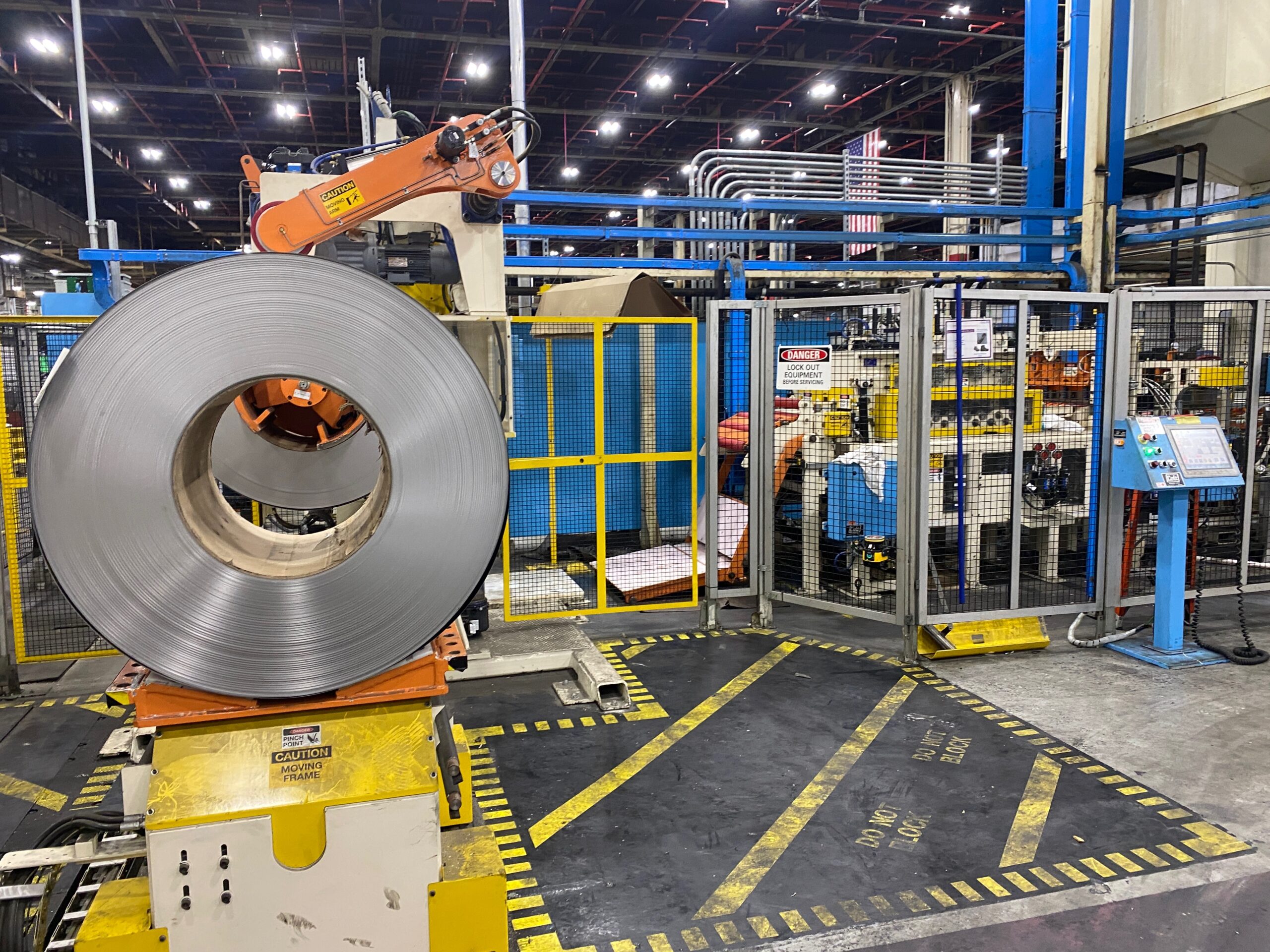

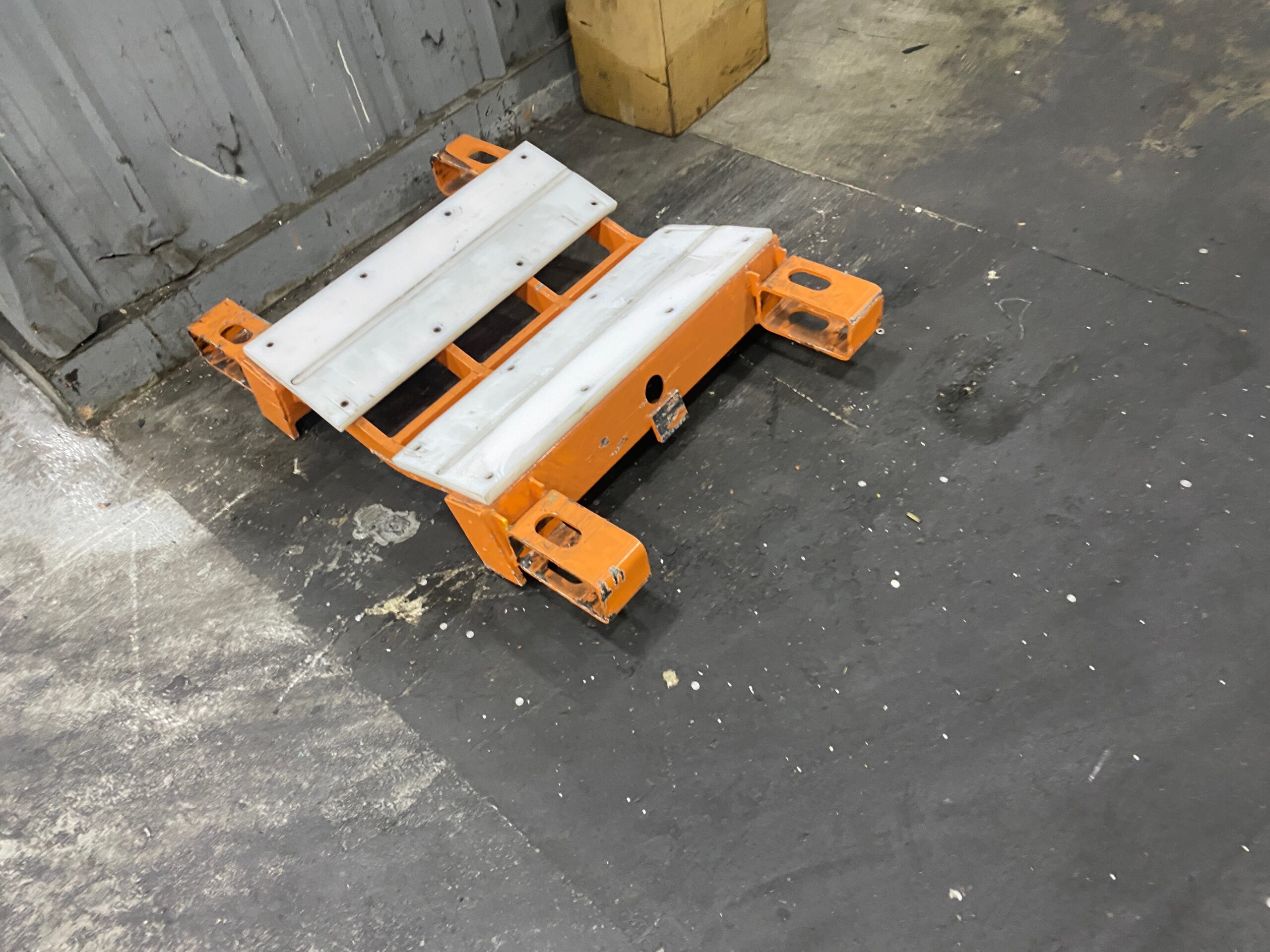

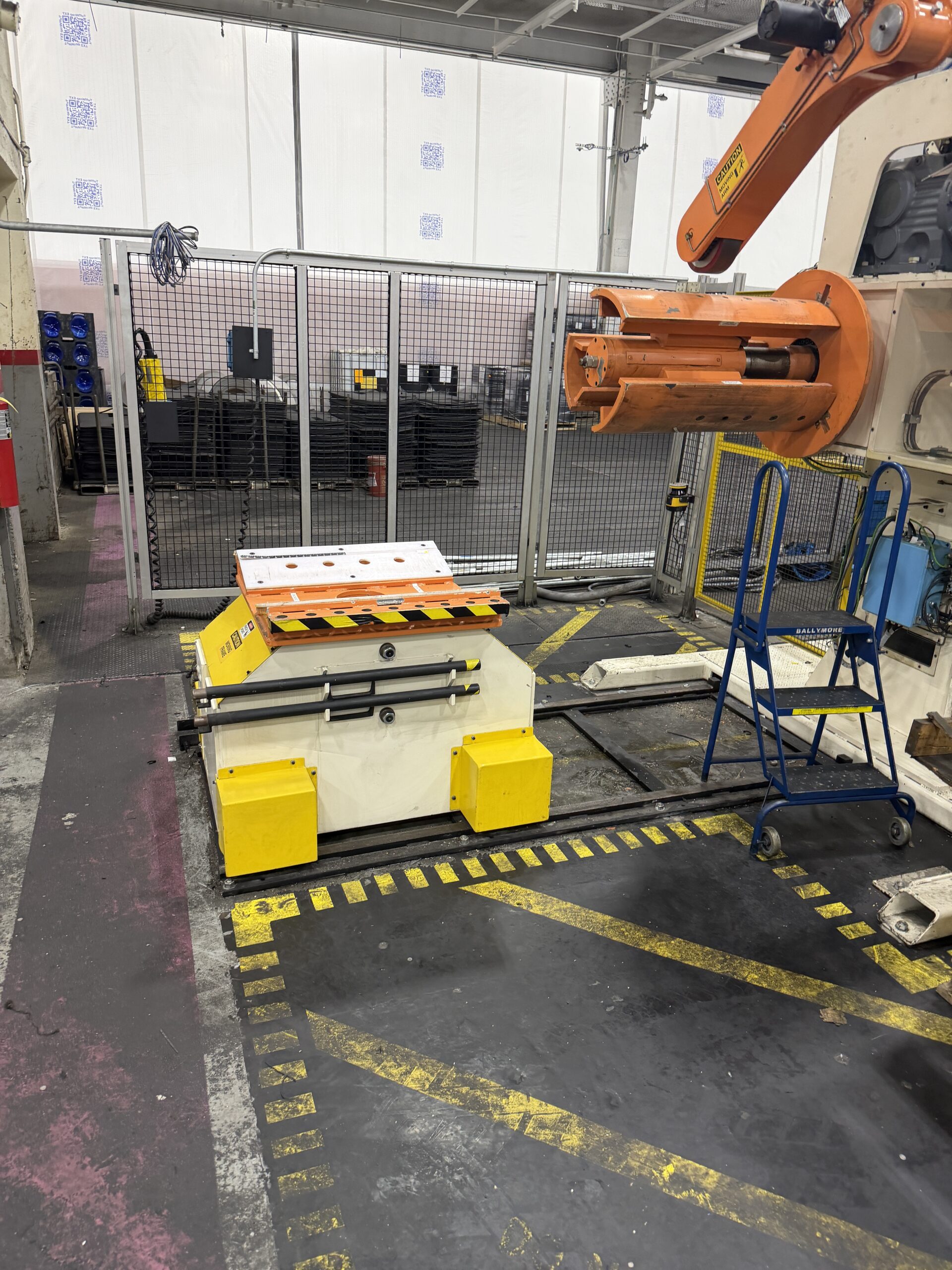

Heavy Duty Traveling Coil Car
Model: CKT-1200-30
Serial# 1181-141
Max Lift: 20″

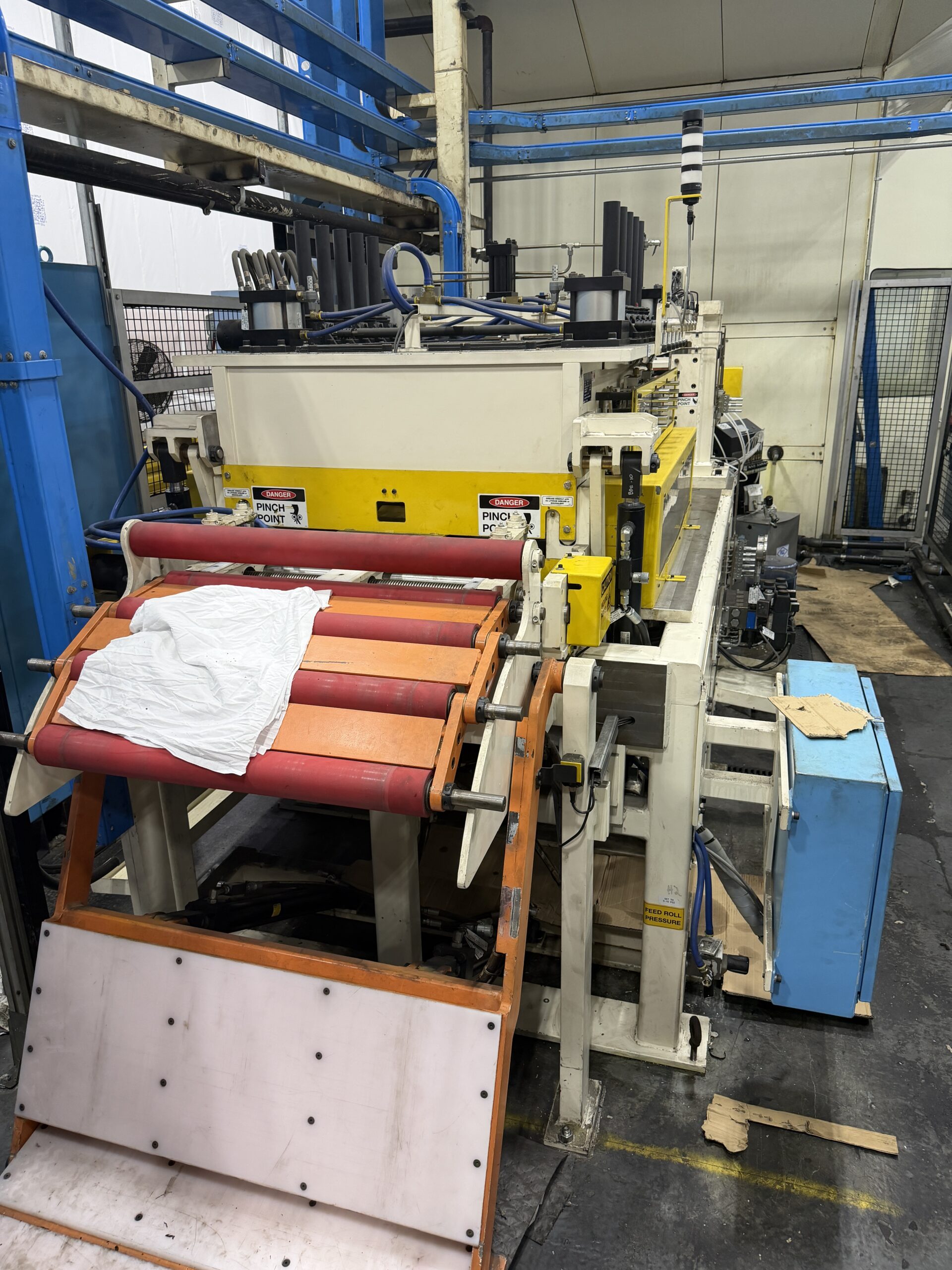

Pivot Style Threading Table
Model: CPTT-30
Extendable Peeler Blade

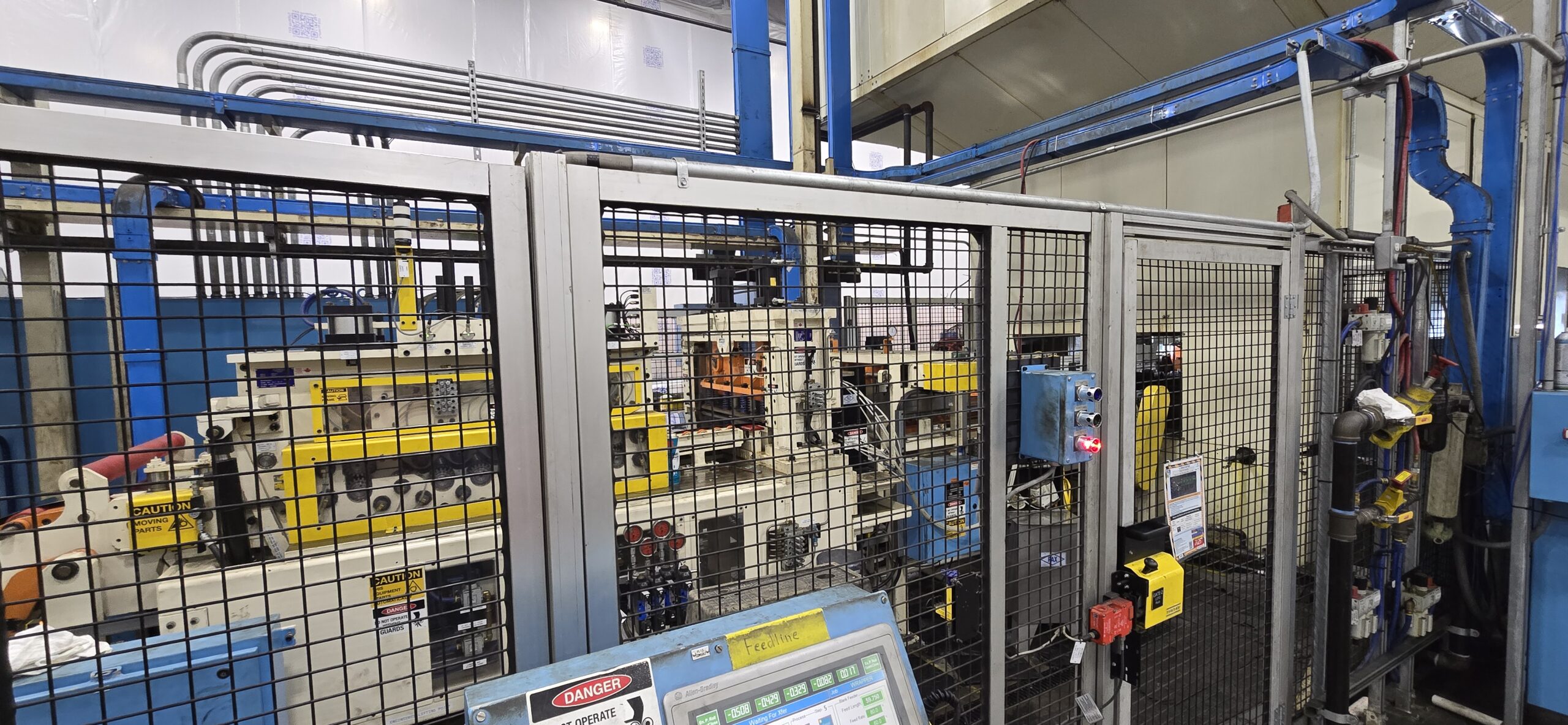

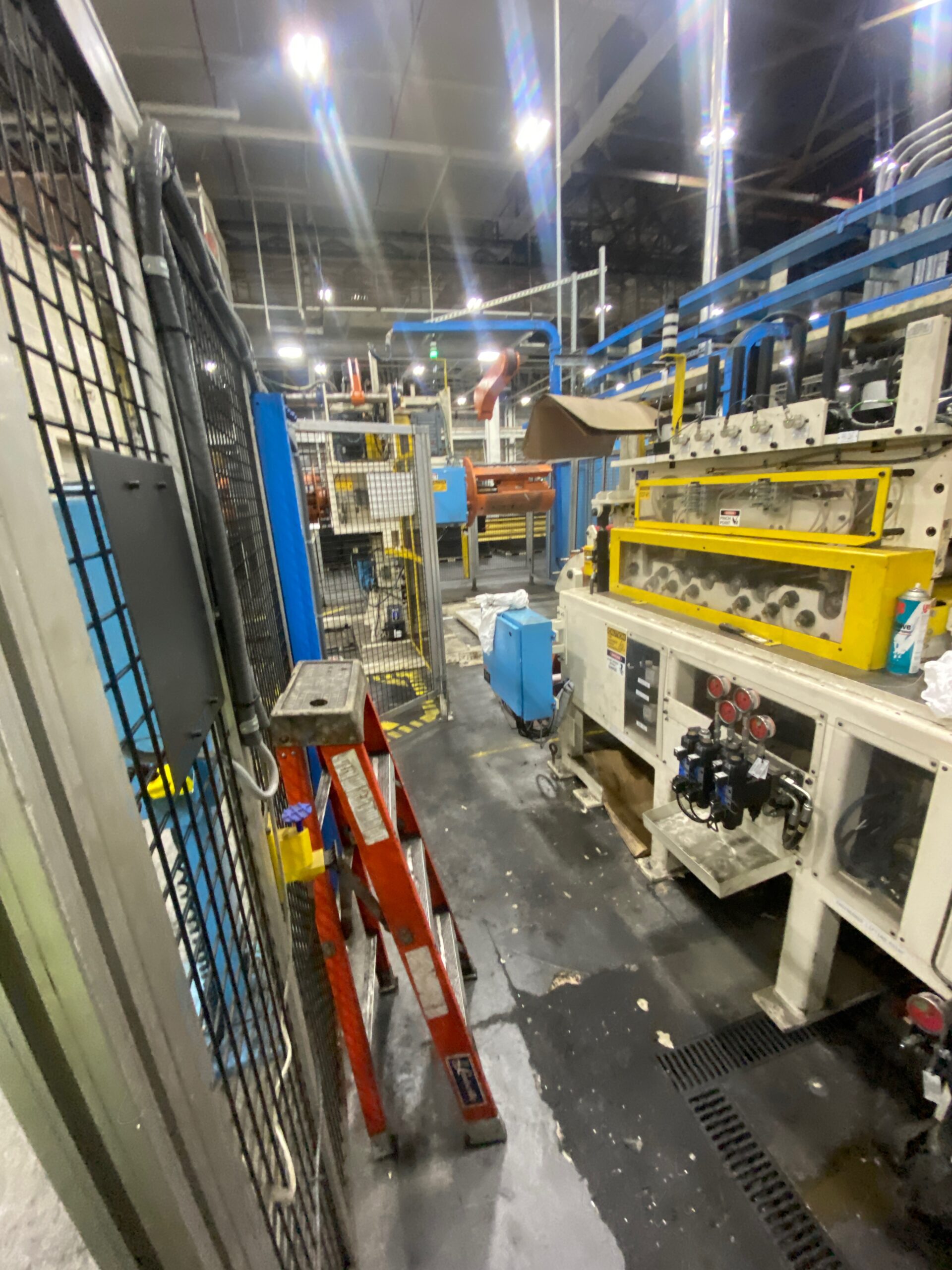

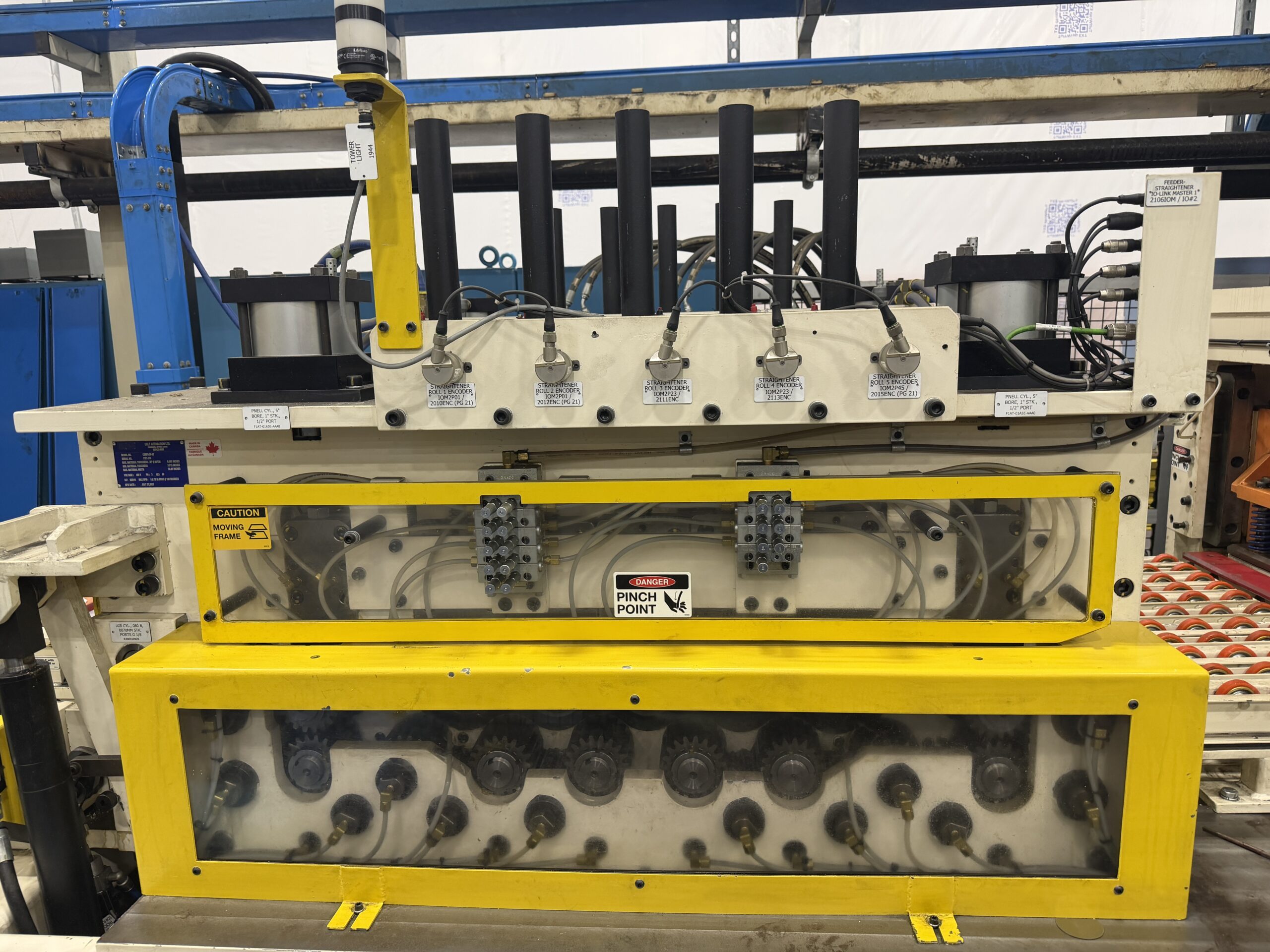

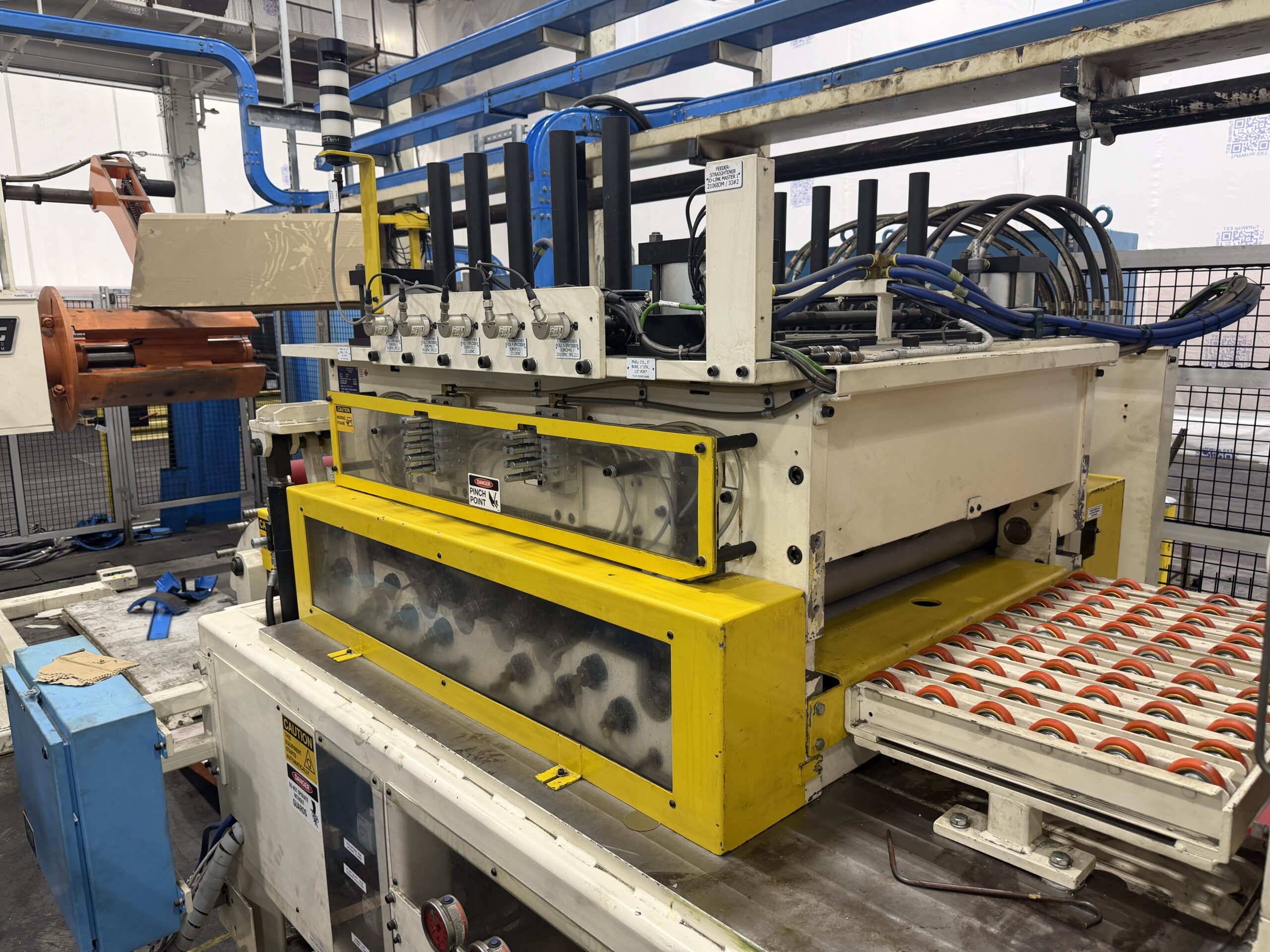

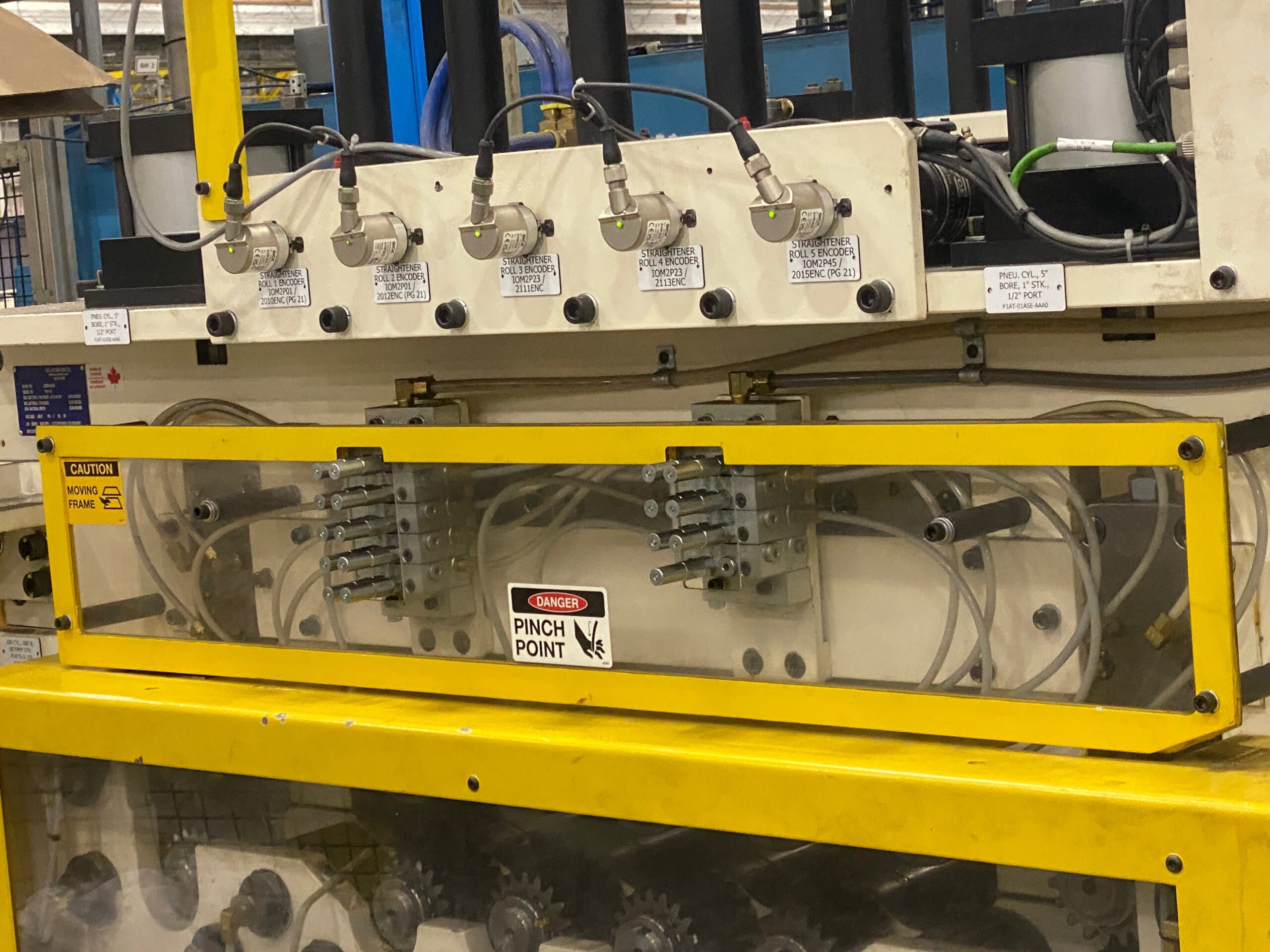

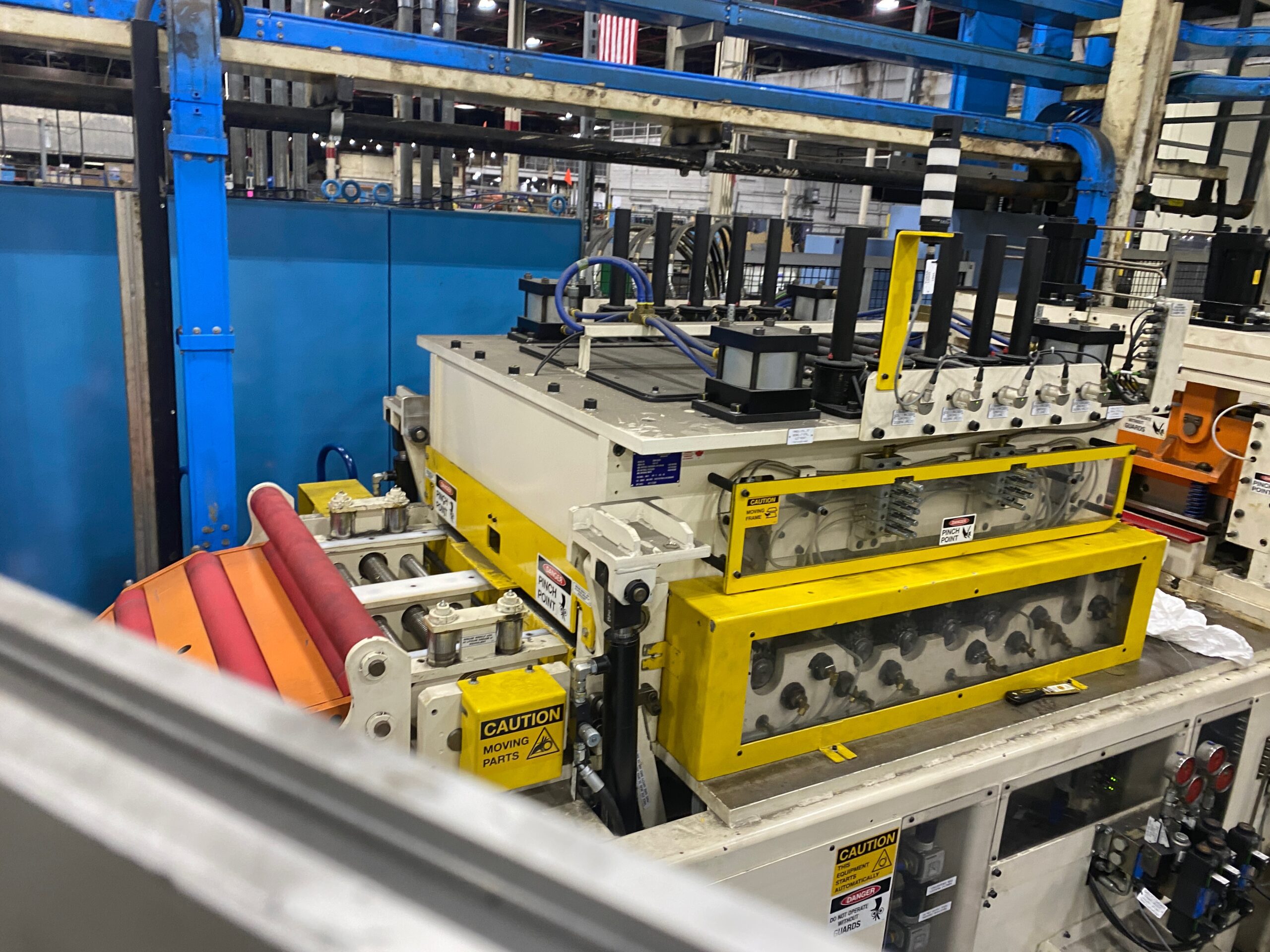

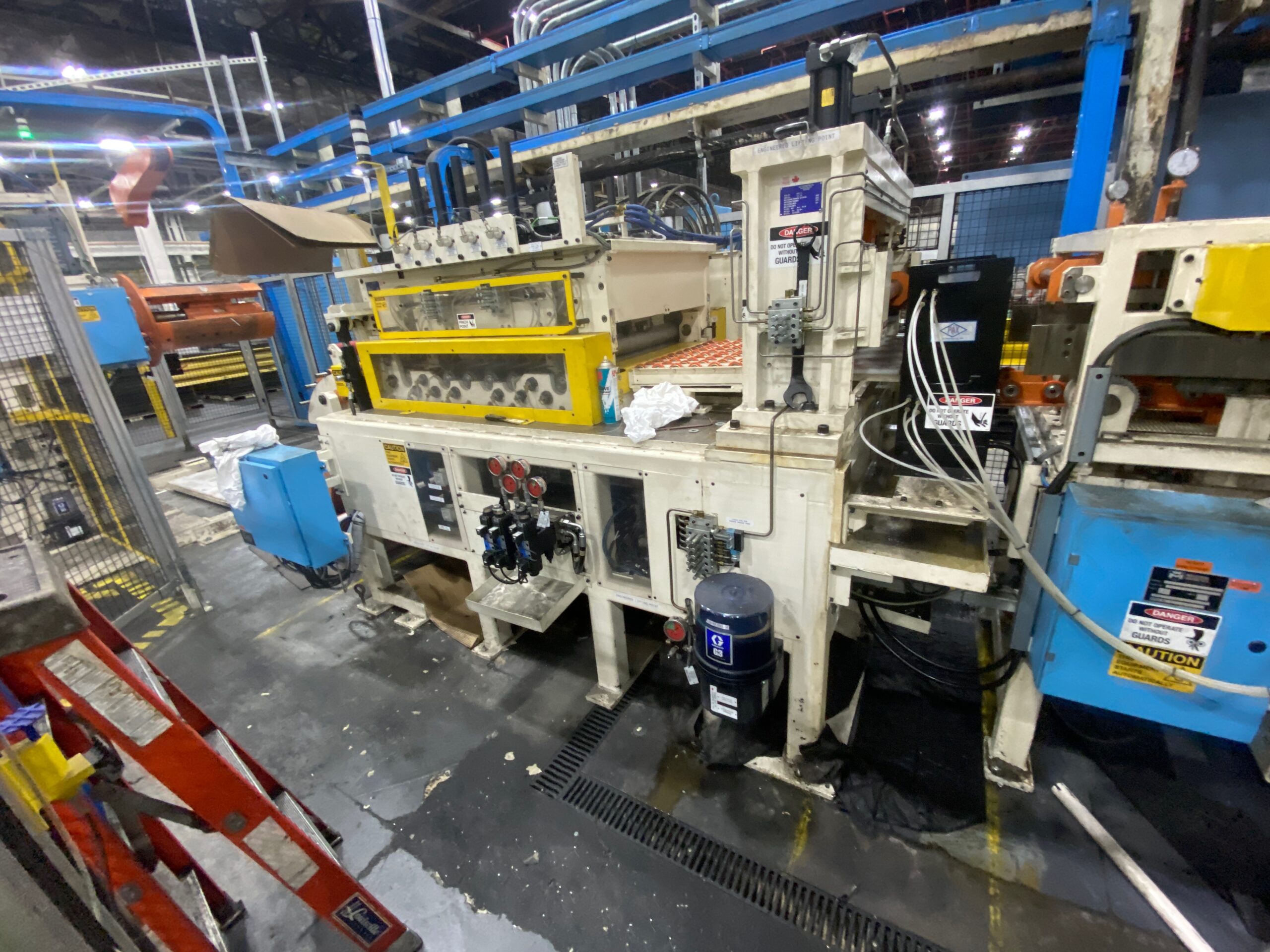

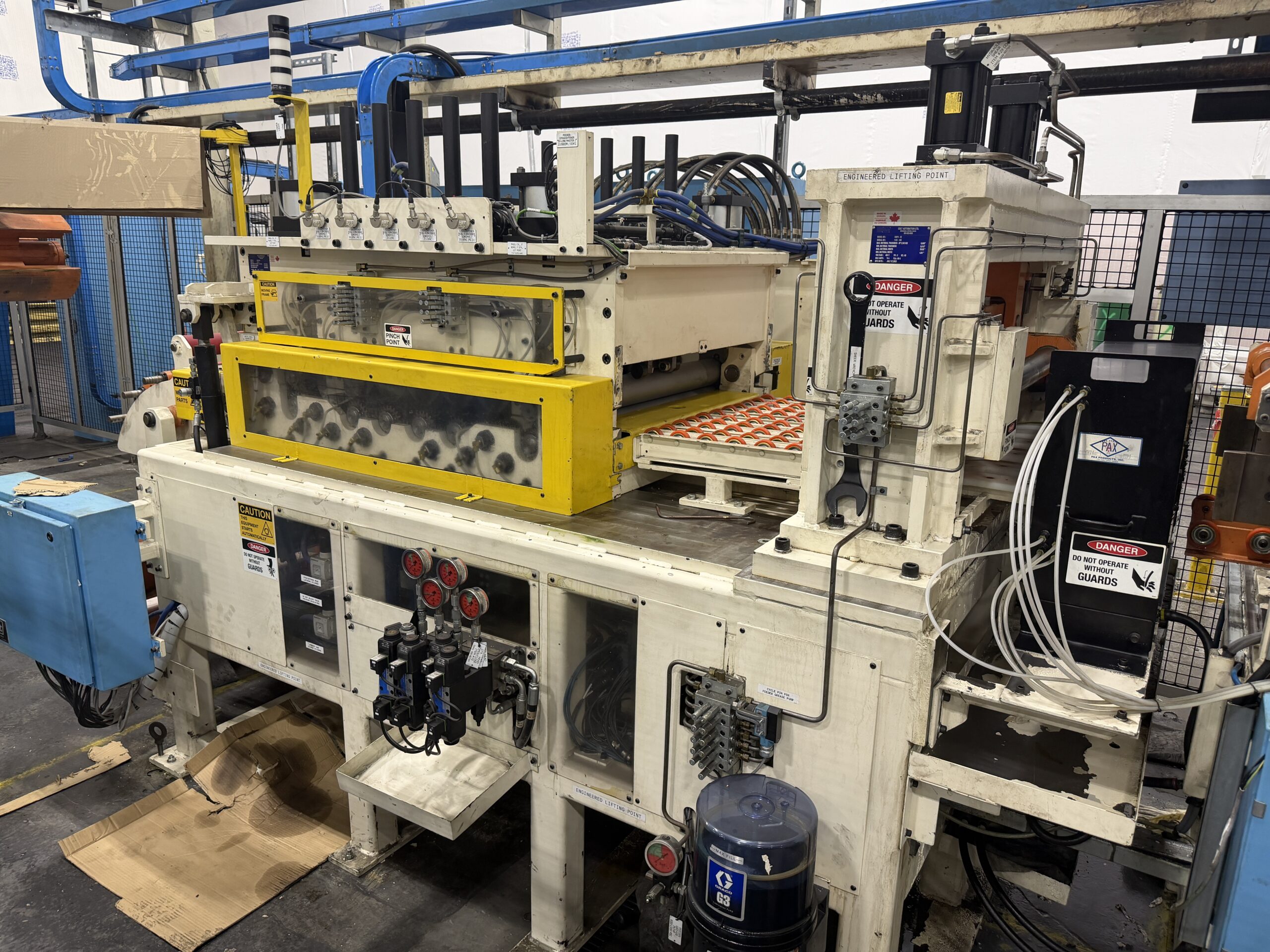

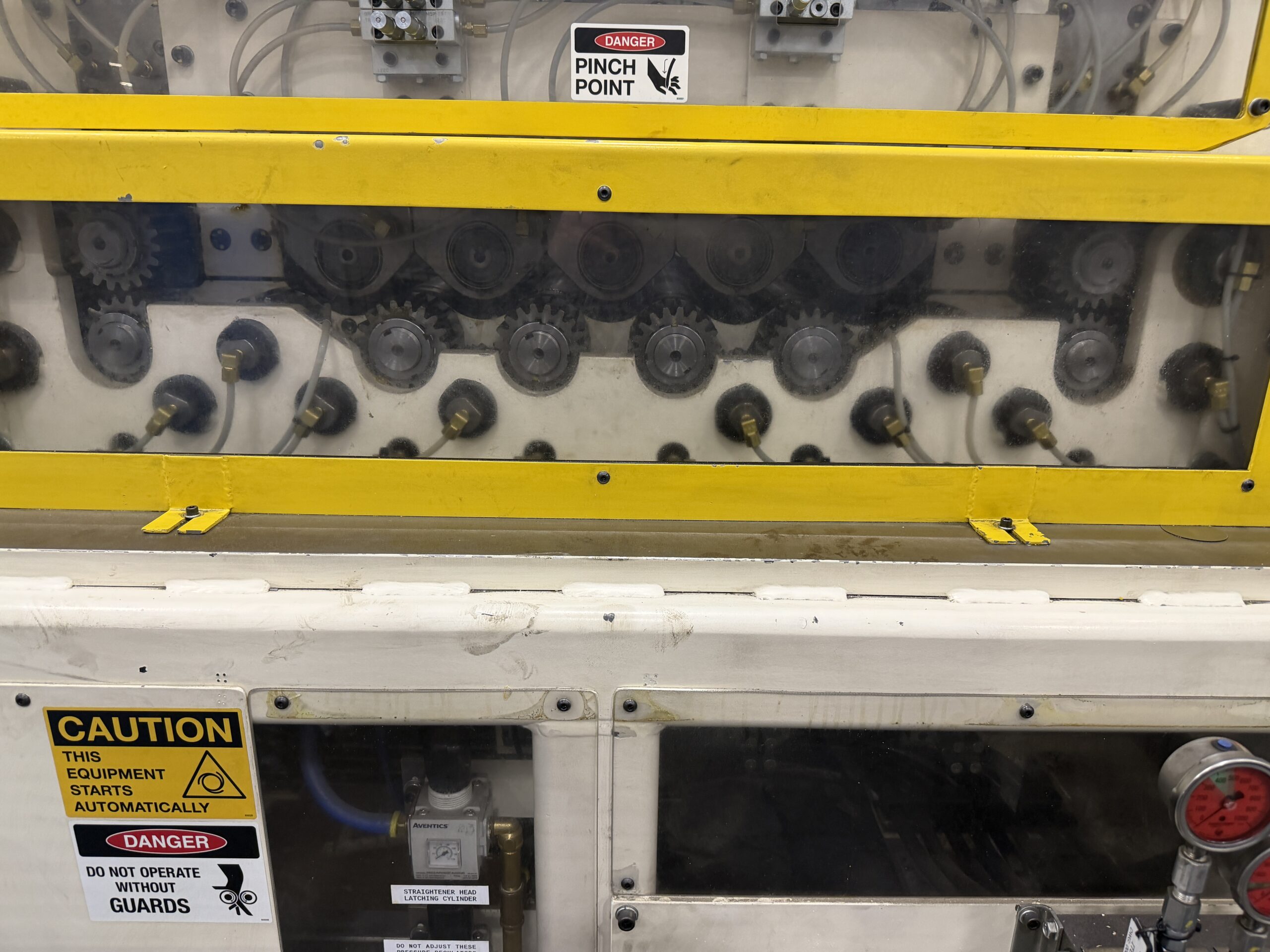

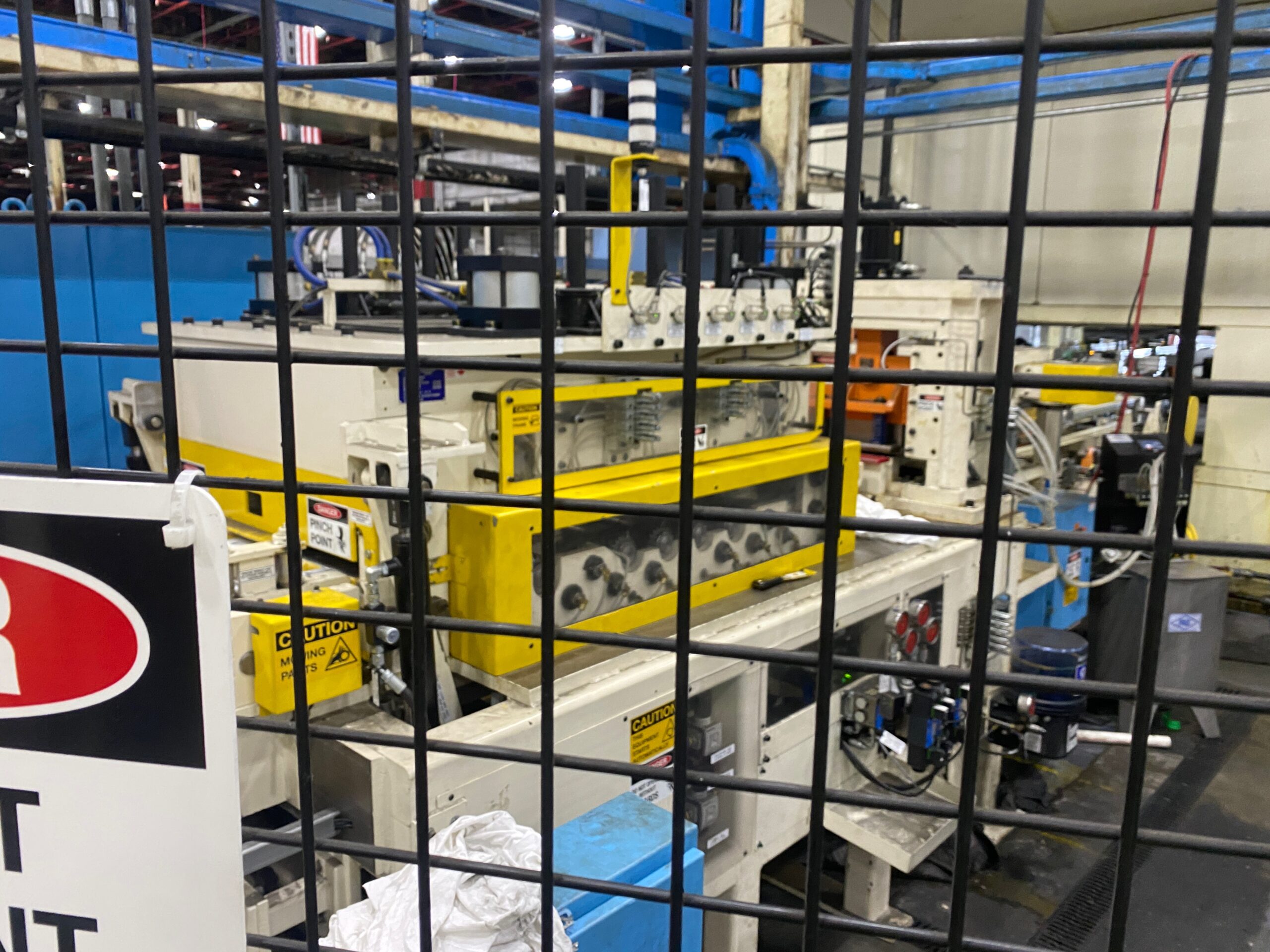

Medium Duty Feeder Straightener
Model: CERFS-35-30
Serial# 1181-114
Max Width: 30″
Max Thickness: .060″
Min Thickness: .015″
Max Speed: 110 FPM
Max Speed @ 180*: 30SPM @ 72″ Progression
Max Feed Length: .005″ to 999.999″
Accuracy: +/- .002″
Diameter of Pinch Rolls: 3.5″
Diameter of Straightener Rolls: 3.5″
Number of Straightener Rolls: 9
Satin Finish Feed Rolls
Chrome Finish Straightener Rolls
Back Up Rolls
Pilot Release
Alligator Head

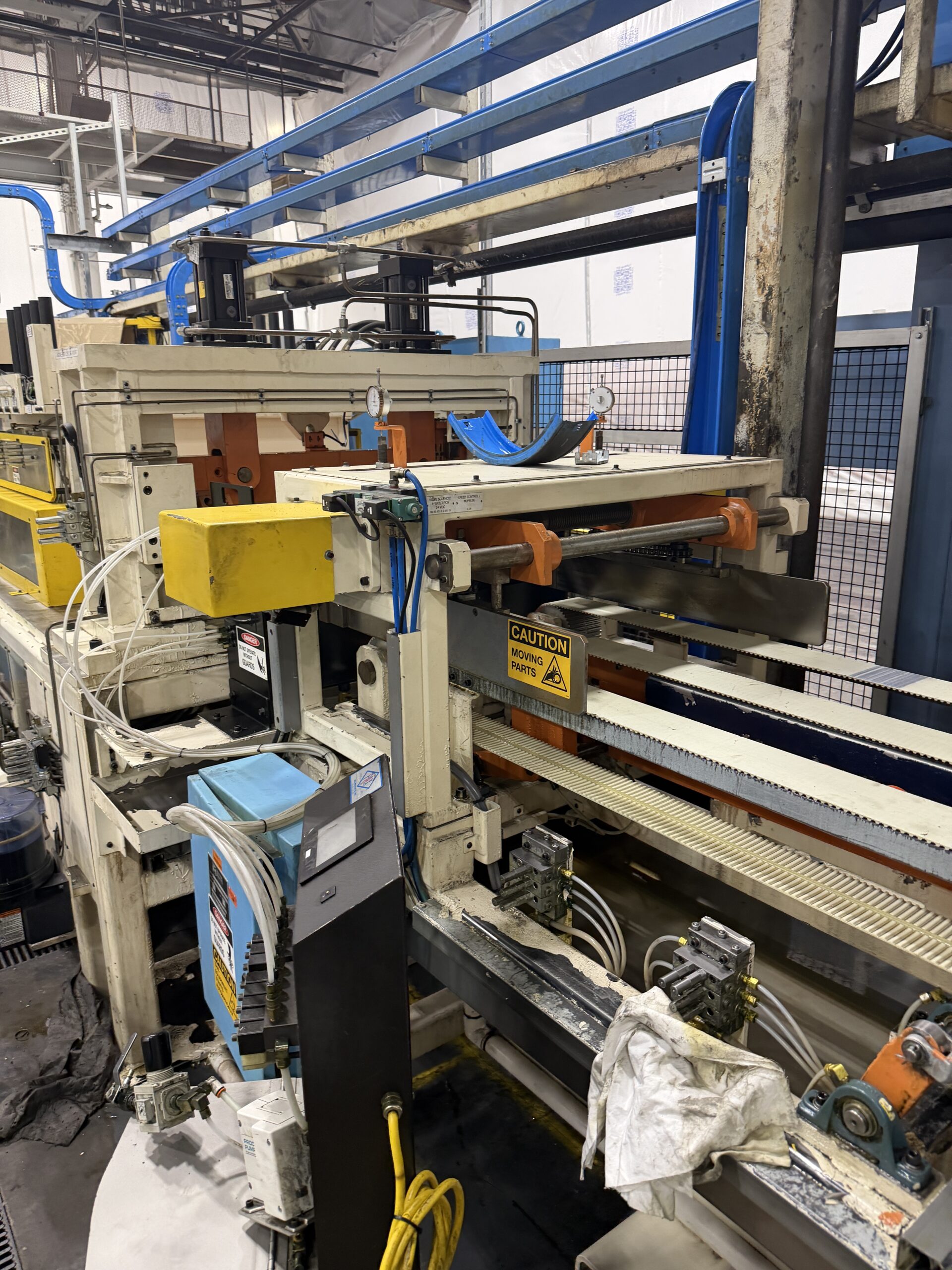

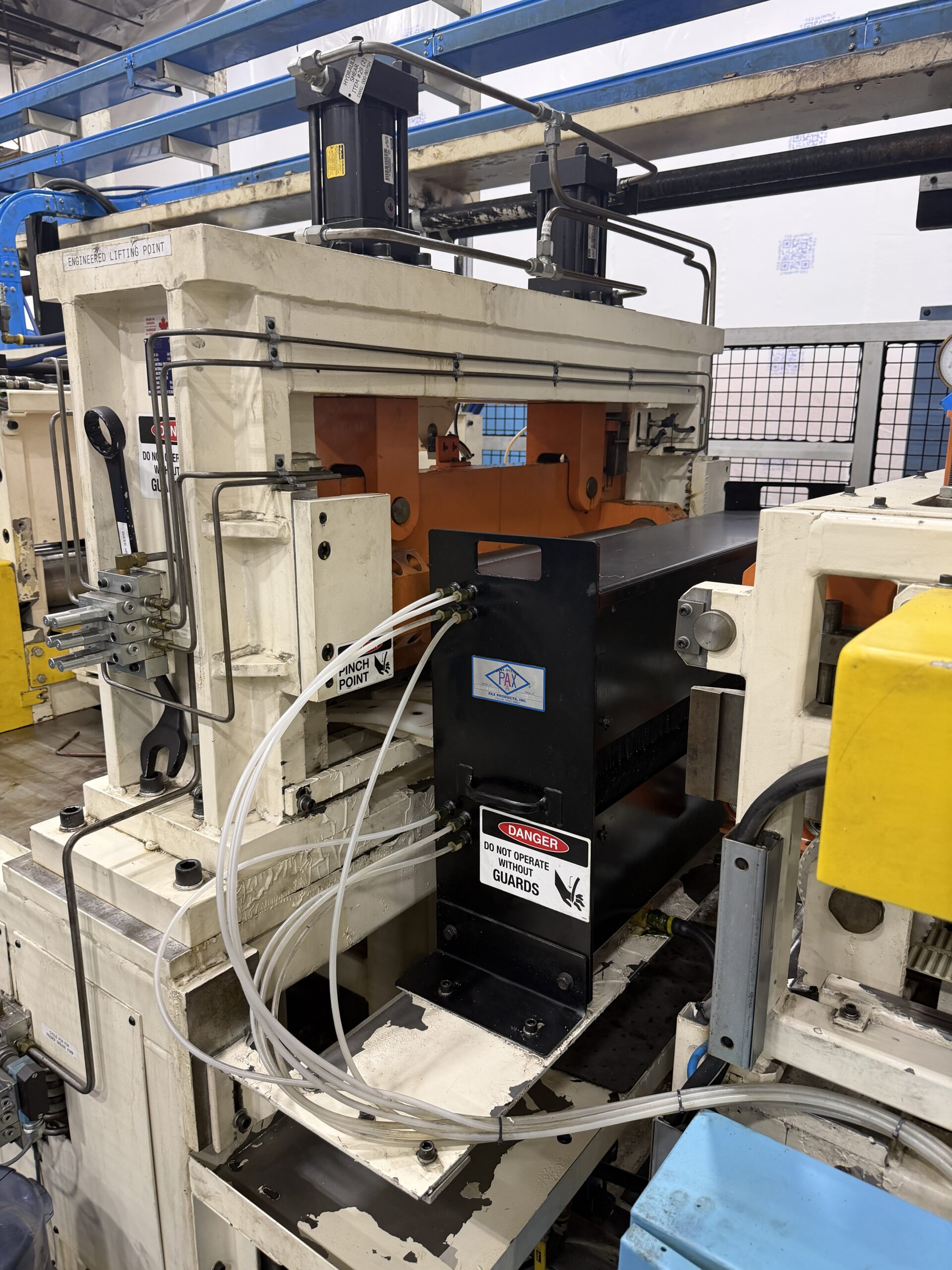

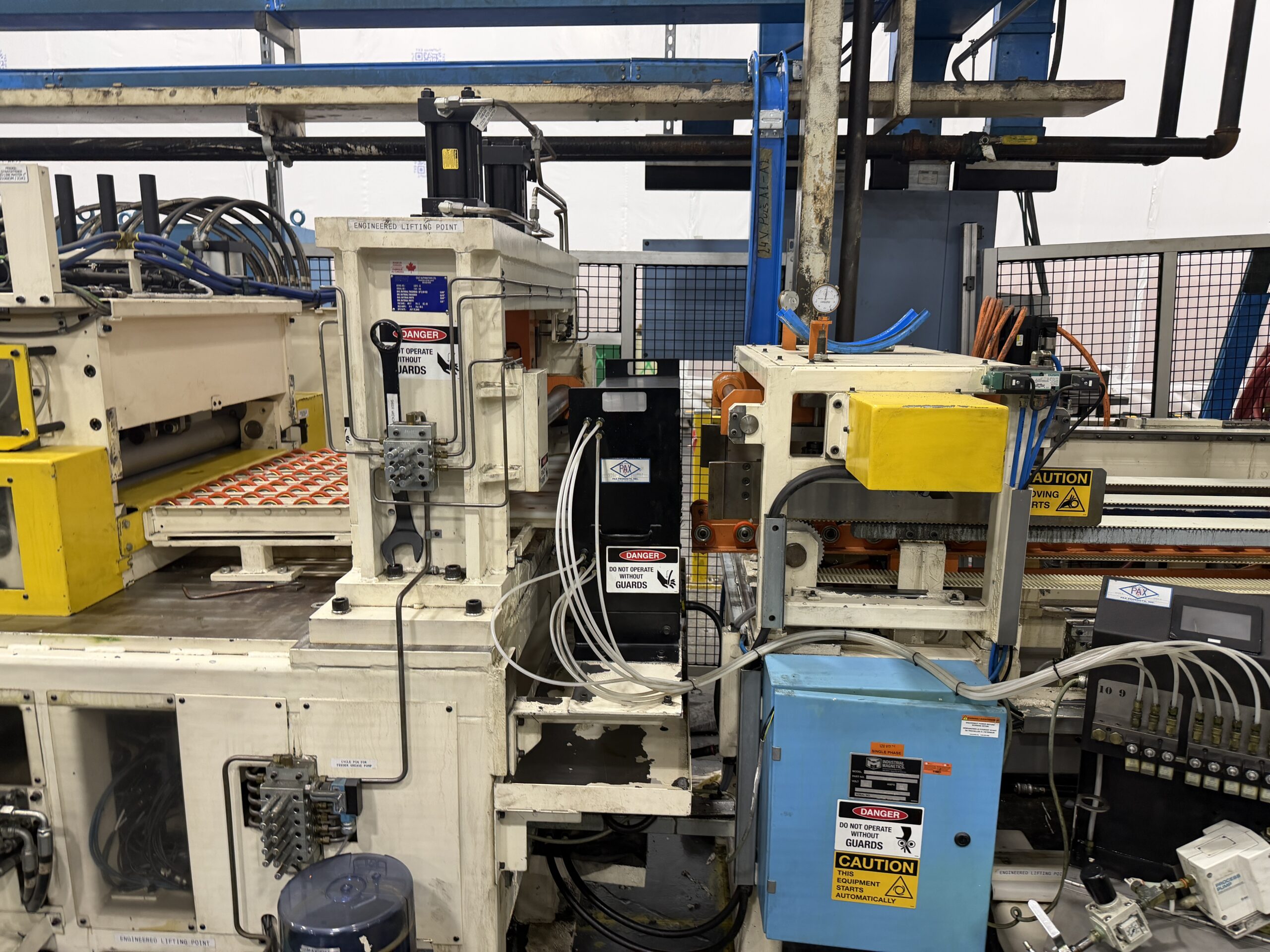

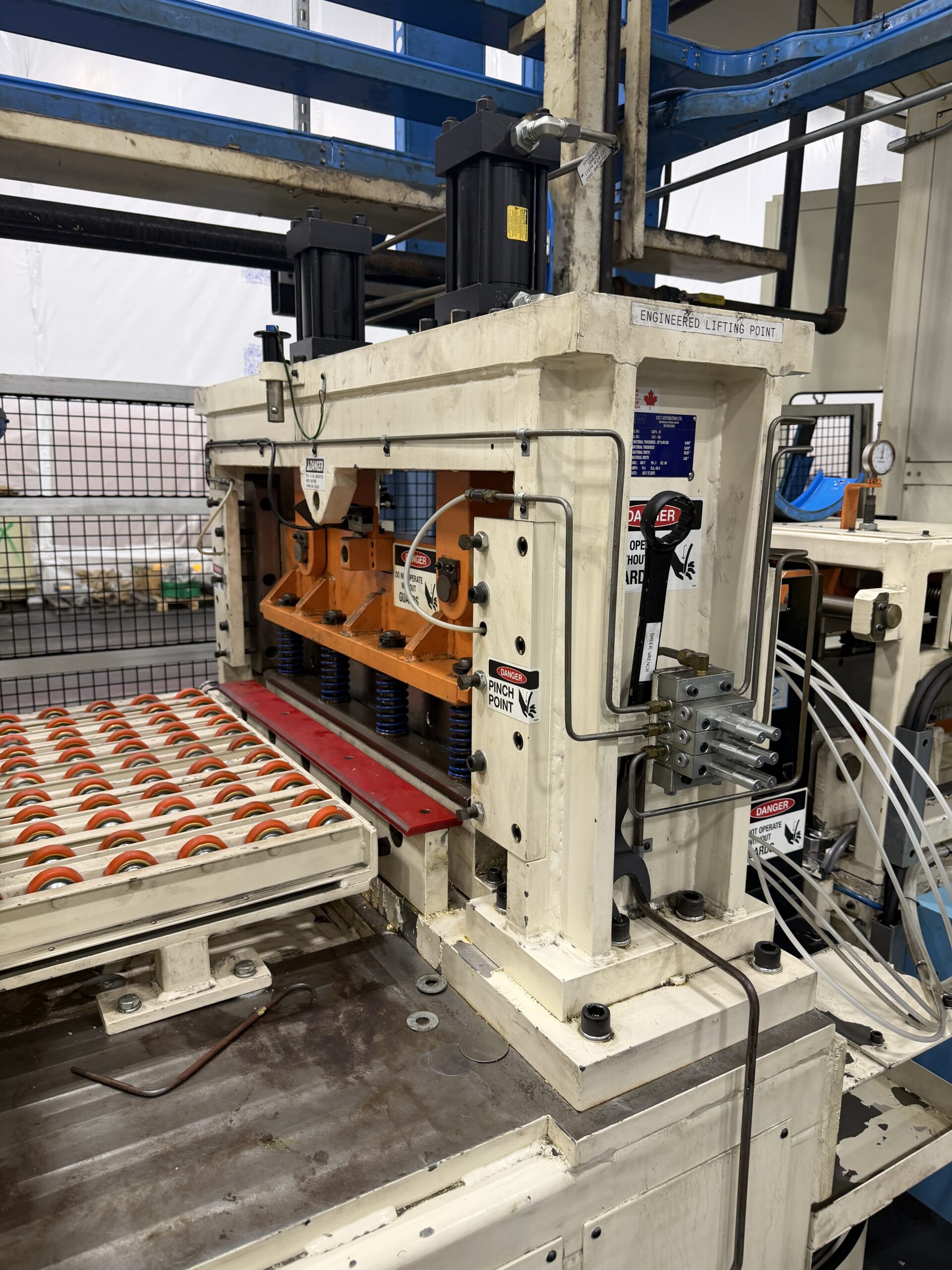

Medium Duty Production Shear
Model: CMPS-30
Serial# 1181-150
Max Thickness: .080″

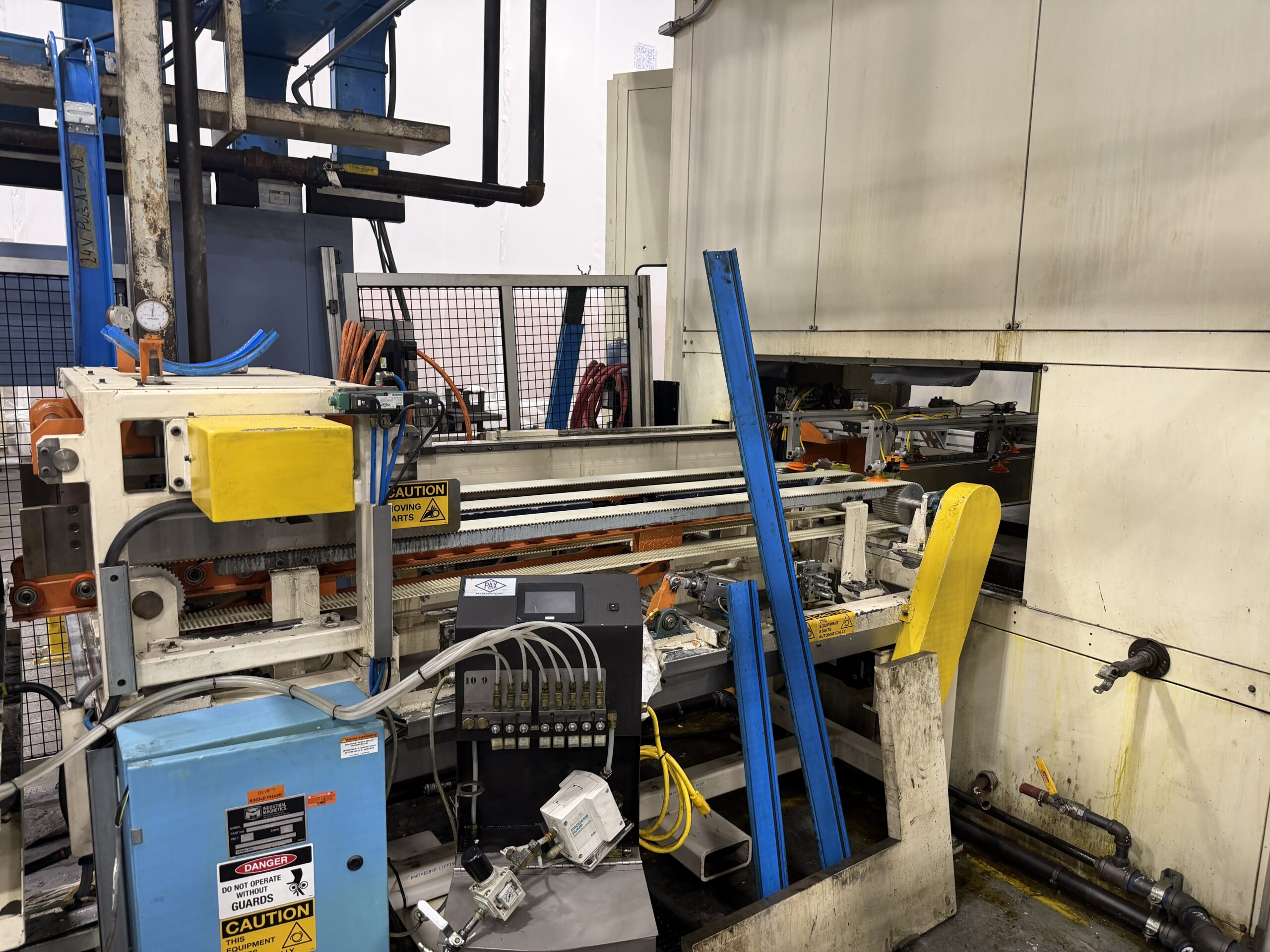

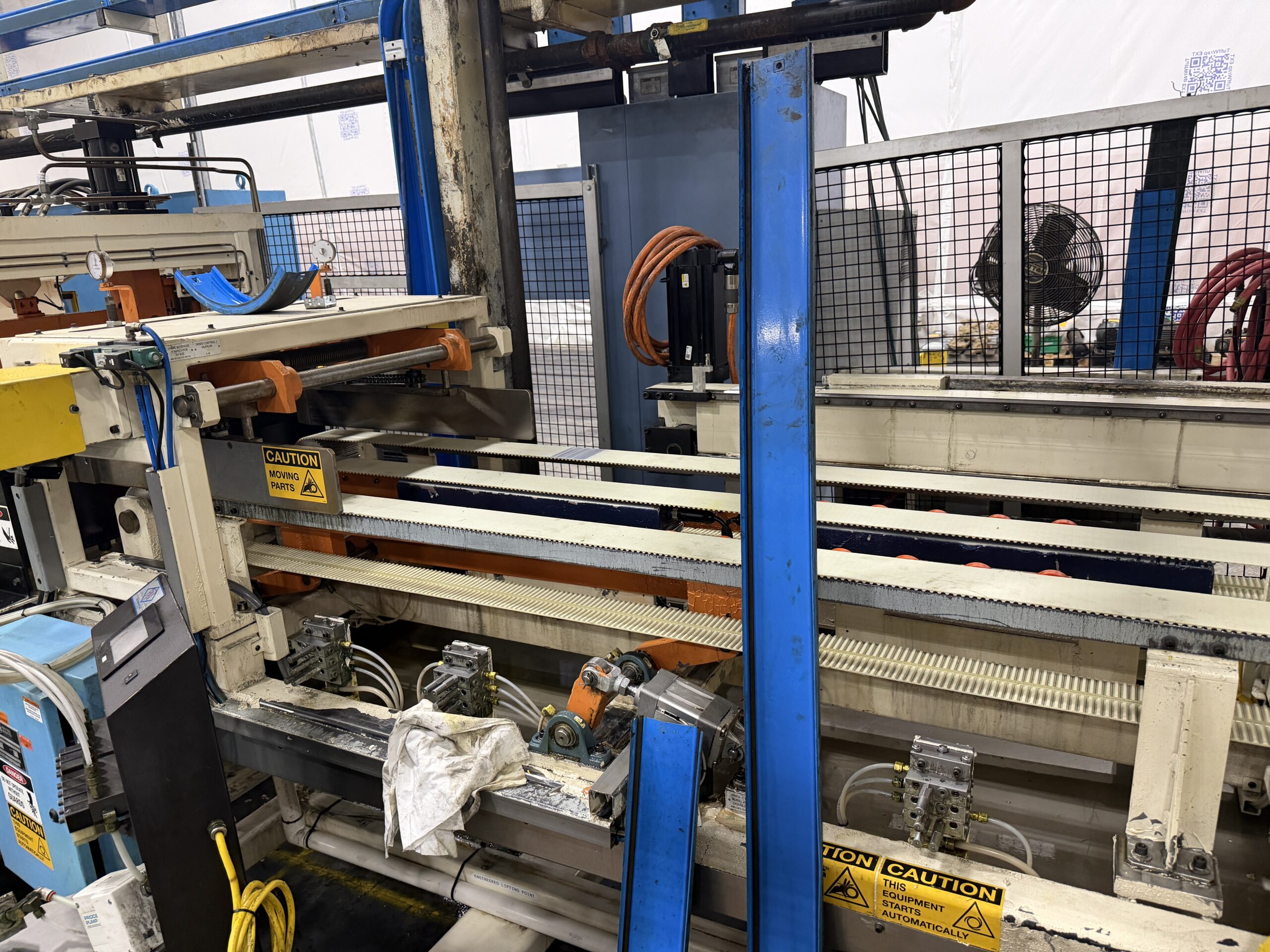

Medium Duty Micro Magnetic Feeder
Model: CMMSF-30
Serial# 1181-180
