Description

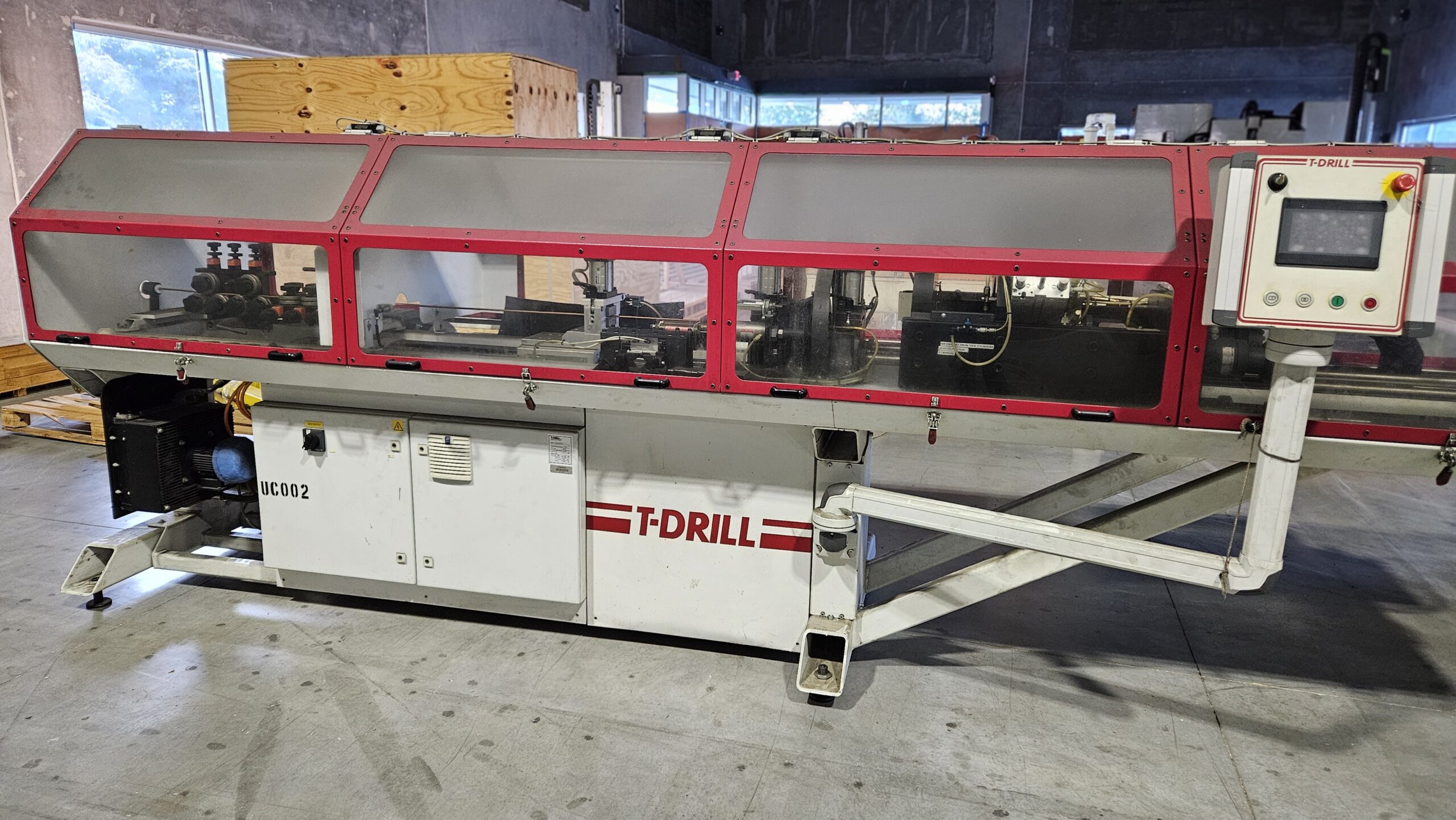

T-Drill Tube Cut Off and End Form
Model: TCC-45-EF3
Year: 2015
Tube Material: Copper, Aluminium, Steel
Max. Diameter Of The Tube To Be Cut: Copper, Aluminum: Ø 22 Mm | Ø 0.866’’
Steel: Ø 12,5 Mm | Ø 0.5’’
Diameter Of The Tube To Be Cut And Endformed: Copper, Aluminum: Ø6–22 Mm | Ø0.236-0.866’’
Steel: Ø6–16 Mm | Ø0.236” – 0.63
Diameter Of The Endformed Shape: Max. Ø 30 Mm | Ø 1.18”
Tube LengthsWith Simultaneous Cutting And Endforming: 40–915 Mm | 1.57’’ – 36”
Endforming Before Cutting: 915–6,000 Mm | 36” – 236”
Wall Thickness: Copper, Aluminum: 0,.4–1,5 Mm | 0.02” – 0.06’’
Steel: 0,4–1 Mm | 0.02” – 0.04′
Compressed Air Supply: 6 Bar = 600 Kpa | 87 Psi
Air Consumption: ~ 650 L/Min
