Description

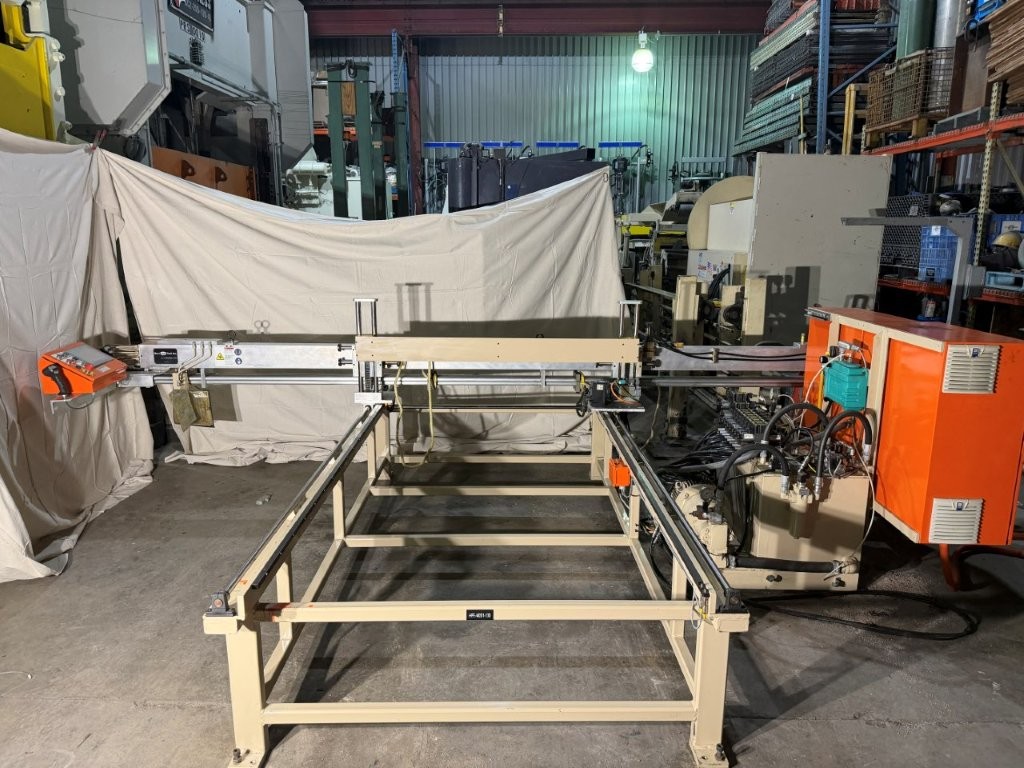

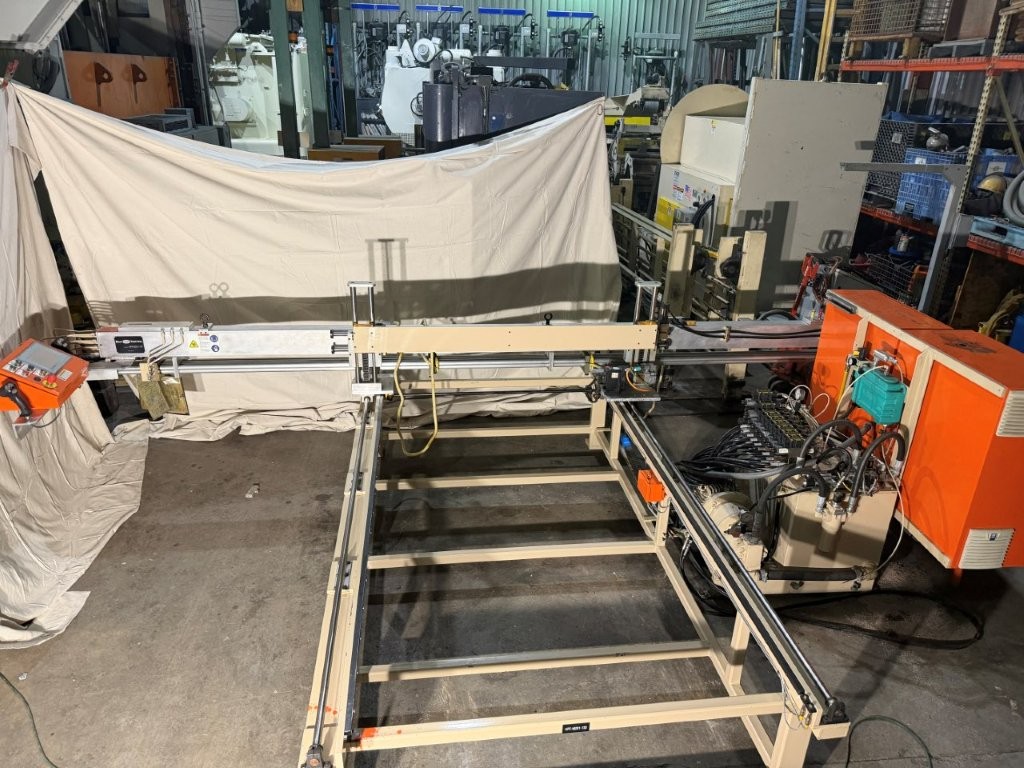

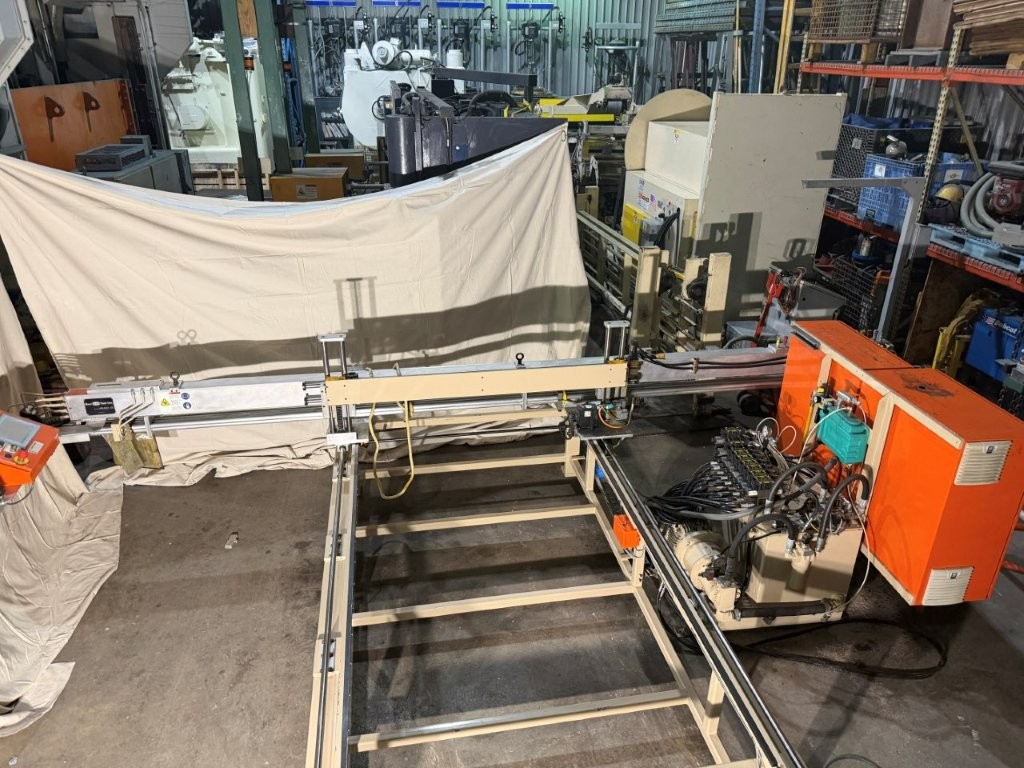

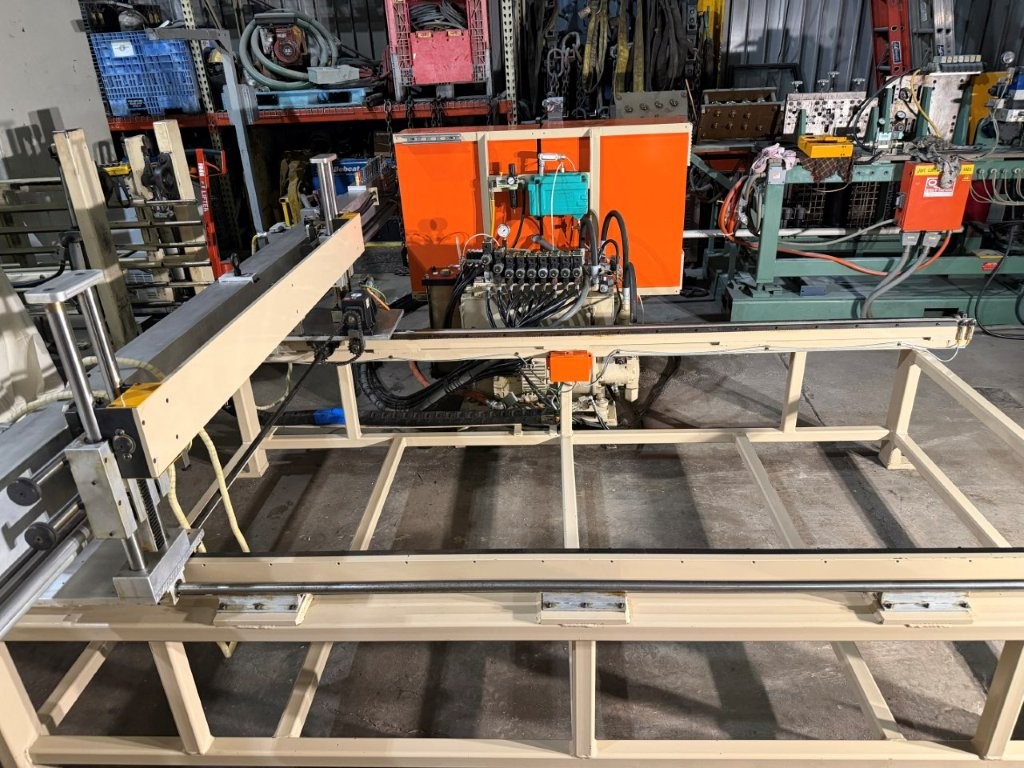

Burr Oak Horizontal Progressive Expander
Model: HPE-M
Year: 2013
Specifications:

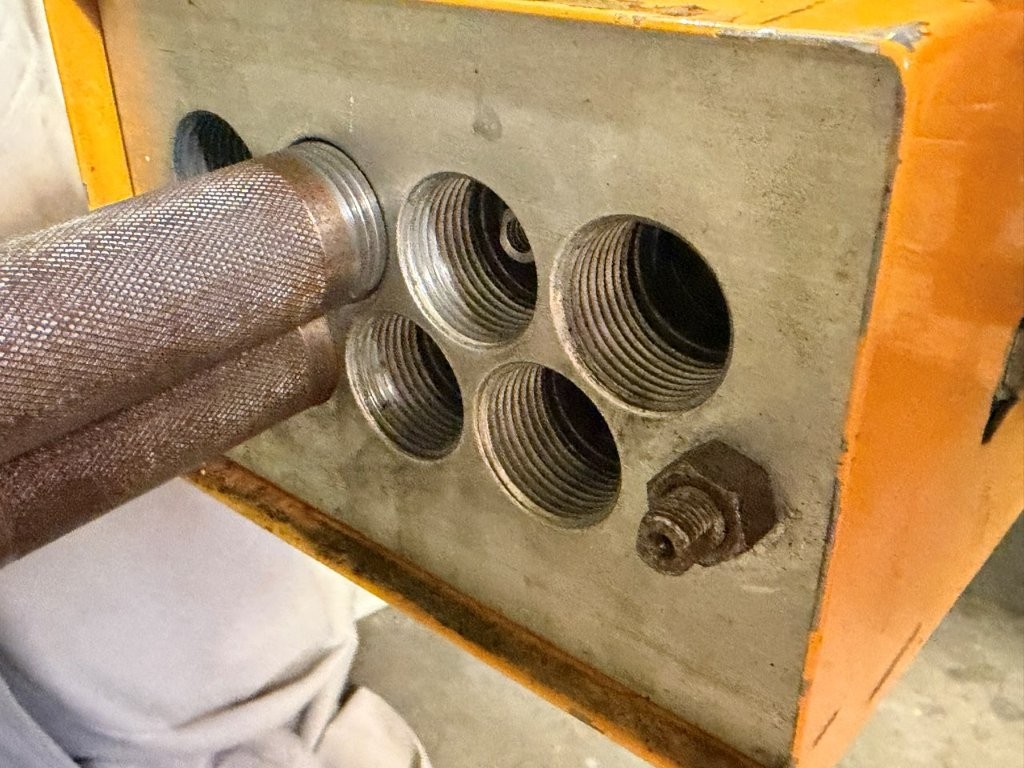

Number Of Cylinder Assemblies: 1
Number Of Cylinders: 7
Tube Pattern : 1/2″ – 1.250″ X 1.082″
Tube Wall Thickness: .500 X .016, .025 Smooth, .020 Rifled
Cylinder Bore: 0.75
Cylinder Rod: 0.375
Maximum Coil Length : 168″
Average Expansion Speed: 100ft/Min
Number Of Manuals: 2
Operating Pressure: 1200 Psi

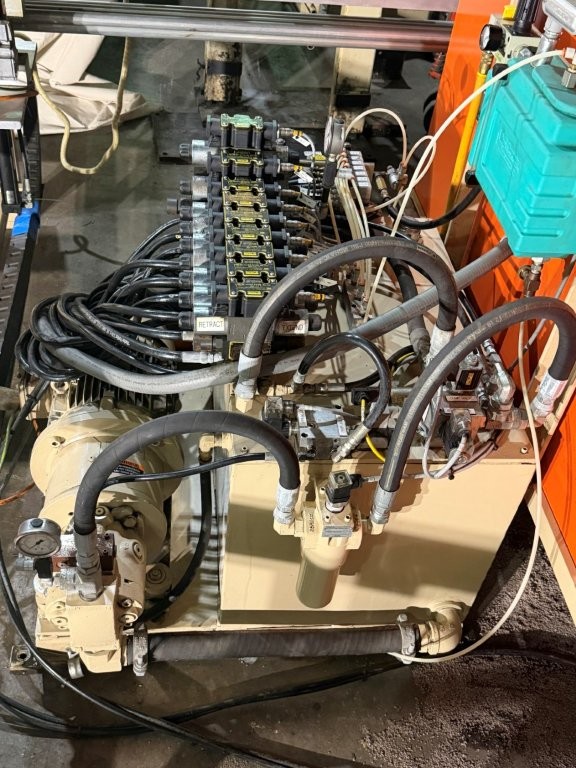

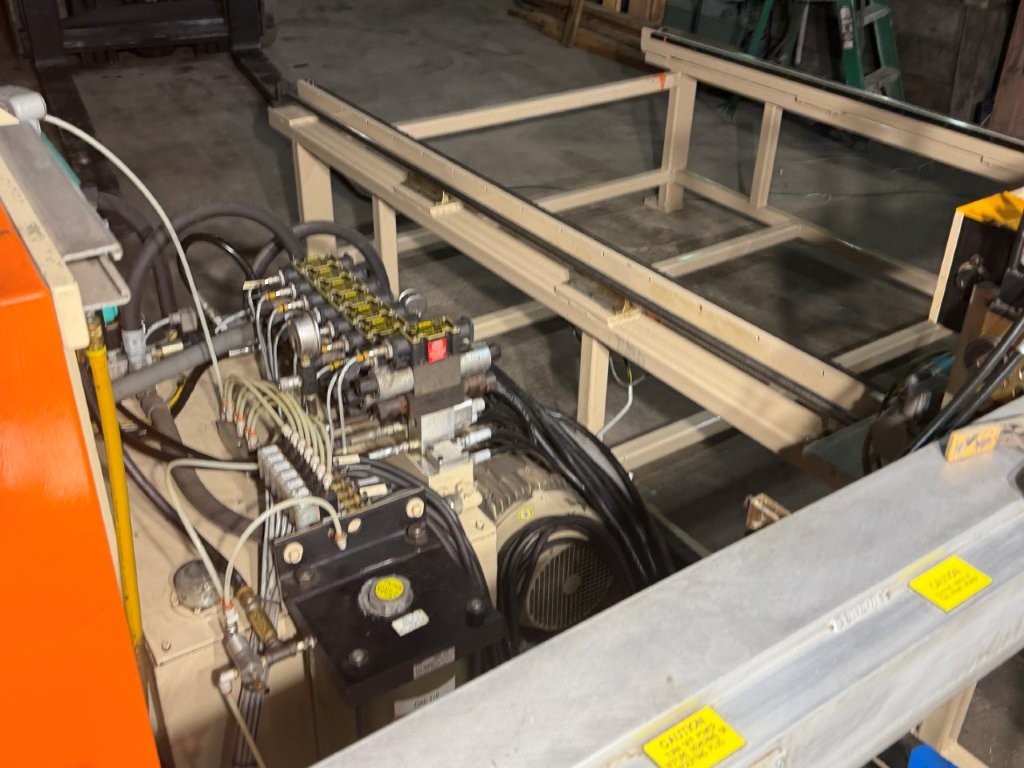

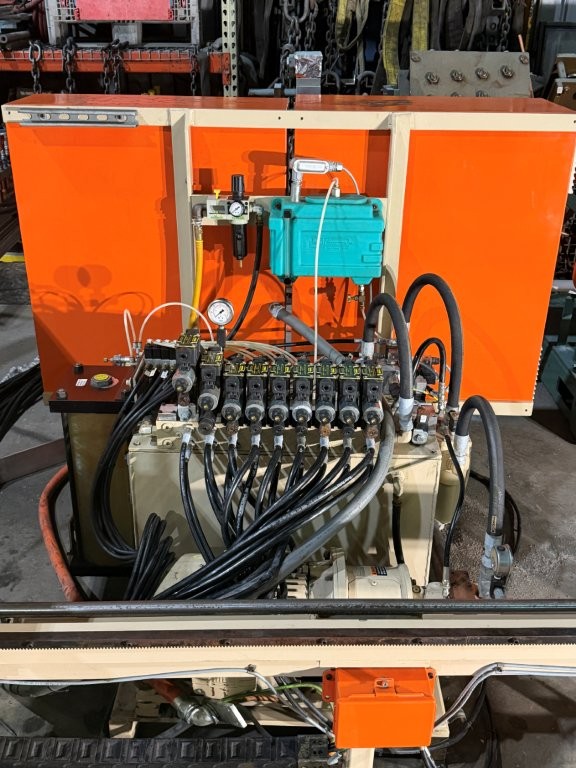

Hydraulic Tank: 40 Gal
Pump: 28 Cc (13 Gpm)
Motor: 10 Hp
Options:
Bell & Trim Tool
Hydraulic Collet Locking Option
Auto Tube Lubrication

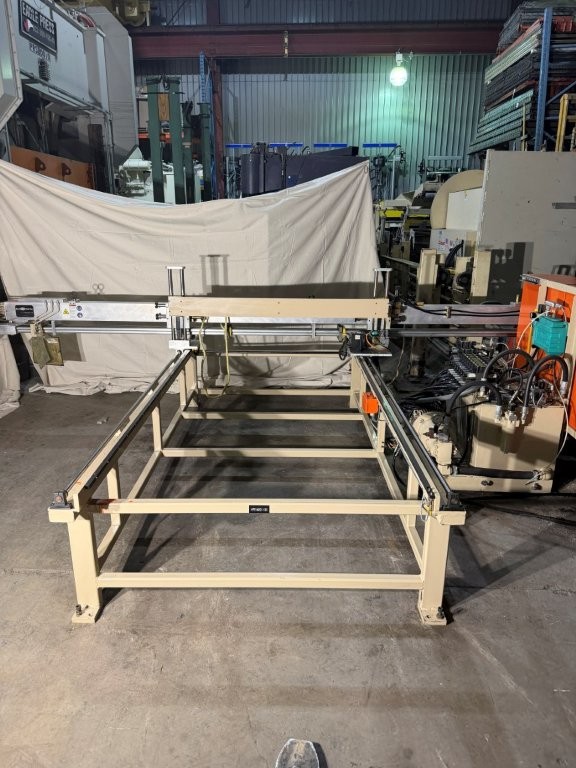

Expander Support Table (96 Inch)
Nonstandard Paint Color
Technical Manuals
Ergonomic Handle Position

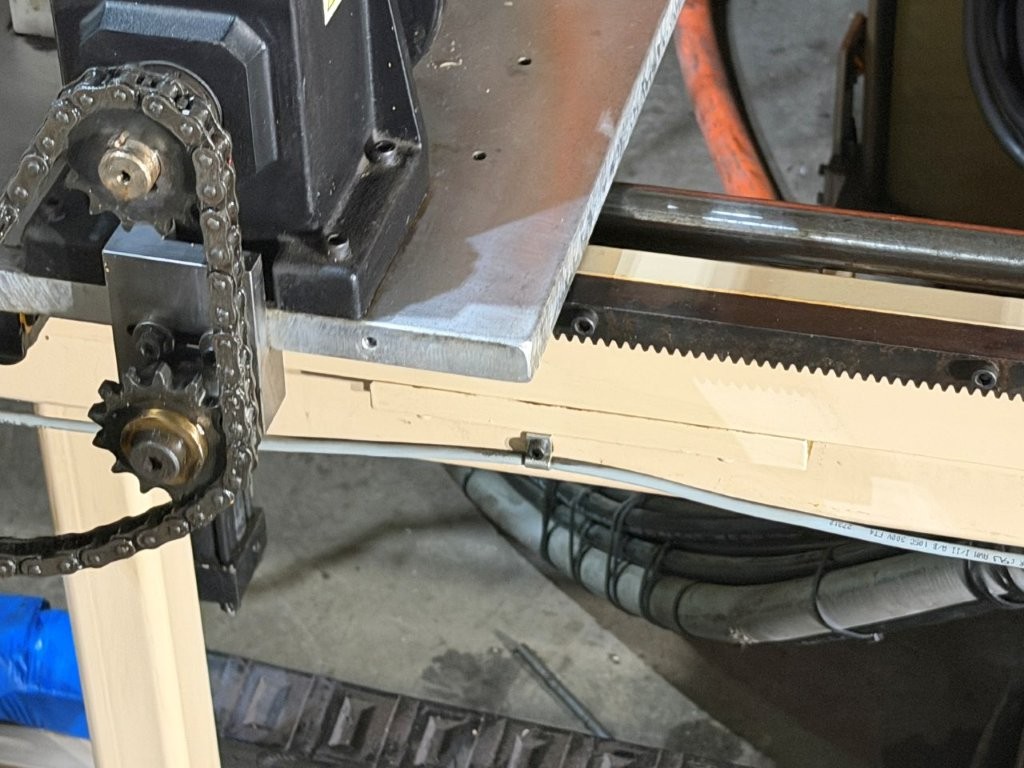

Horizontal Indexing Capability

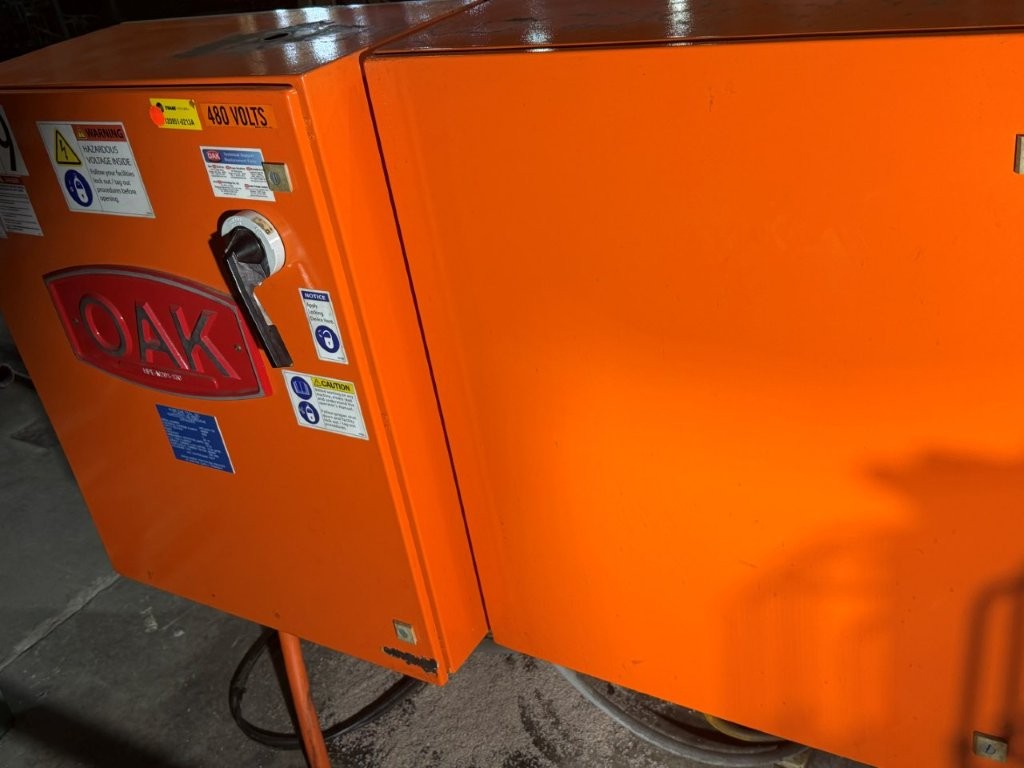

Power: 440 V, 3 Ph, 60 Hz

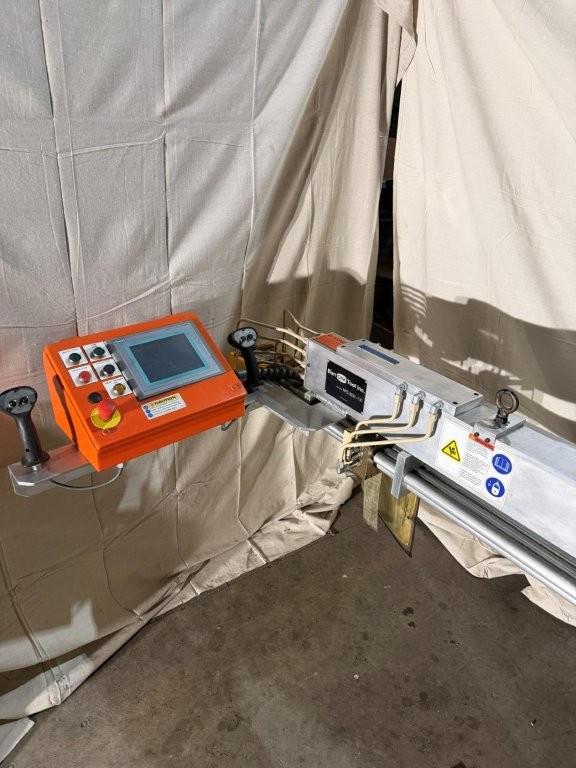

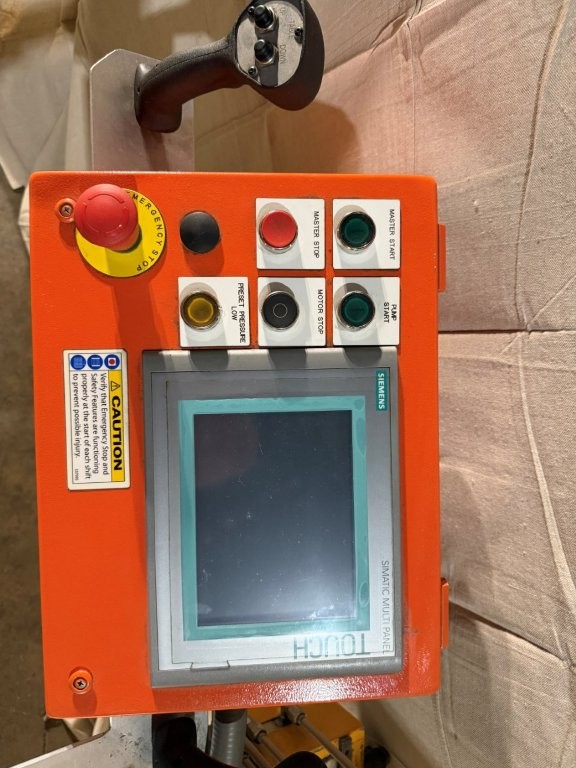

Control: 24 Vdc
