Description

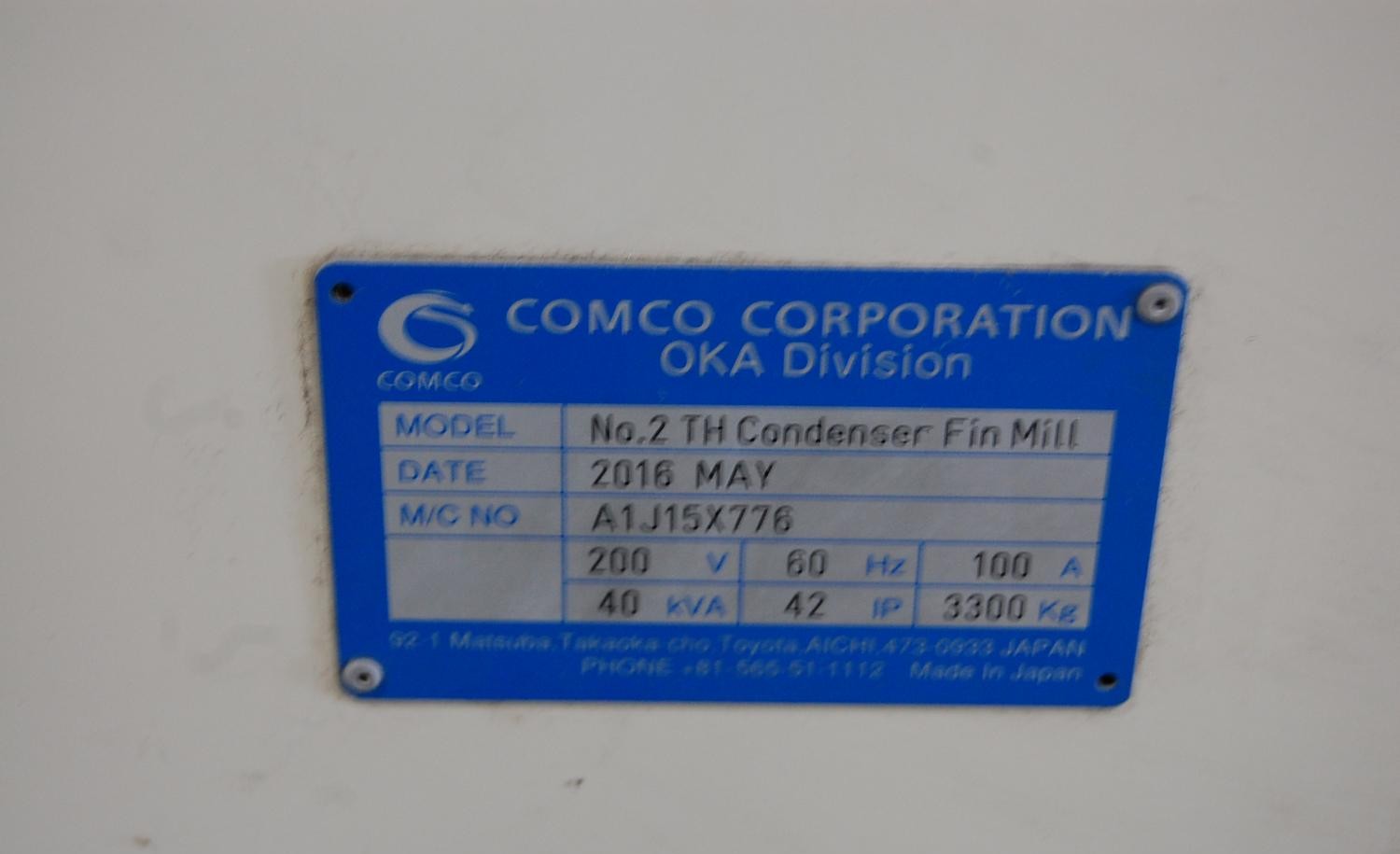

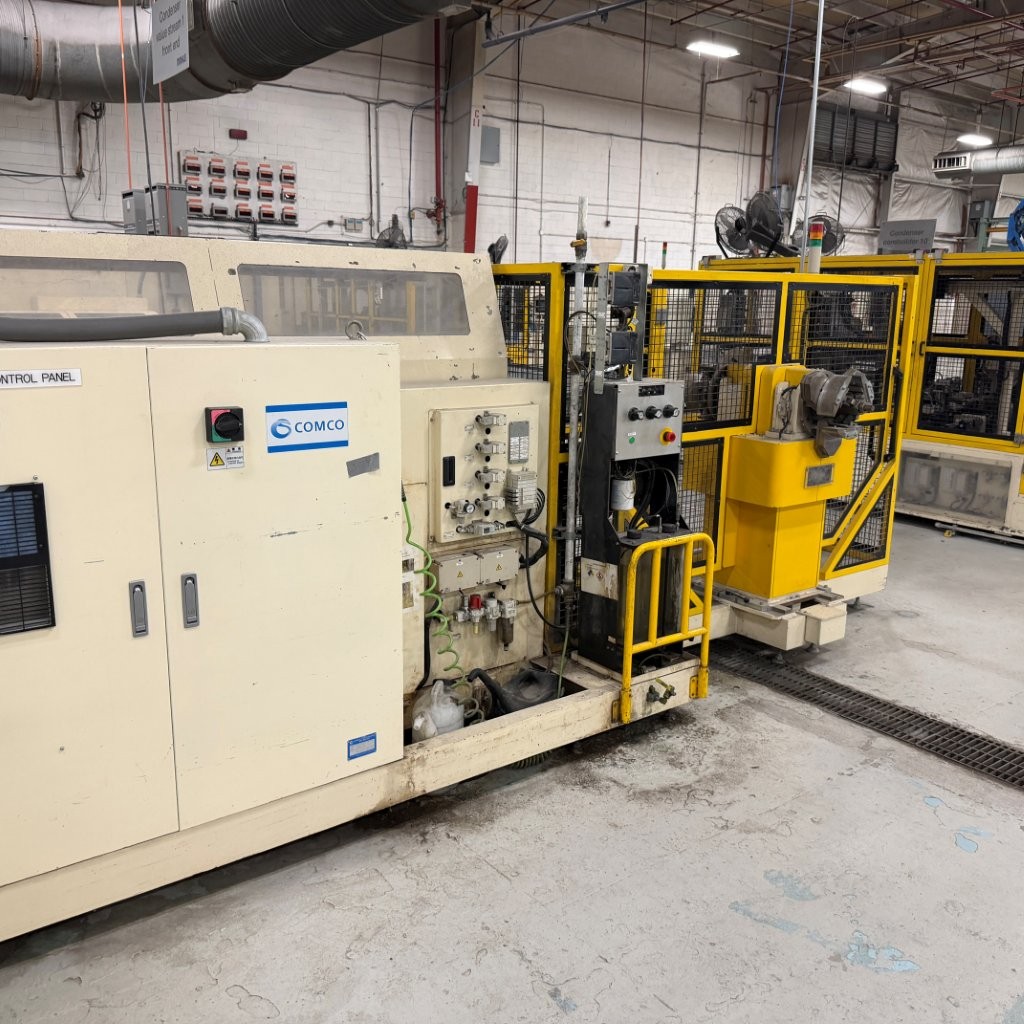

Comco/OKA Fin Mill and Core Builder
Year: 2016
Specifications:
Fin Mill
Max Input Speed Of Material: 400 M/Min
Max Cut Off Rate: 15 Cuts/Min
Max Strip Width: 60 Mm
Core Builder
Max Production Rate: 60-80 Cores/Hour
Core Thickness: 12 mm
Tube Pitch: 8.4 mm
Core width: 400-800 mm
Core Height: 250-550 mm
Fin Dimension: W12
Tube Dimension: W12

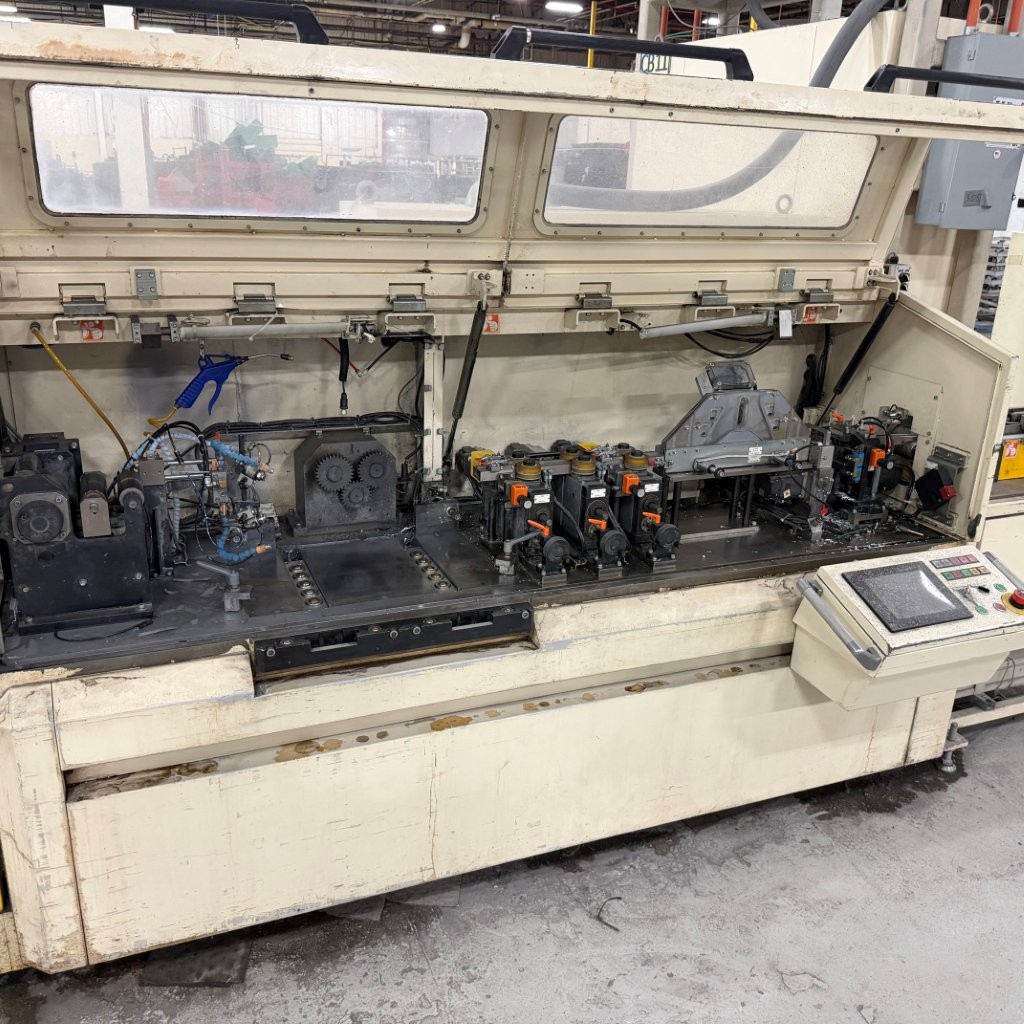

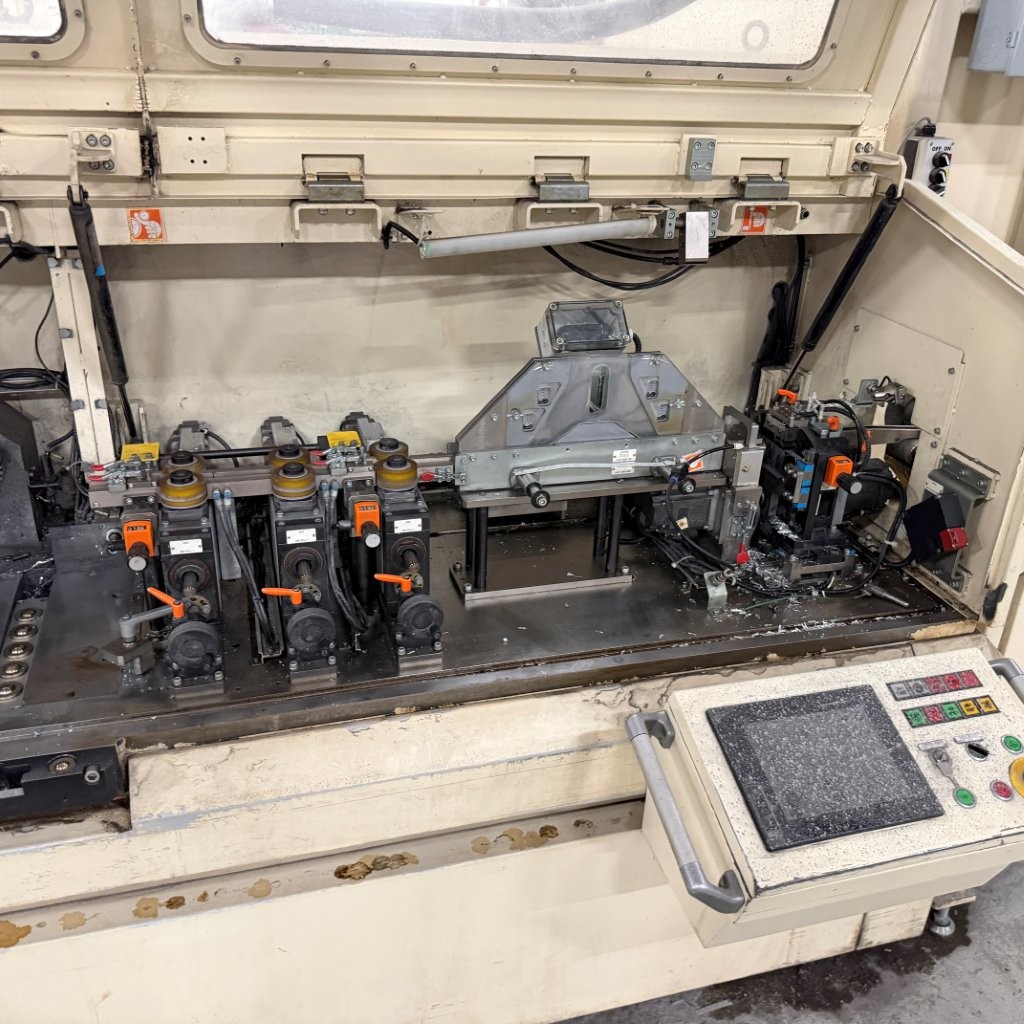

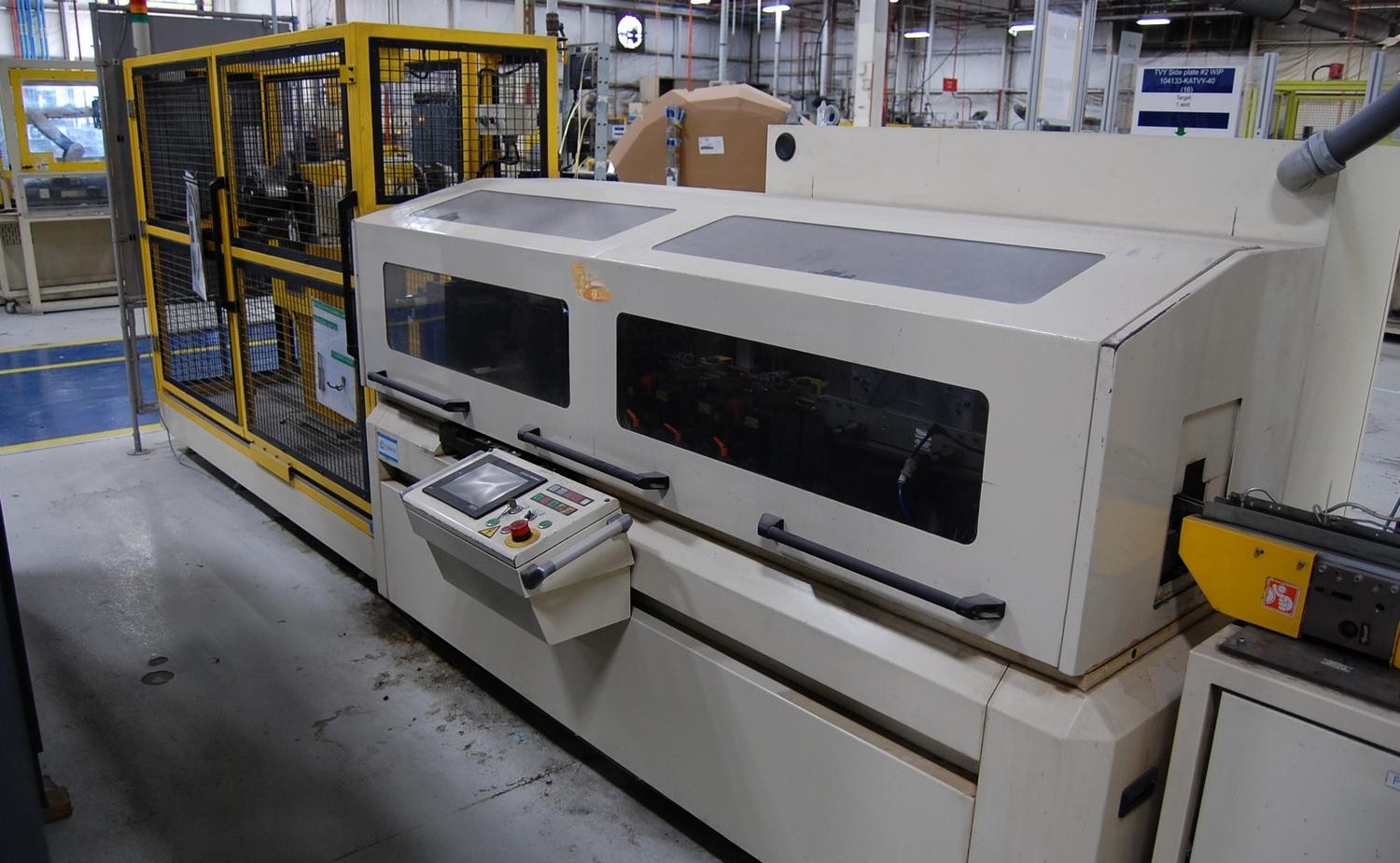

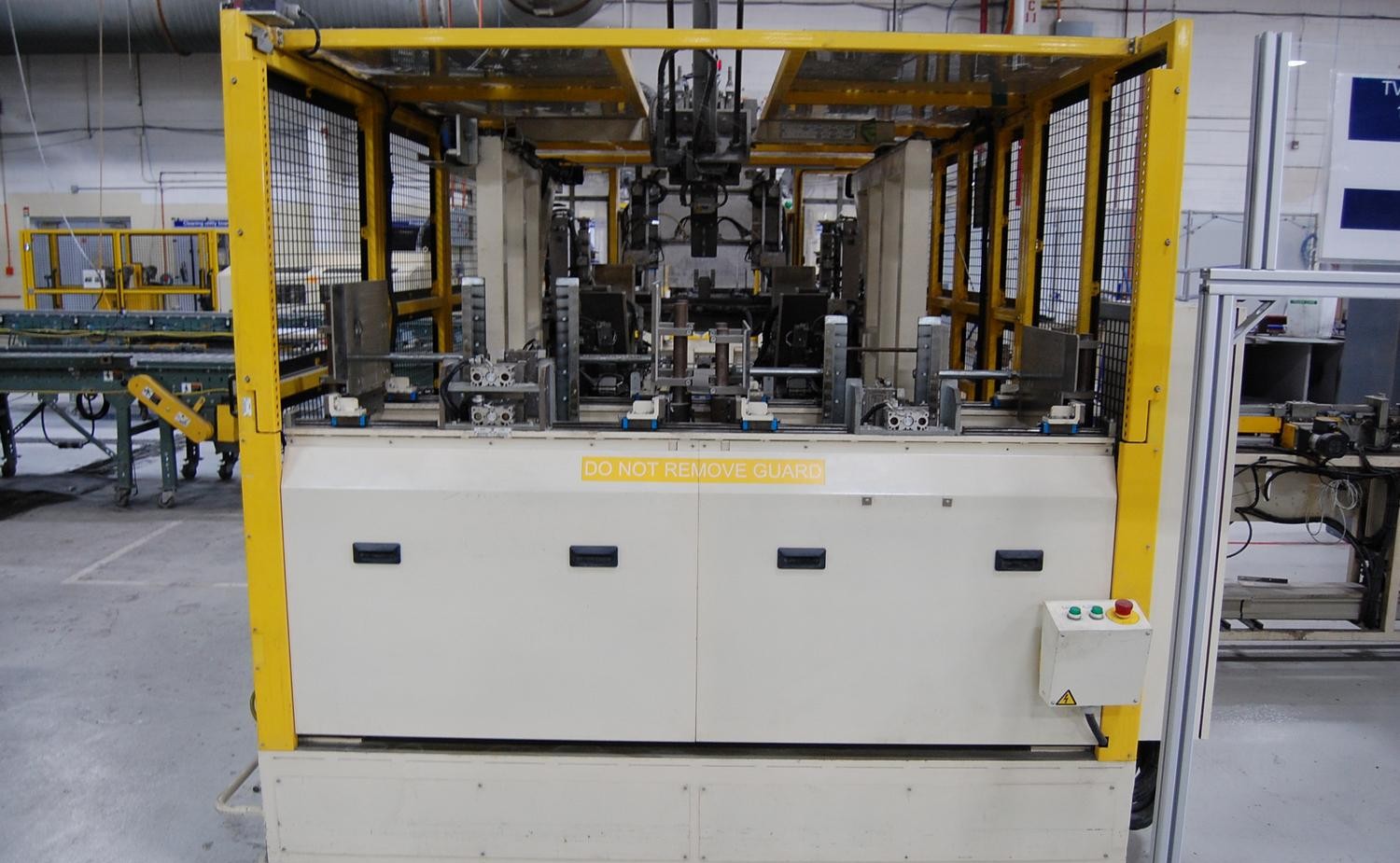

TH Fin Mill With Enclosed Fin Forming

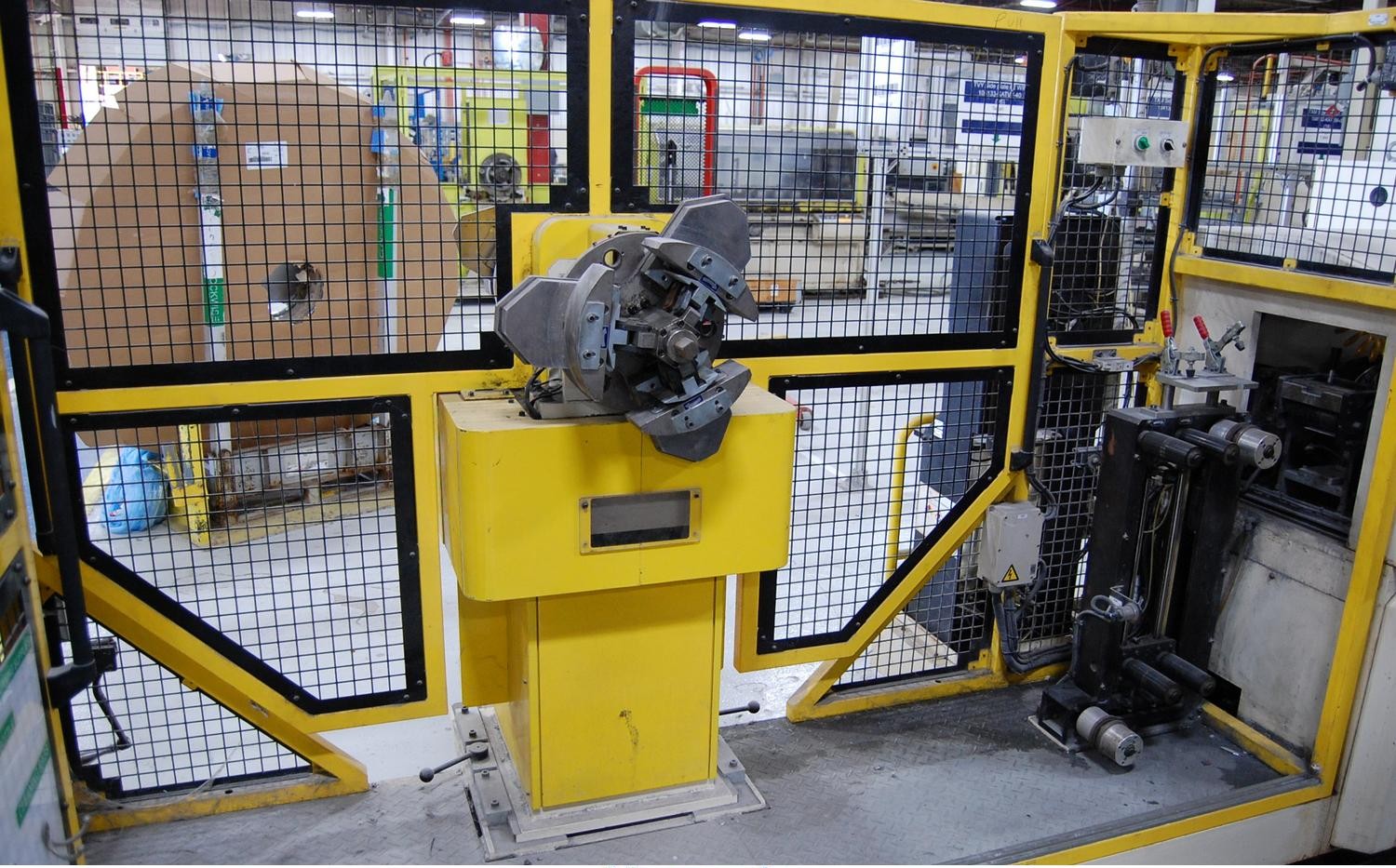

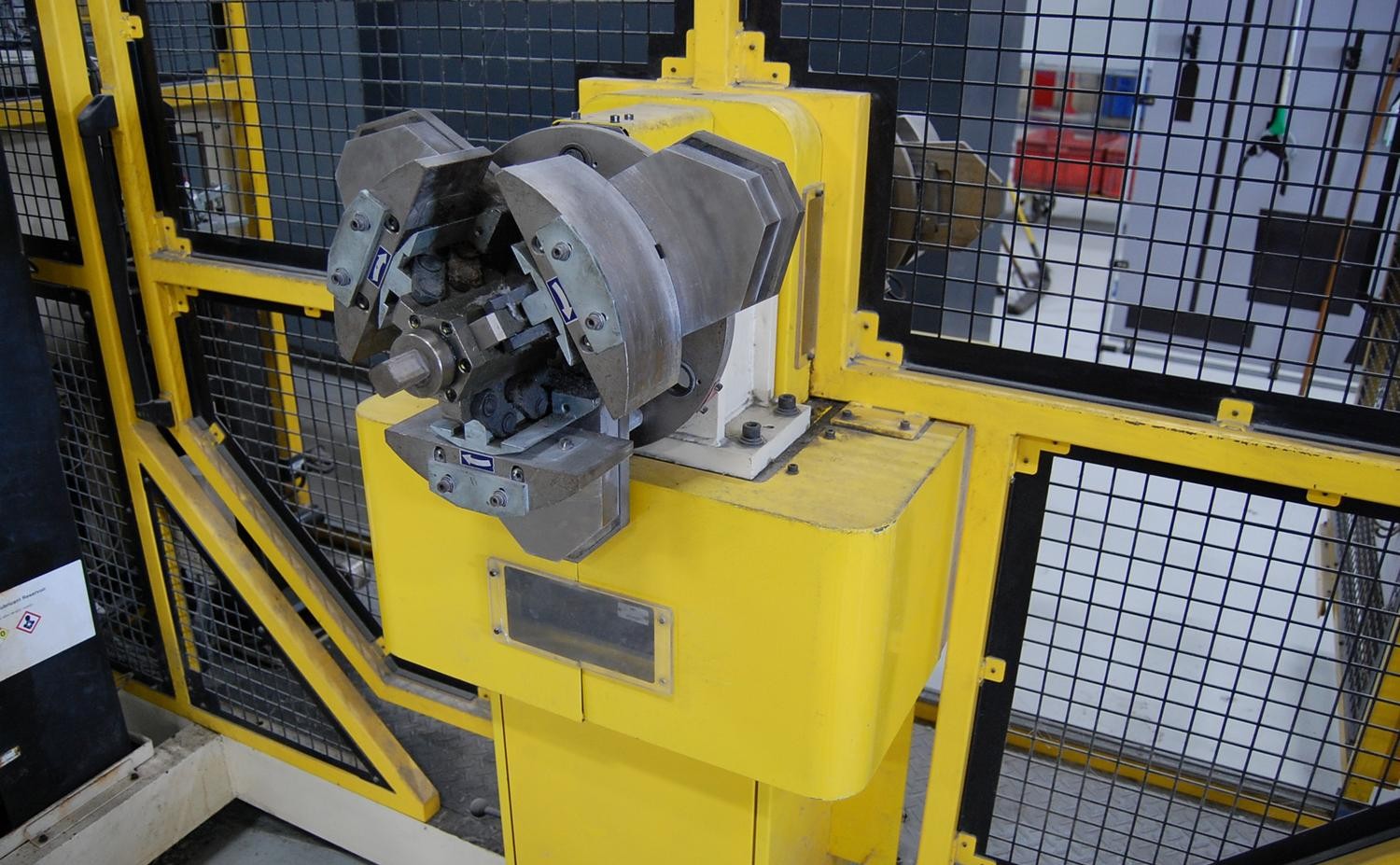

Multi-Segment Rotary Fin Cutting/Forming Head On A Guarded Pedestal
Internal Gearbox-Driven Forming Rollers,
Bank Of Adjustable Side Roll Assemblies,
Touchscreen Operator Control Station,

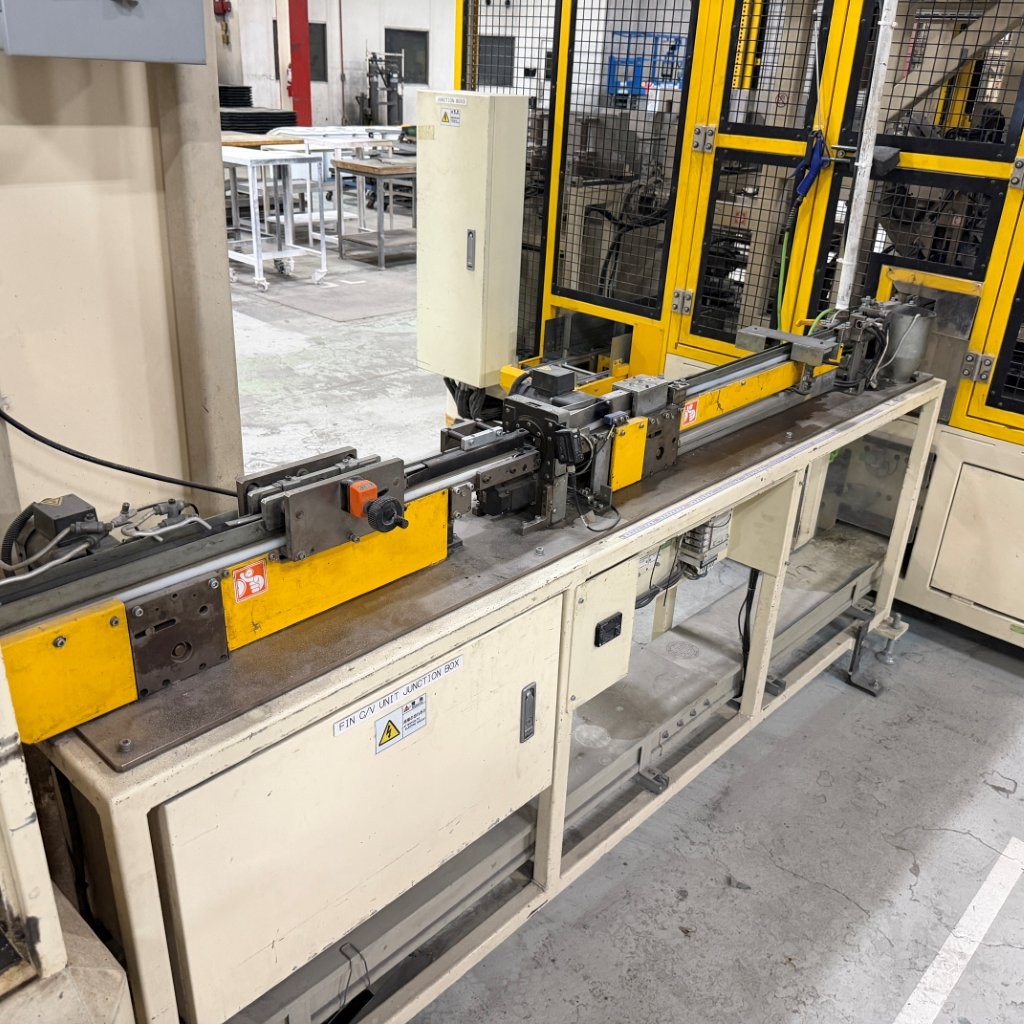

“Fin C/V Unit” Transfer Table With Linear Rail And Junction Box

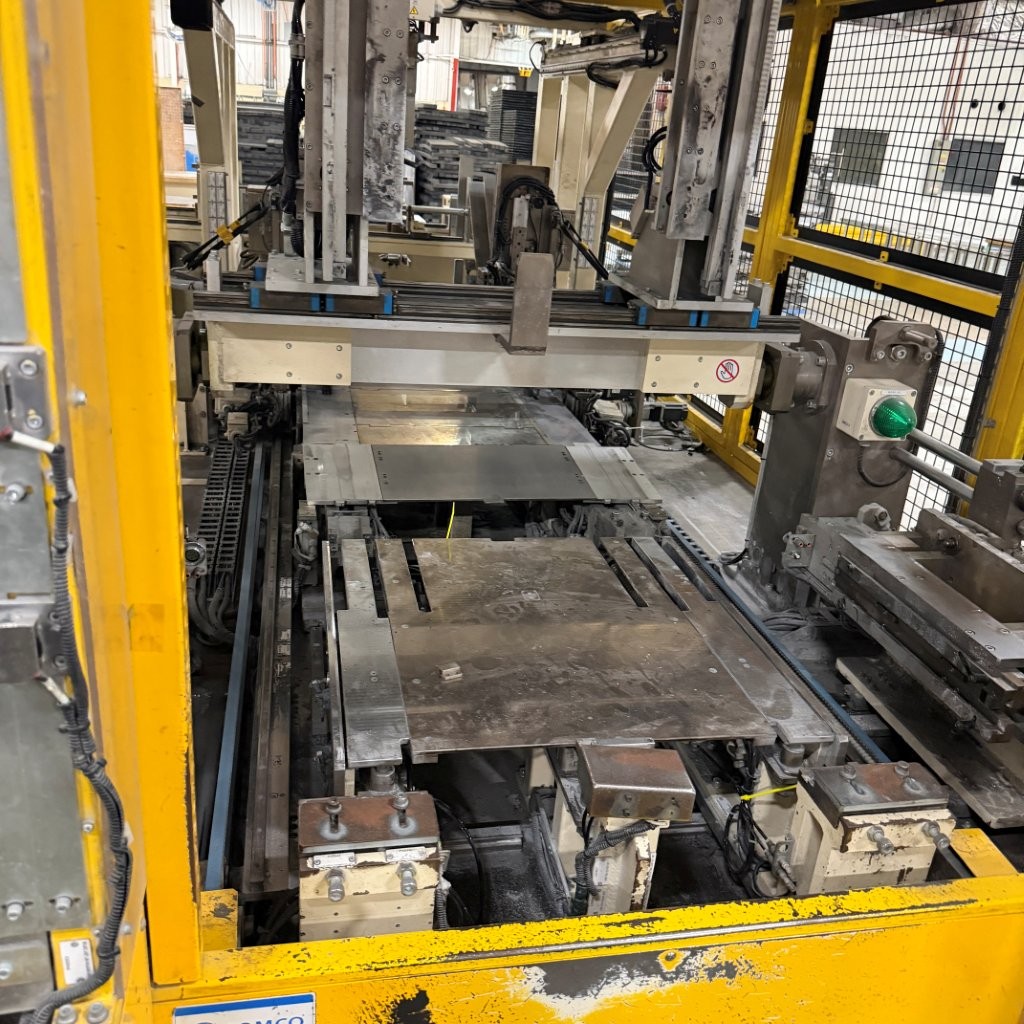

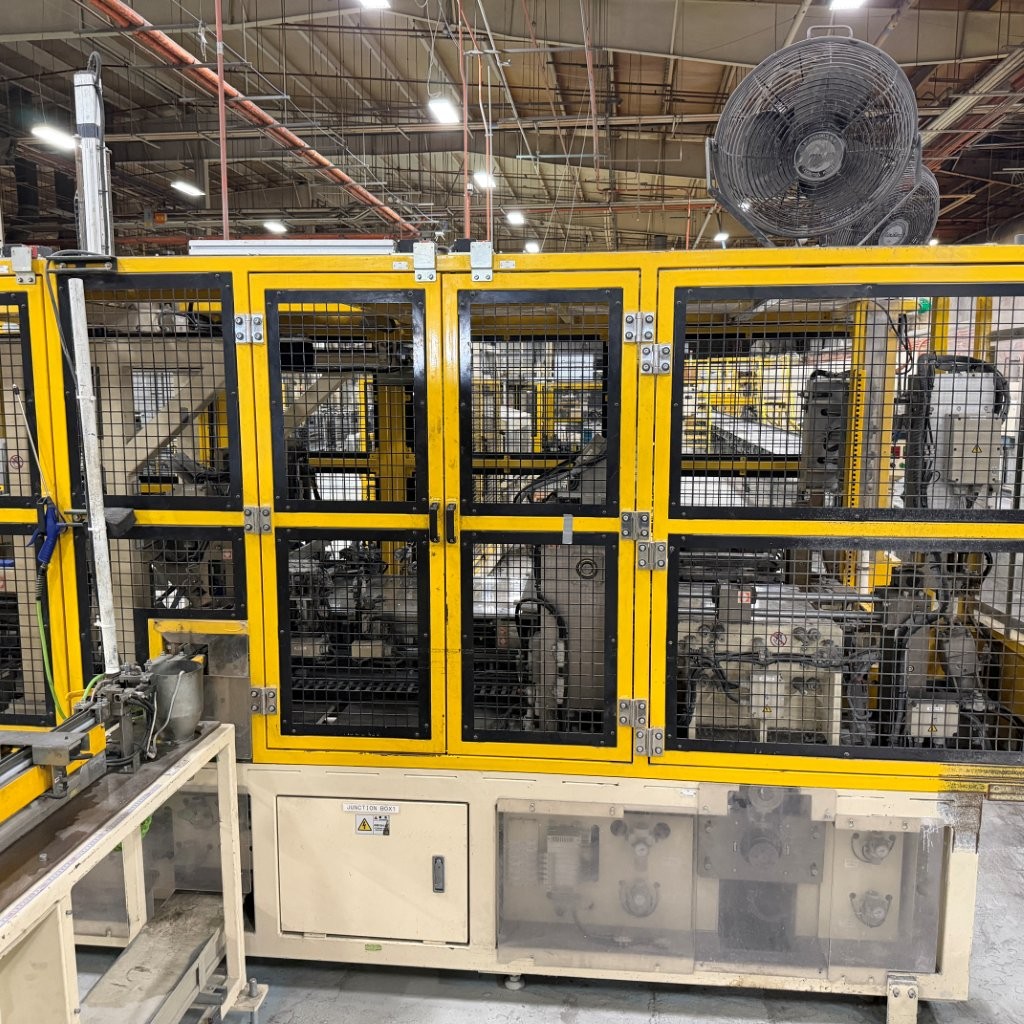

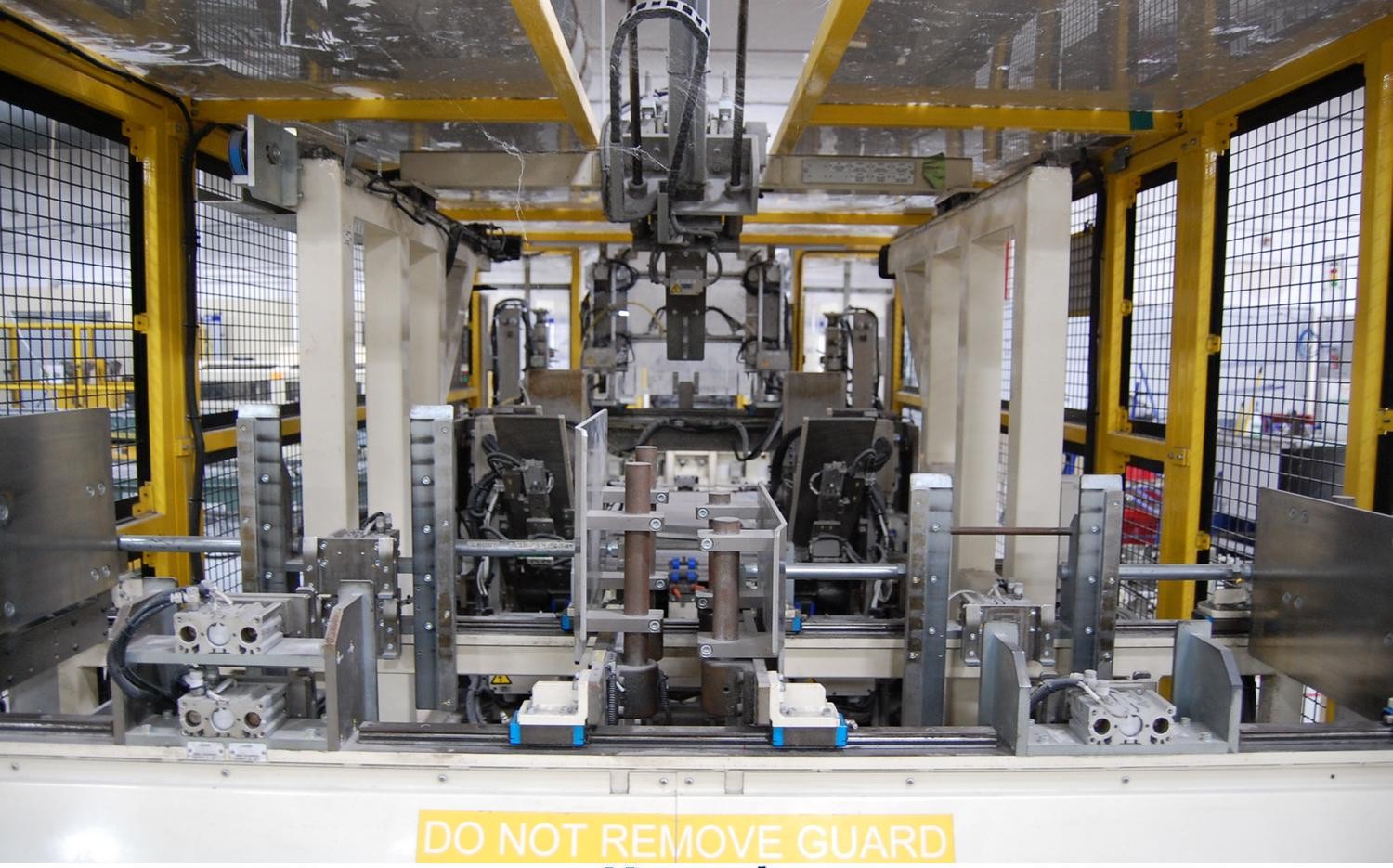

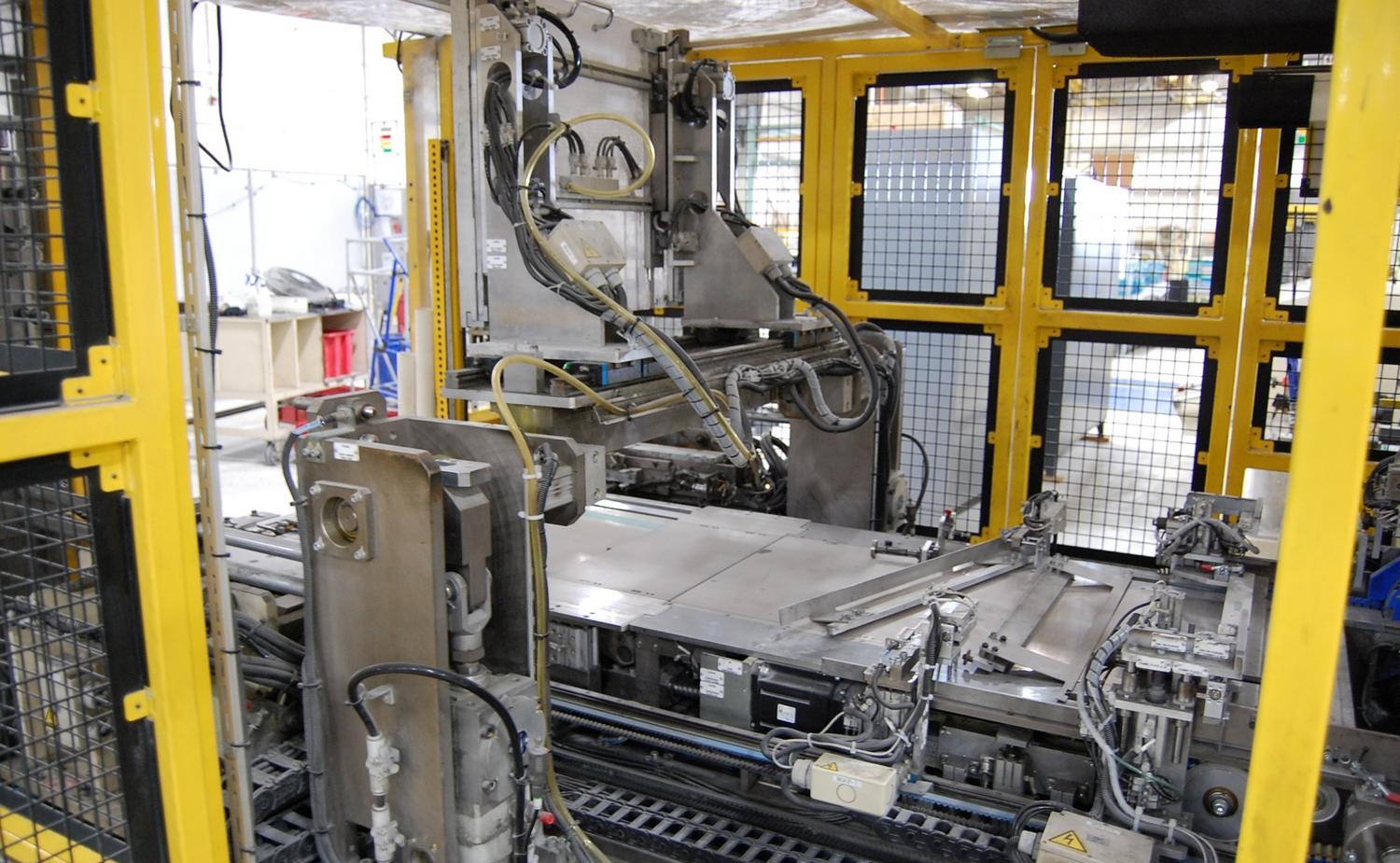

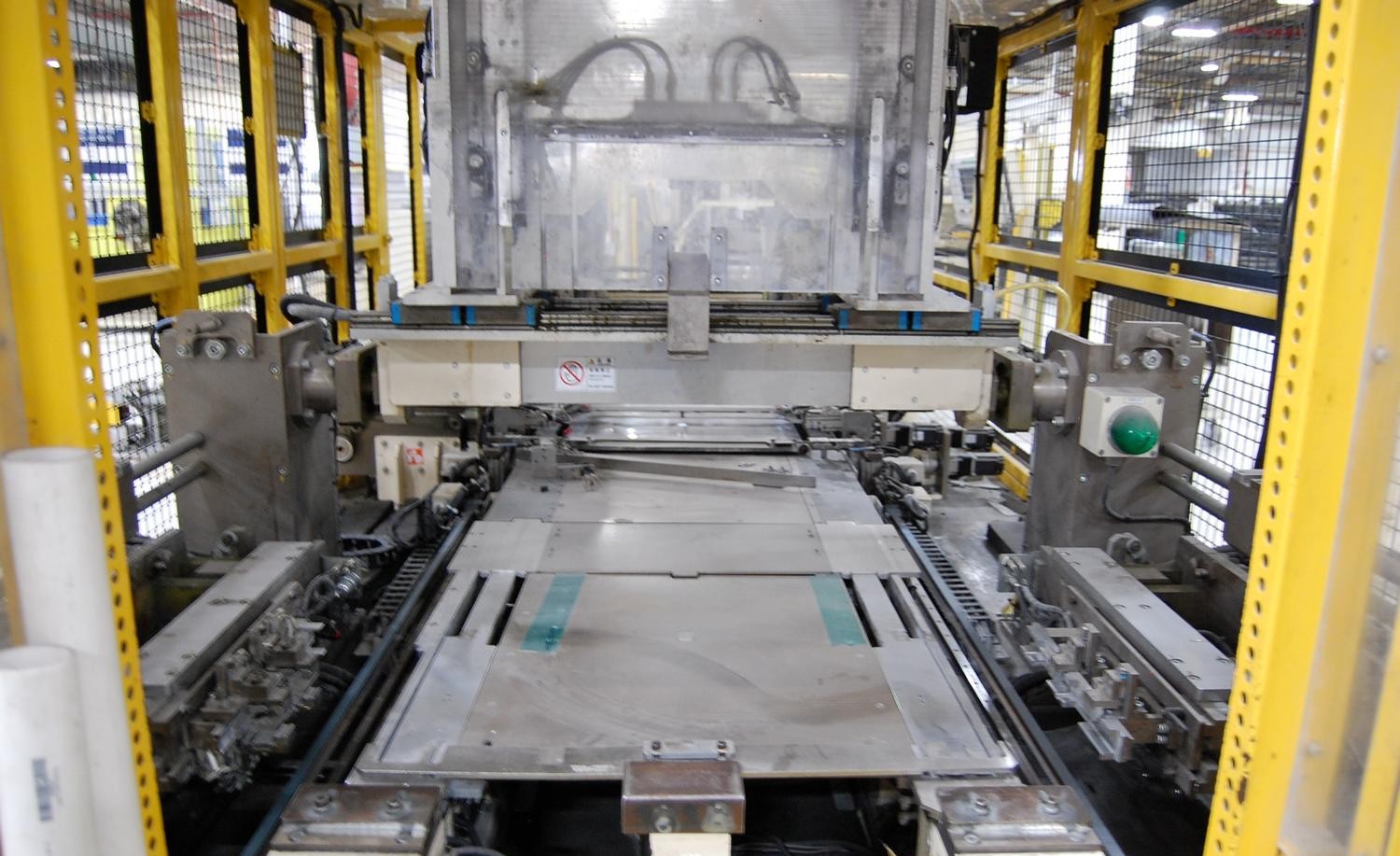

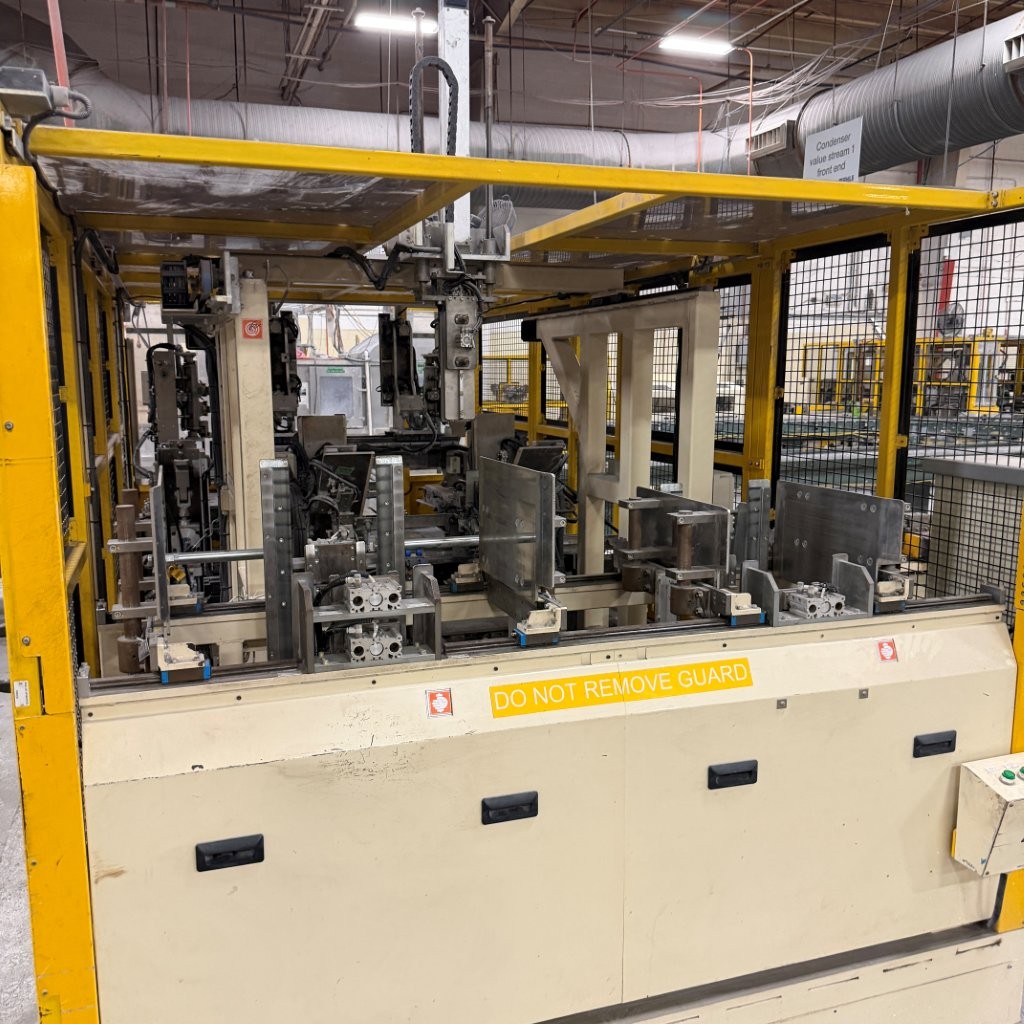

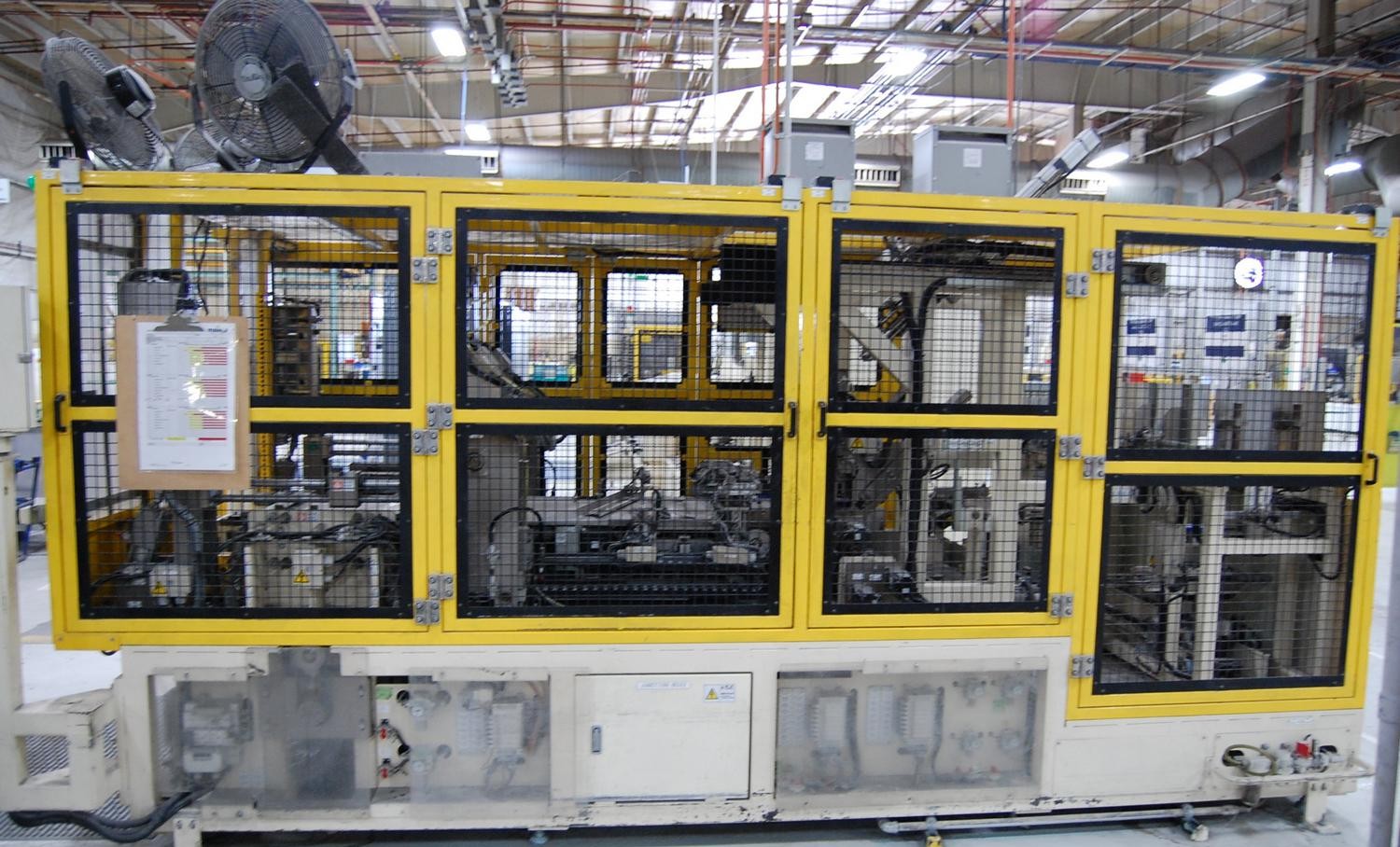

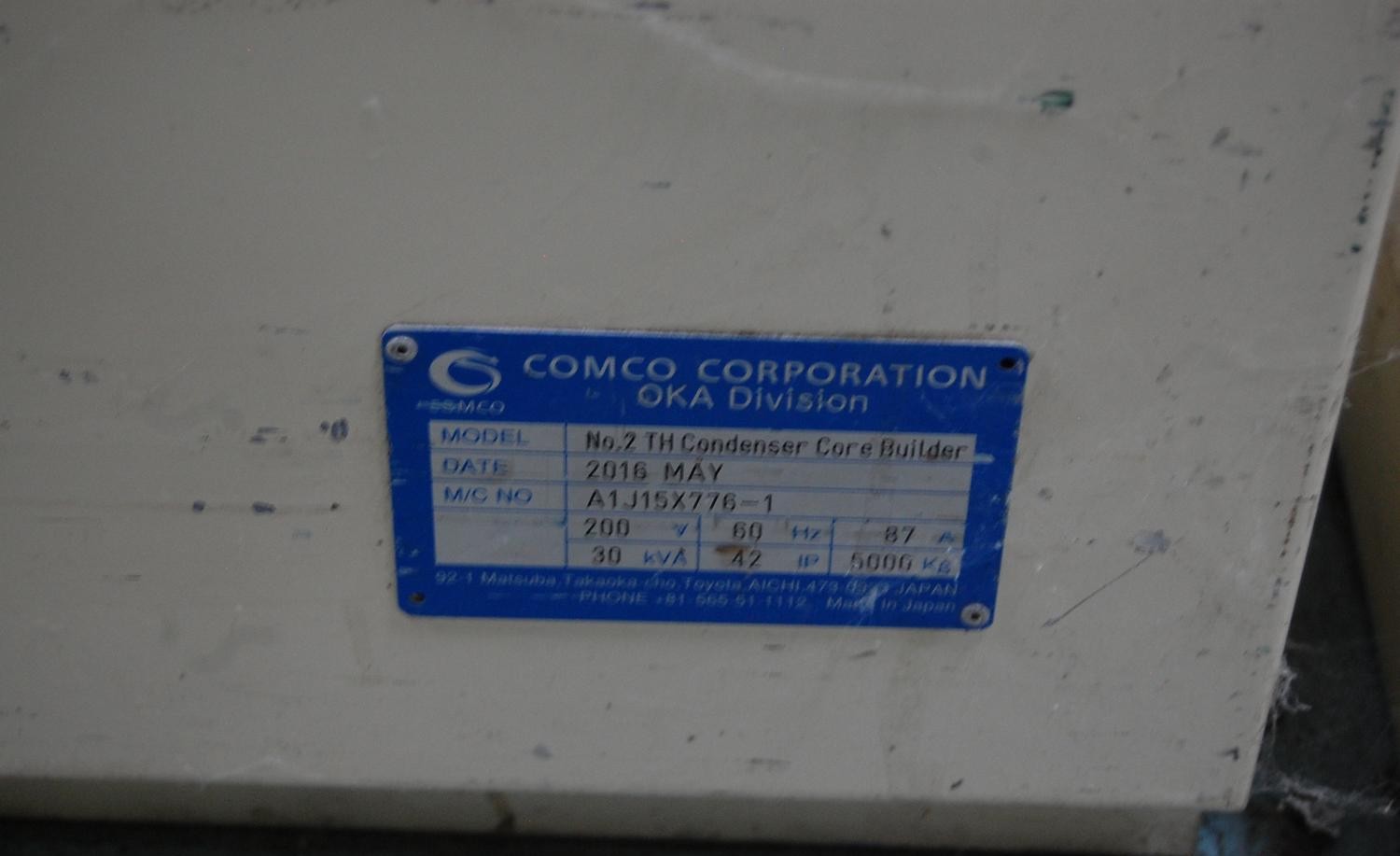

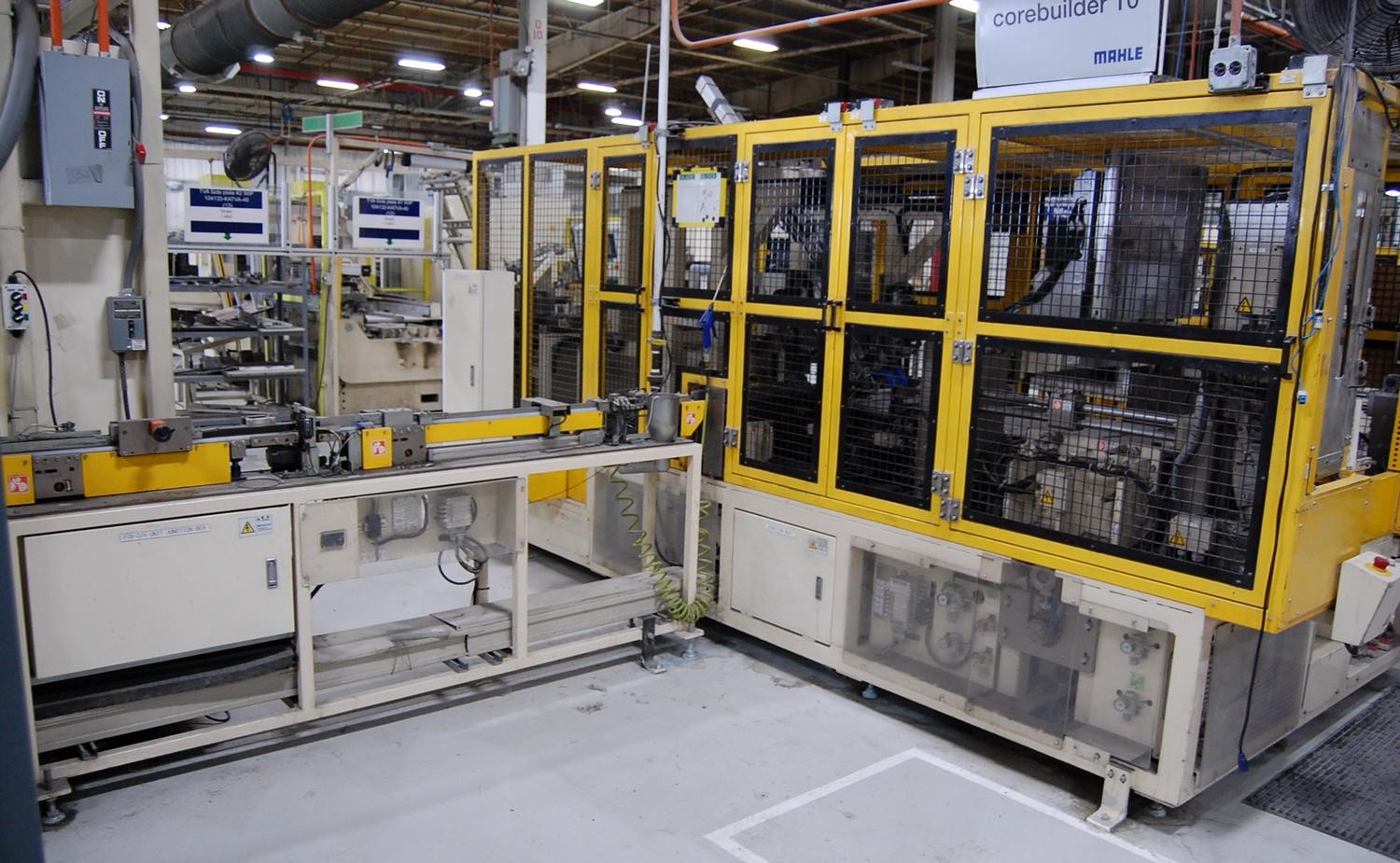

Th Condenser Core Builder
Dual Gantry Pick-And-Place Heads
Servo-Driven Transfer Carriages
Mitsubishi Got Touchscreen Operator Station
