Description

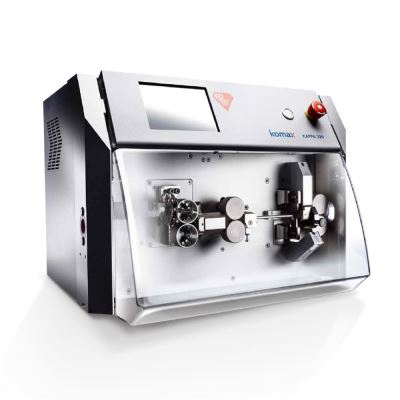

Wire Cut & Strip System
Make: Komax
Model: Kappa 320
Year: 2022
Wire Cross-Section, Stranded Wires*0.05 – 10 Mm² AWG 30 – 7Max.
Outer Diameter10 Mm (0.4 In.)
Length Accuracy repeat Accuracy ± (0.2 % + 1 Mm (0.04 In.)
Flat Cable Processing optional 12 Mm (0.47 In.)Wire
Length Range1 – 800’000 Mm (0.039 In. – 874.9 Yd.)
Short Wire Lengths optional 30 Mm max.
Wire Transport Speed4.0 M/S (157.5 In./S)Max.
Stripping Lengths full Strip
Side 1: 100 Mm (3.94 In.)
Side 2: 40 Mm (1.57 In.)
Semi Strip
Side 1: 999.9 Mm (39.37 In.)
Side 2: 999.9 Mm (39.37 In.)
Multi-Step Strip
Side 1: 999.9 Mm (39.37 In.)
Side 2: 999.9 Mm (39.37 In.)Intermediate Stripping
Equipped With:
Wire Transport
Swiveling Wire Guides
Right Wire Guides
External Wire Straightener For Kappa 3xx
Conductor Detector
Length Measuring System
Production Table
ADS 112 Delivery System
Ink Jet Marking System
M1630
Mounting Kit M1630 Jet
