Description
Salvagnini S4 + P4
Year: 2015

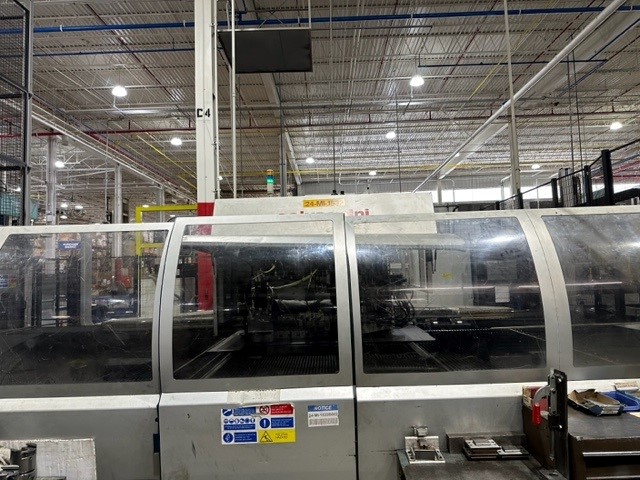

Punch/Shearing Machine
Model: S4Xe.30.SiX
120” x 60” Punching machine

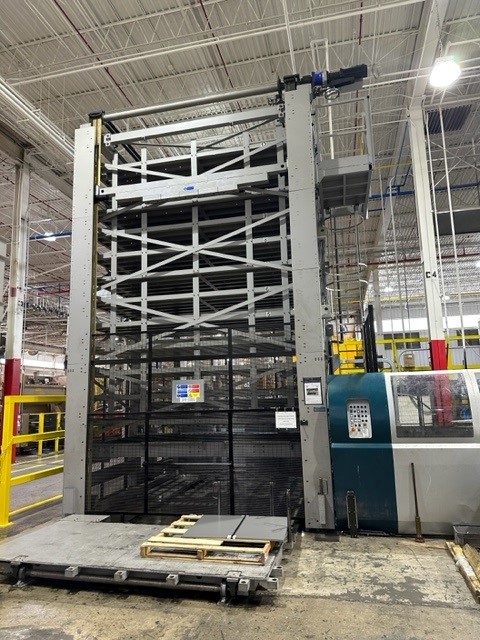

(12) Level material tower with single sheet feeding
MD1-3015.RCP.M12
– JOBLINE.CONSOLE: Software for managing production of line
– SIMULX: Program simulation and part verification software
– STAT: Statistical analysis software
– HU22E: Hydraulic power pack
– H3: Punching head ( 56 – 7 tons station, 4 – 30 ton station )
– EI: (2) Internal embossing station
– BU: (2) External embossing station
– P2R: Dual auto indexing station
– CS5S: Integrated right angle shear
– SSP: Front scrap conveyor
– DF: Part positioning device

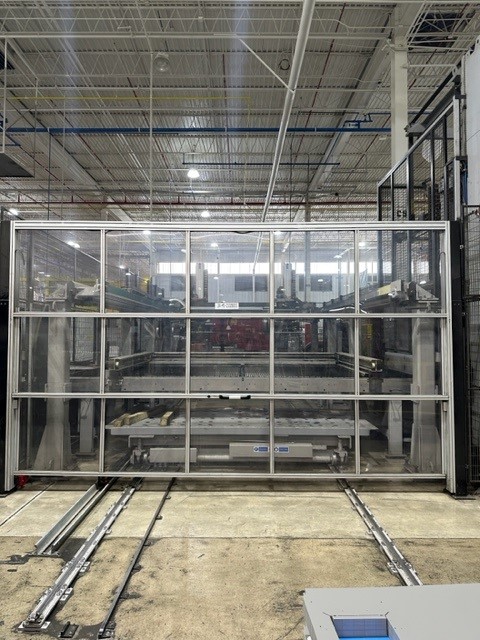

Cartesian unloading system with (2) unloading trays
Model: MC30.CTS30.TCV.SV
RXXE: Refrigerated chiller
(6) Level punch parts storage and retrieval system
Model: MVP30.H6:

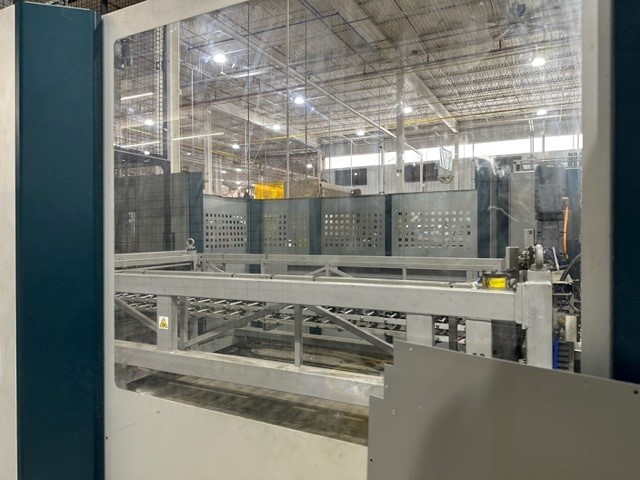

RIP3015: Part turn over connection
RBU: Rotating brush for cleaning incoming sheets

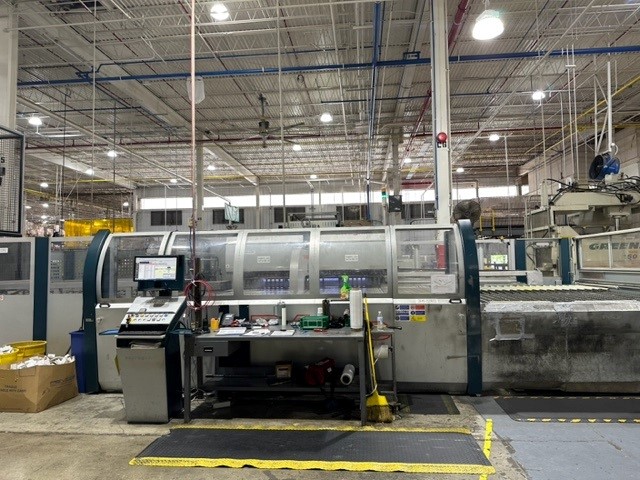

Automatic Panel Bender
Model: P4Xe-2516.SiX
Specifications:
Max Length of Incoming Sheet: 110”
Max Width of Incoming Sheet: 60”
Max Diagonal That Can Rotate: 110”
Max Bending Force Blades: 74 Tons
Max Bending Force Blankholder: 119 Tons
Max Bend Length: 98.4”
Max Bending Height: 6.5”
Min Thickness: .020”- PACKMODUS: Parts management and sequencing software
– STAT: Statistical analysis software
– RC: Continuous rotator at 1 degree increments
– LS1: Upper bending blade
– LI: Lower bending blade
– ABA30/400/130: Automatic tool changer
– PSE Device for cleaning and lubricating bending blades
– ABC Automatic bladeholder crowning
– CLA-A-1500 Auxiliary bending tool asymmetric command for positive bends
– P/CUT.ULC004 Device for cutting and removing small profiles
SAP27.POS Formed parts accumulator
