Description

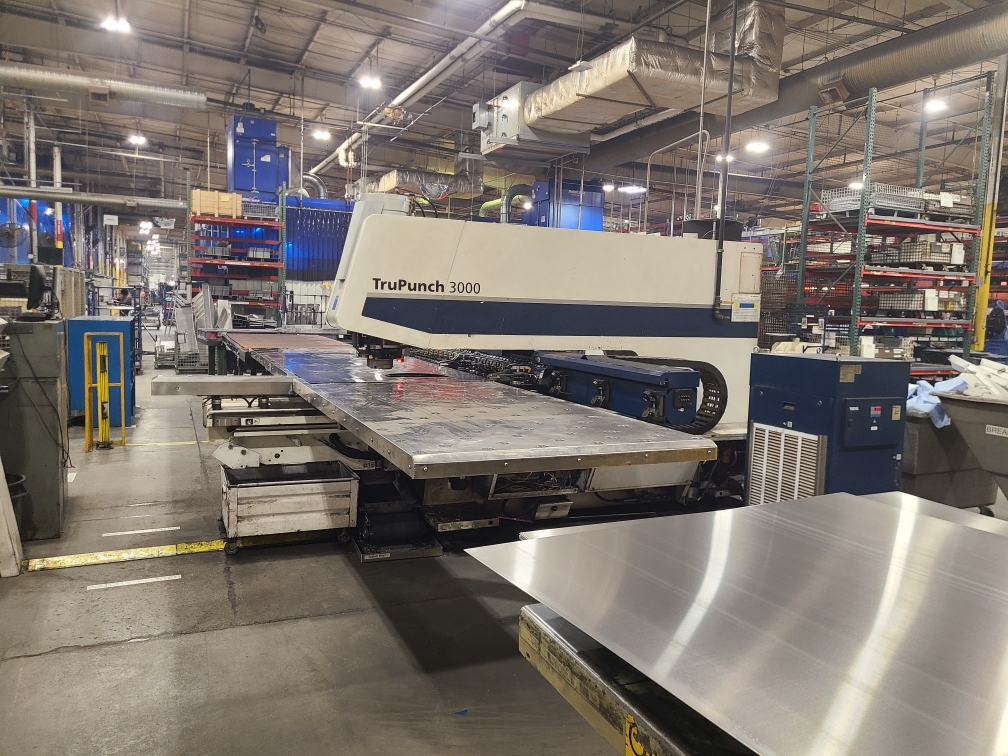

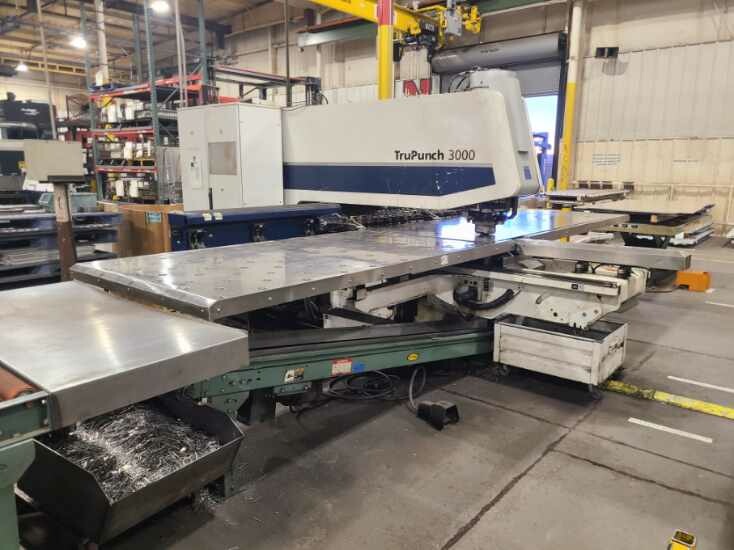

Trumpf Trupunch 3000 Turret Press
Year: 2013
Specification:
Tonnage Capacity: 20 Tons
Max Sheet Size: 48″ x 96″
Max Sheet Weight: 330 LBS
Max Sheet Thickness: 0.250″
Throat Depth: 50
Turret Stations: 18-Station Linear Rail with 2-Clamping Stations
Punching Rate: Punching – 1000 SPM / Marking – 2500 SPM
Max Sheet Positioning Speeds (X/Y):
X-3,543 IPM
Y-2,362 IPM
Simultaneous – 4,250 IPM
C-Axis – 330 RPM

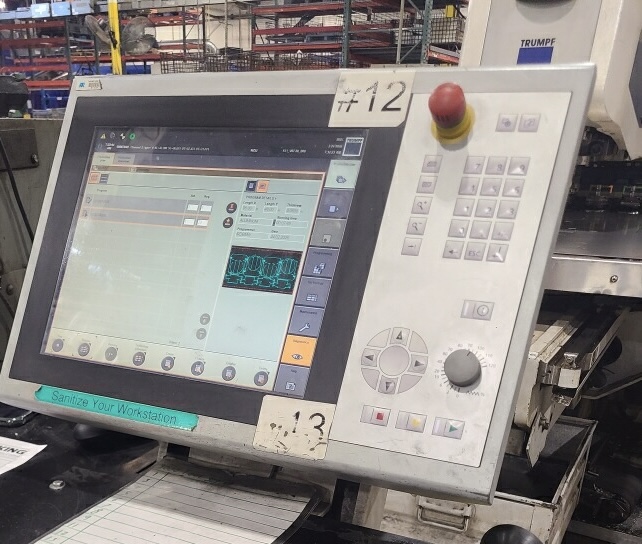

Trumpf CNC Control with 14″ Screen

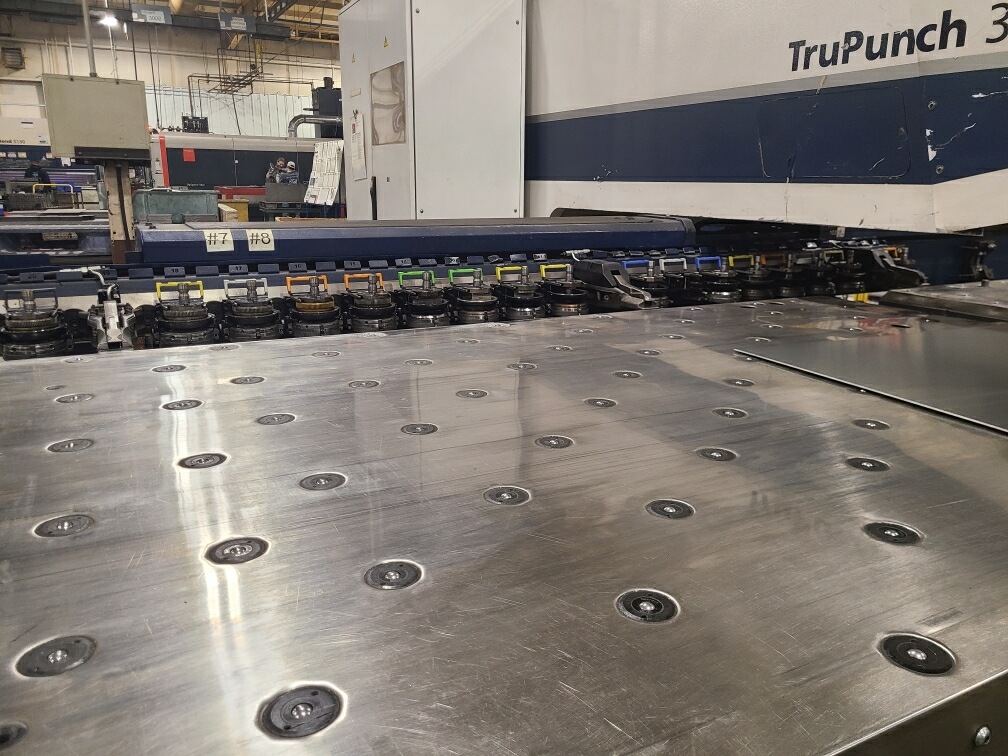

18-Station Linear Tool Rail
Electric Servo Punch
Riedel Chiller
Foot Trip
Light Curtain

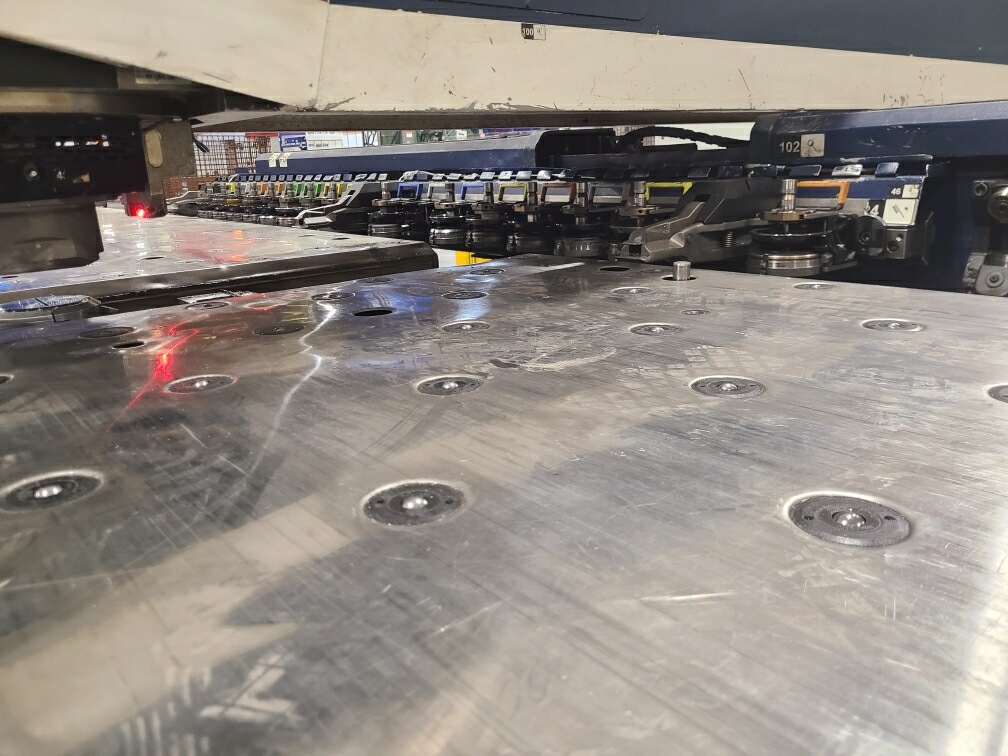

Roller Ball Table
