Description

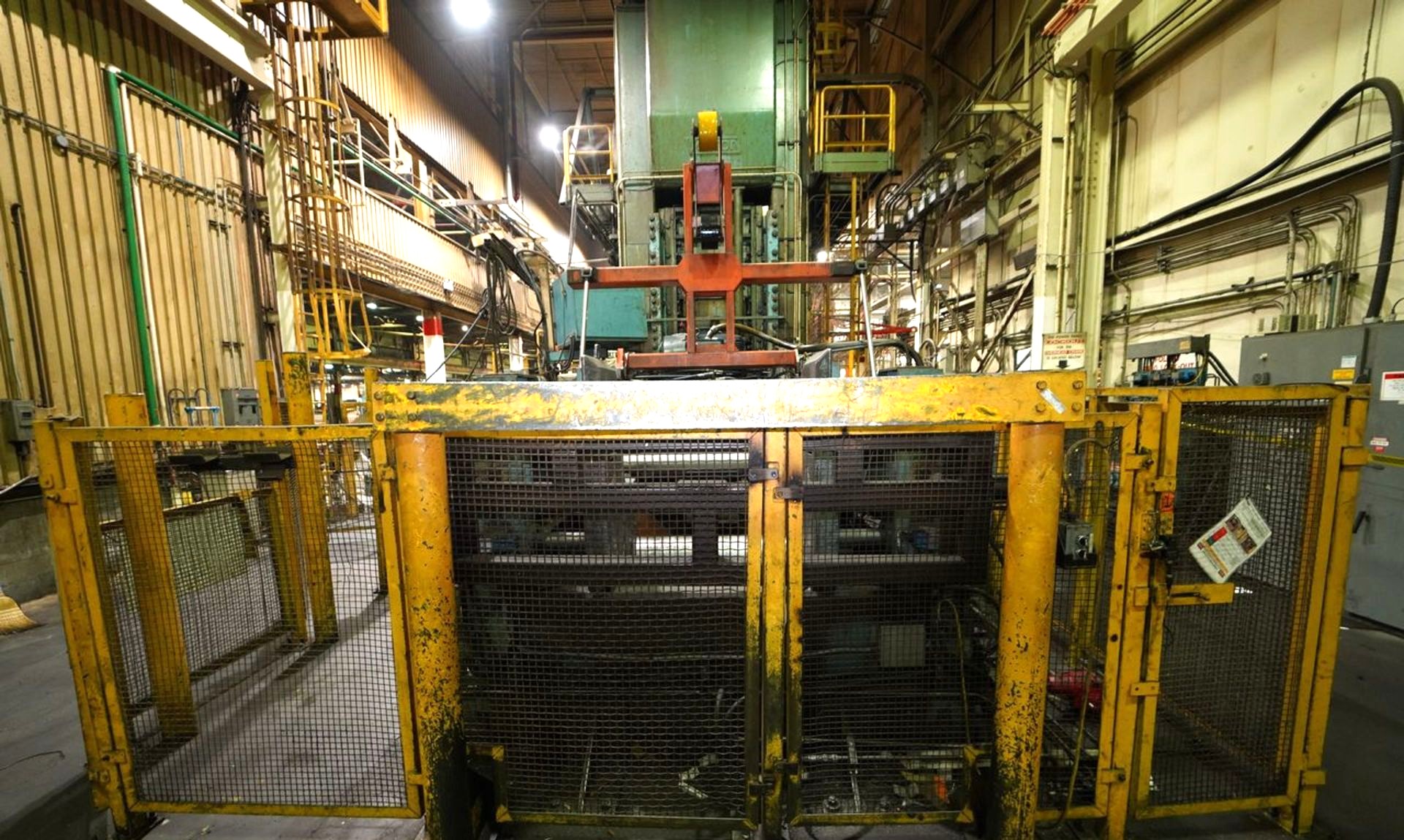

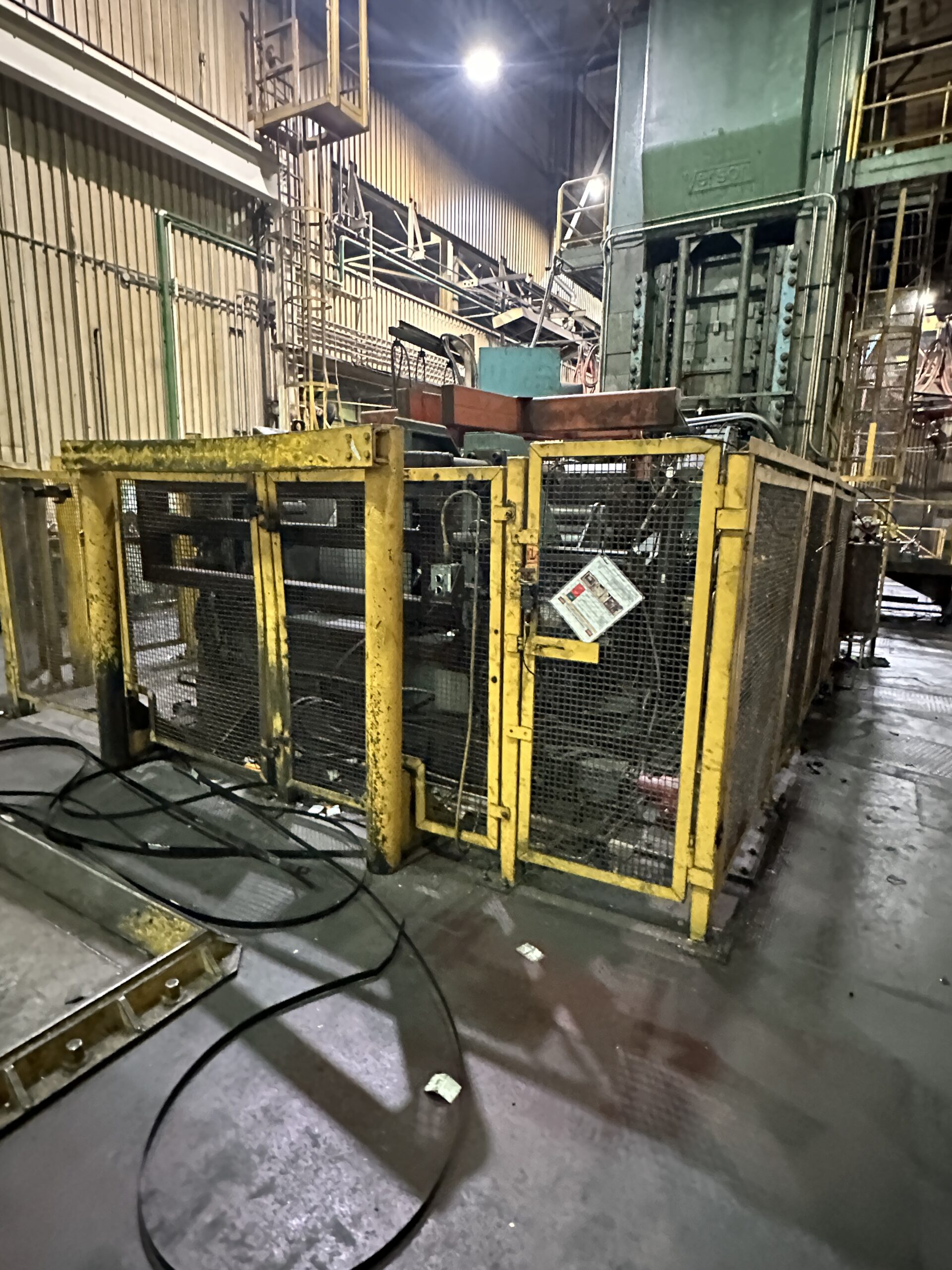

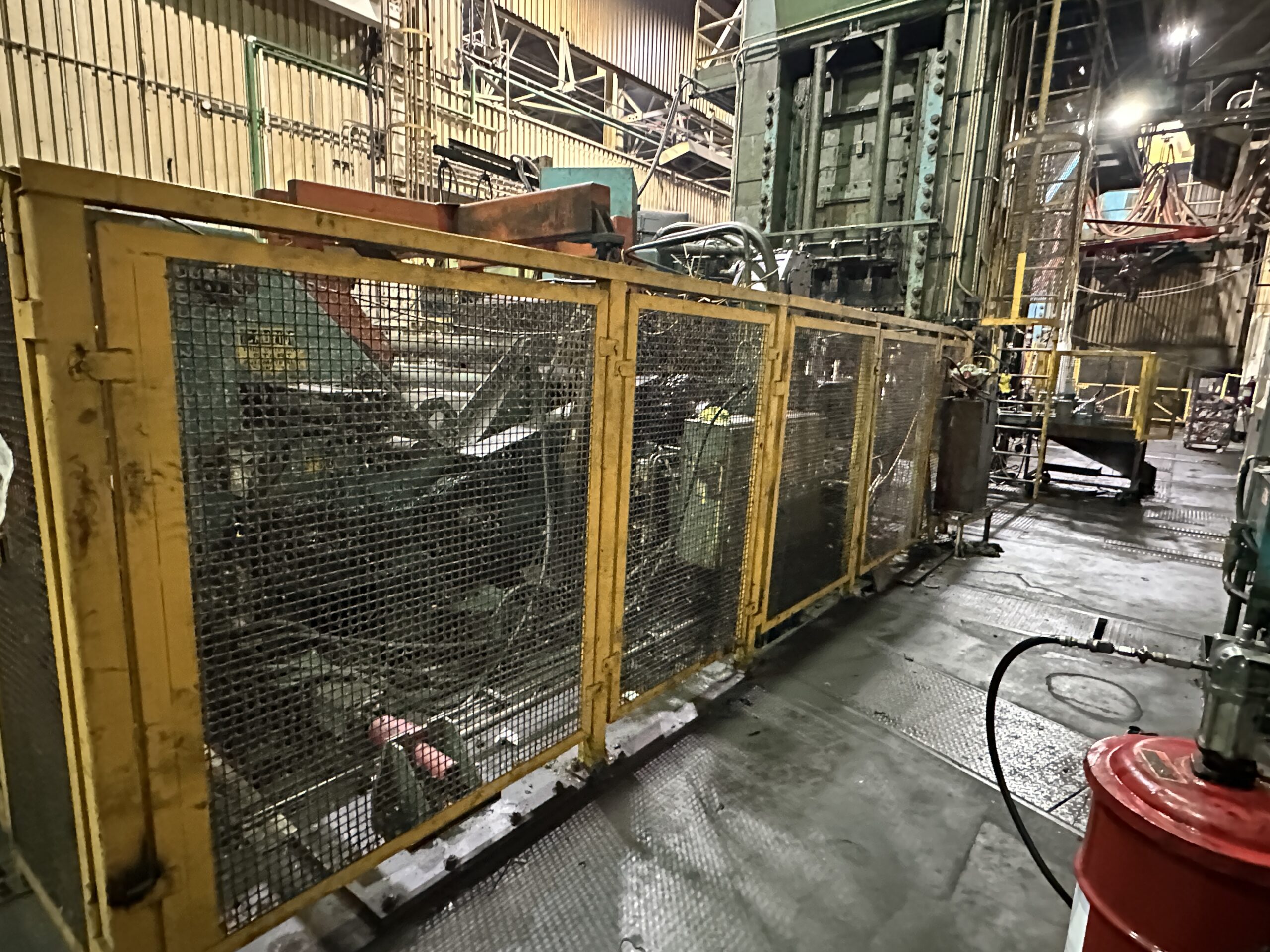

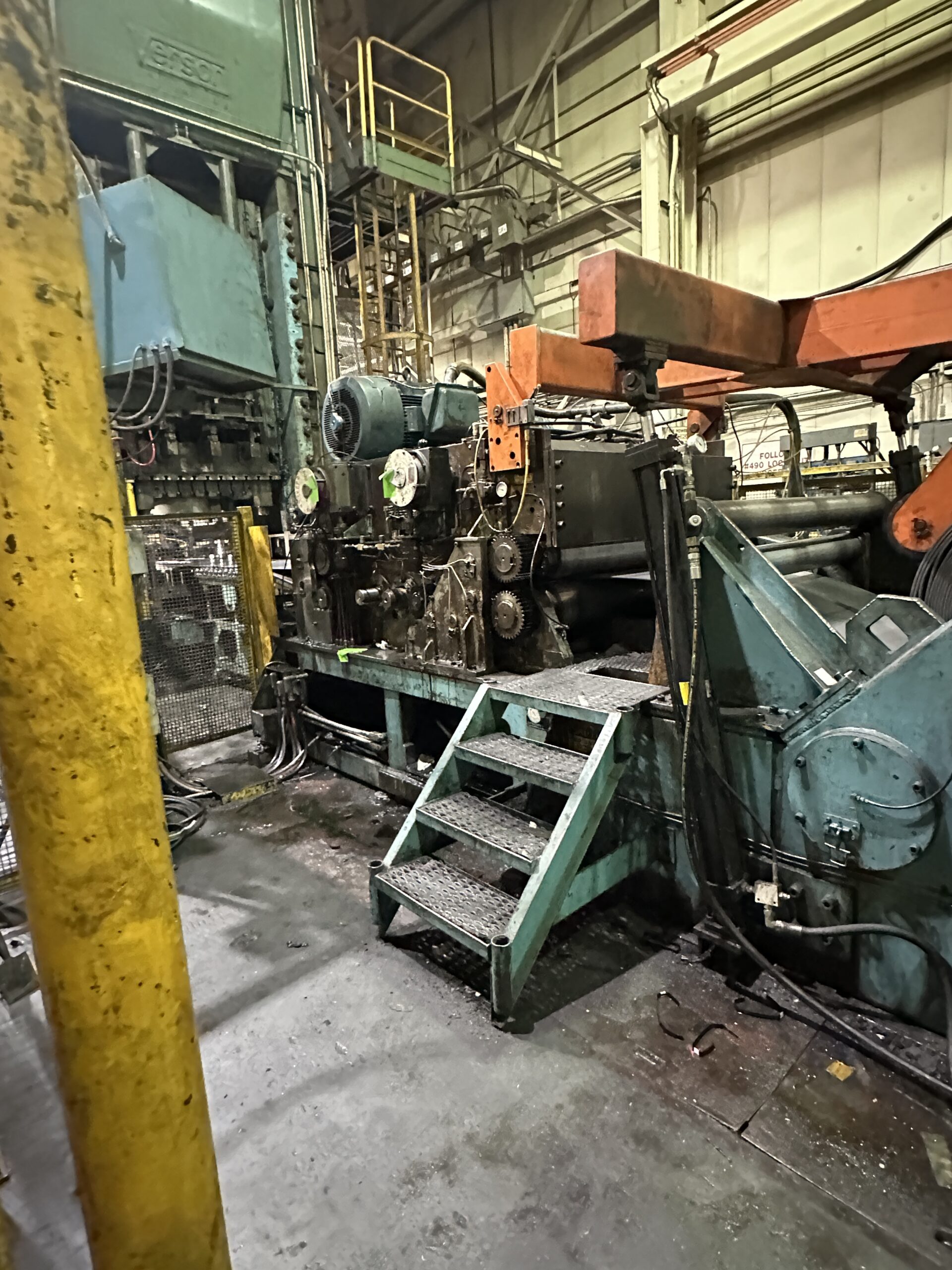

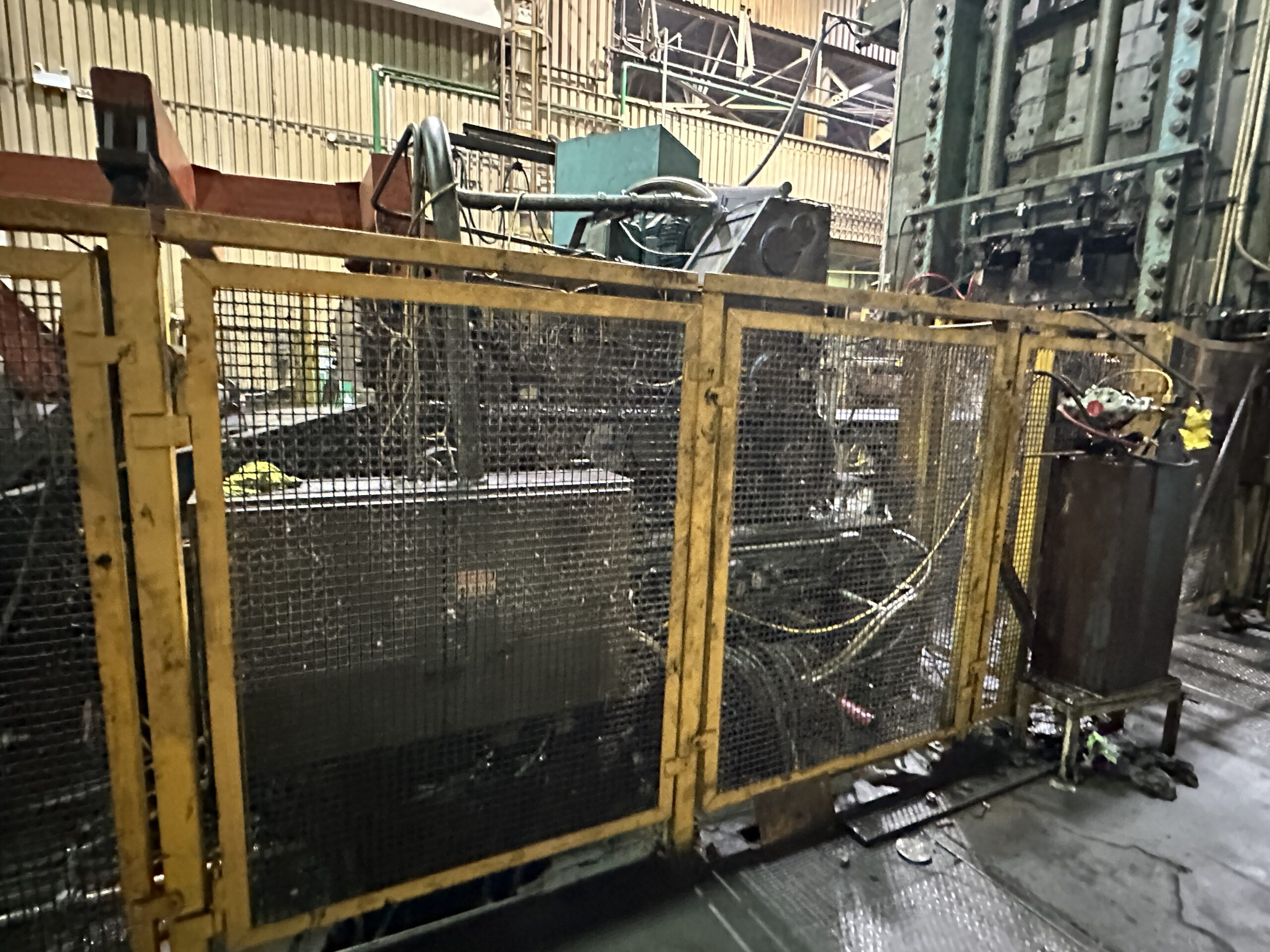

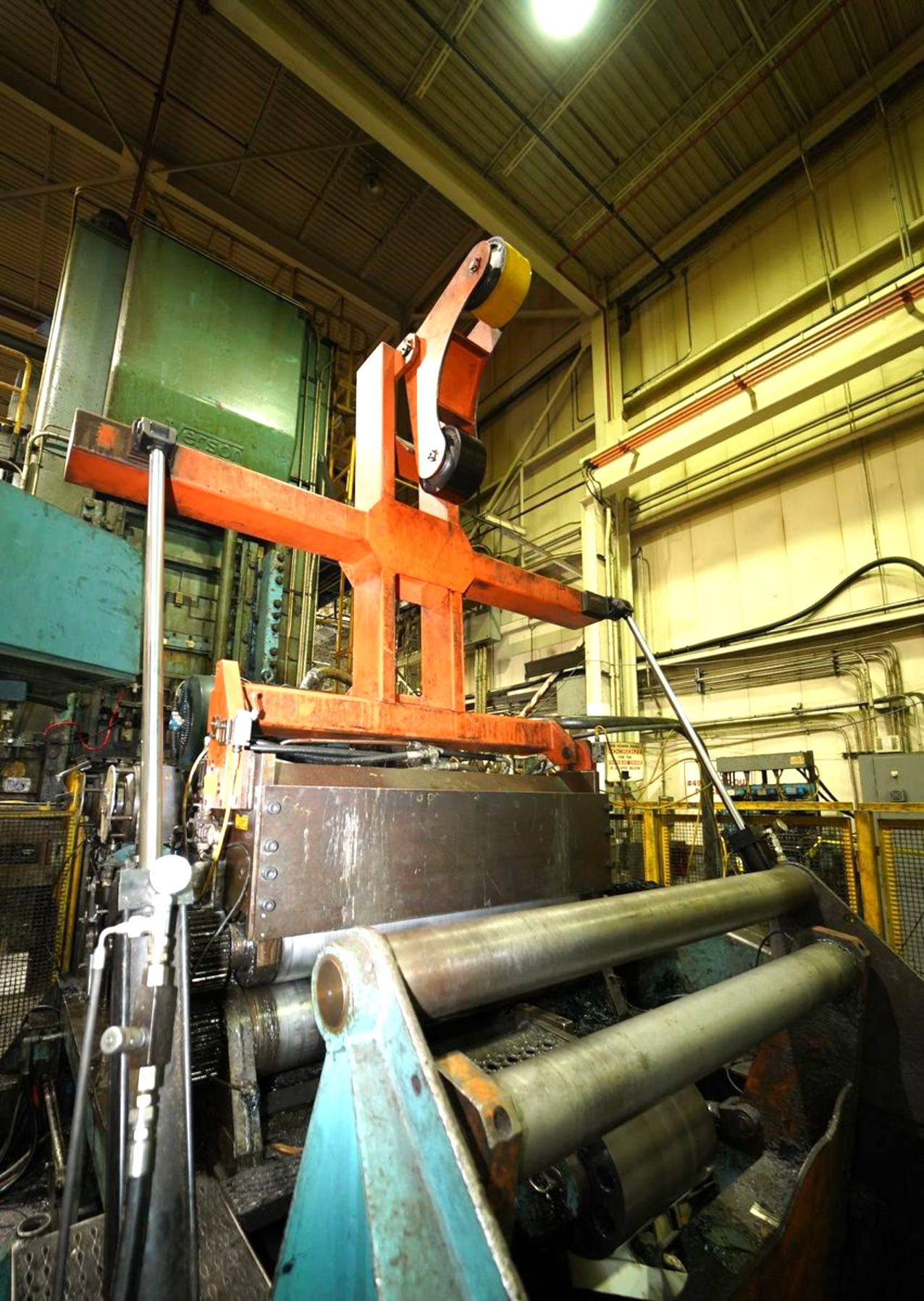

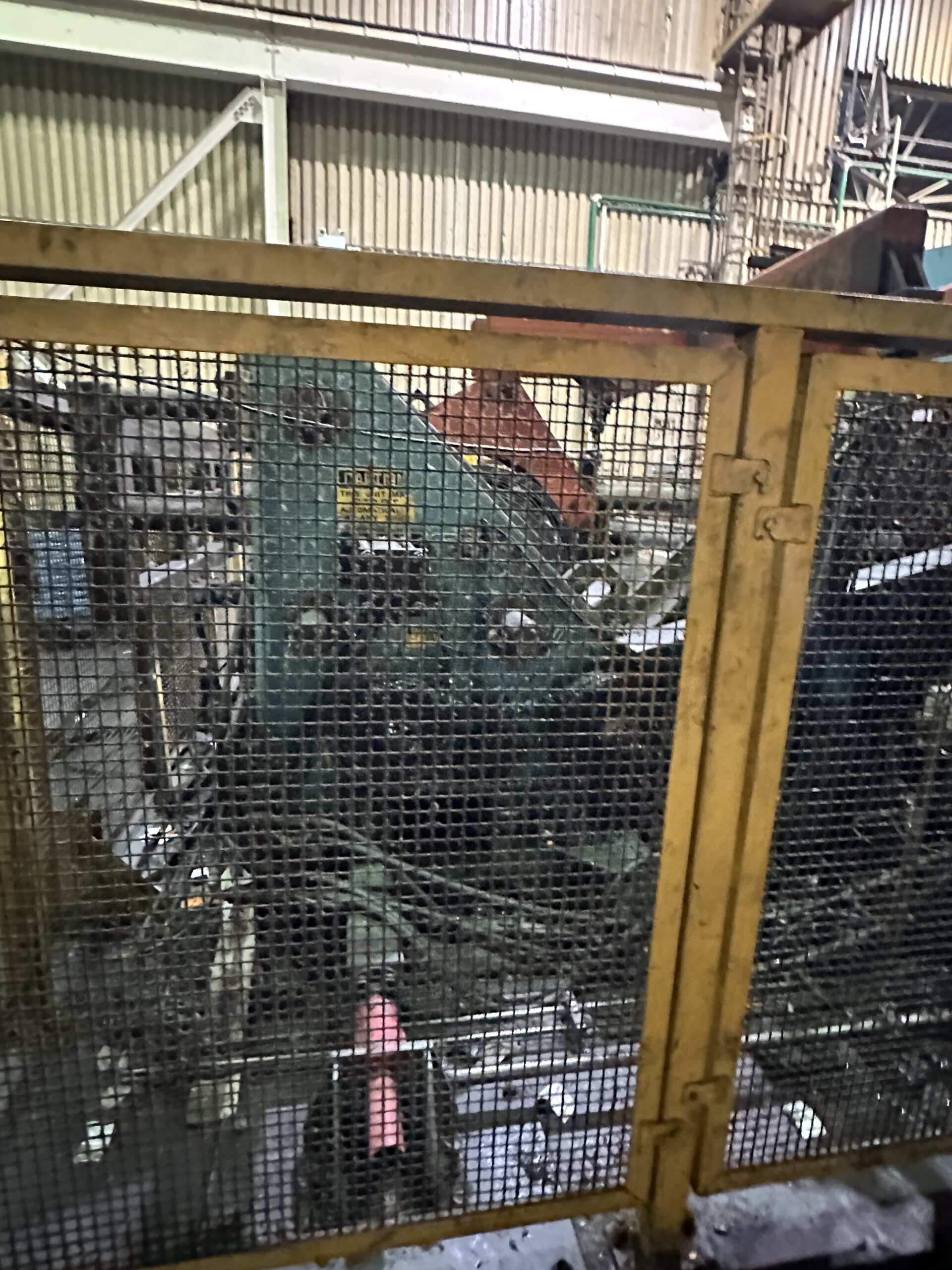

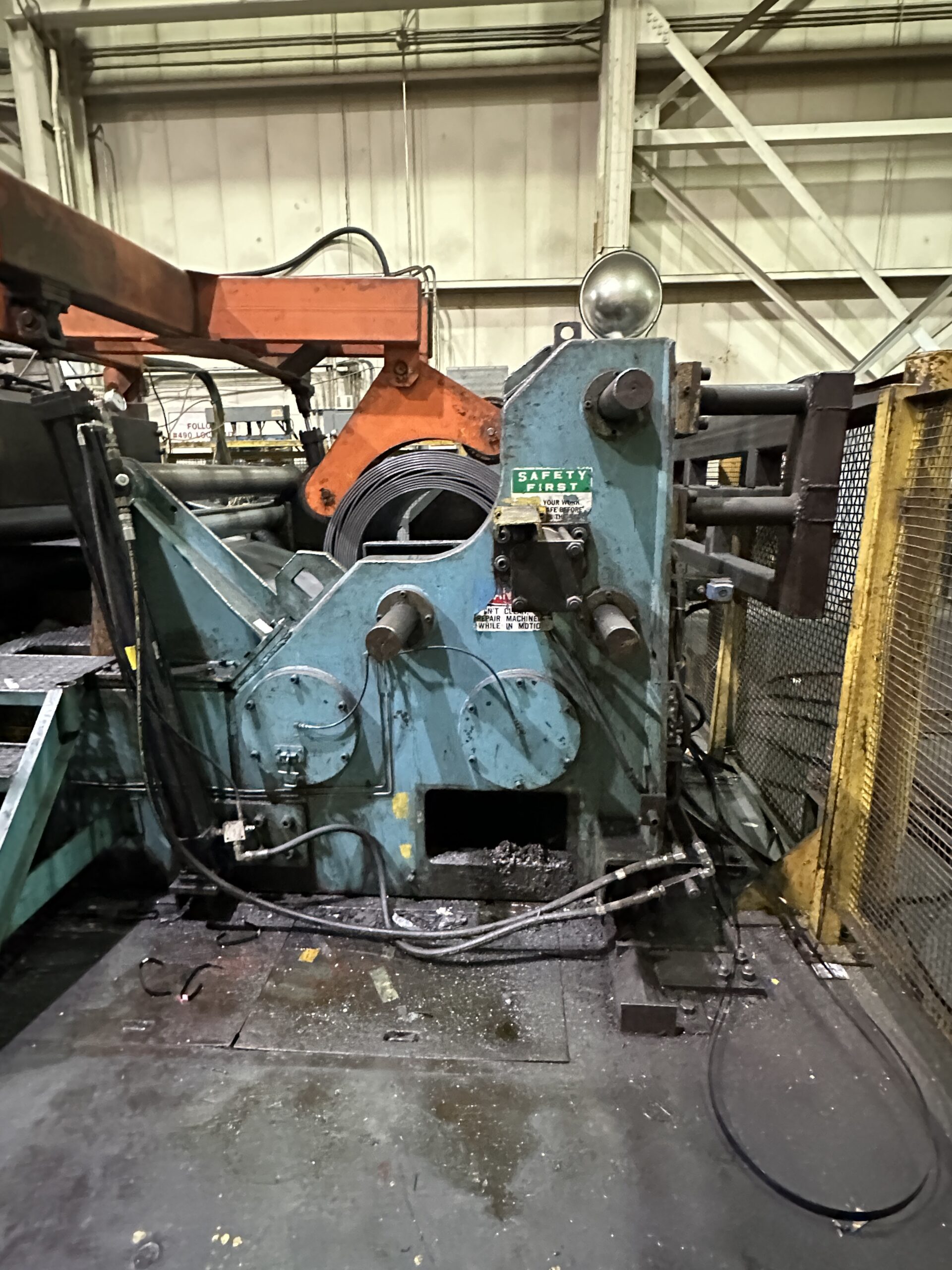

54” Sesco Cradle Straightener Servo Feed Line
Model: 12-1042
Specifications:
Coil Width: 12” to 54”
Coil Weight: 60,000 lbs
Coil OD Max: 72”
Stock Thickness
.156” to .562” At 48”
.625” At 36”
Feed Length: 0-30”
Production at 270 Degree Feed in:
Feed Length SPM
5” 36
10” 29
15” 24
20” 21
25” 18
30” 16
Pass Line: 50”
Pinch Roll Dia: 10”

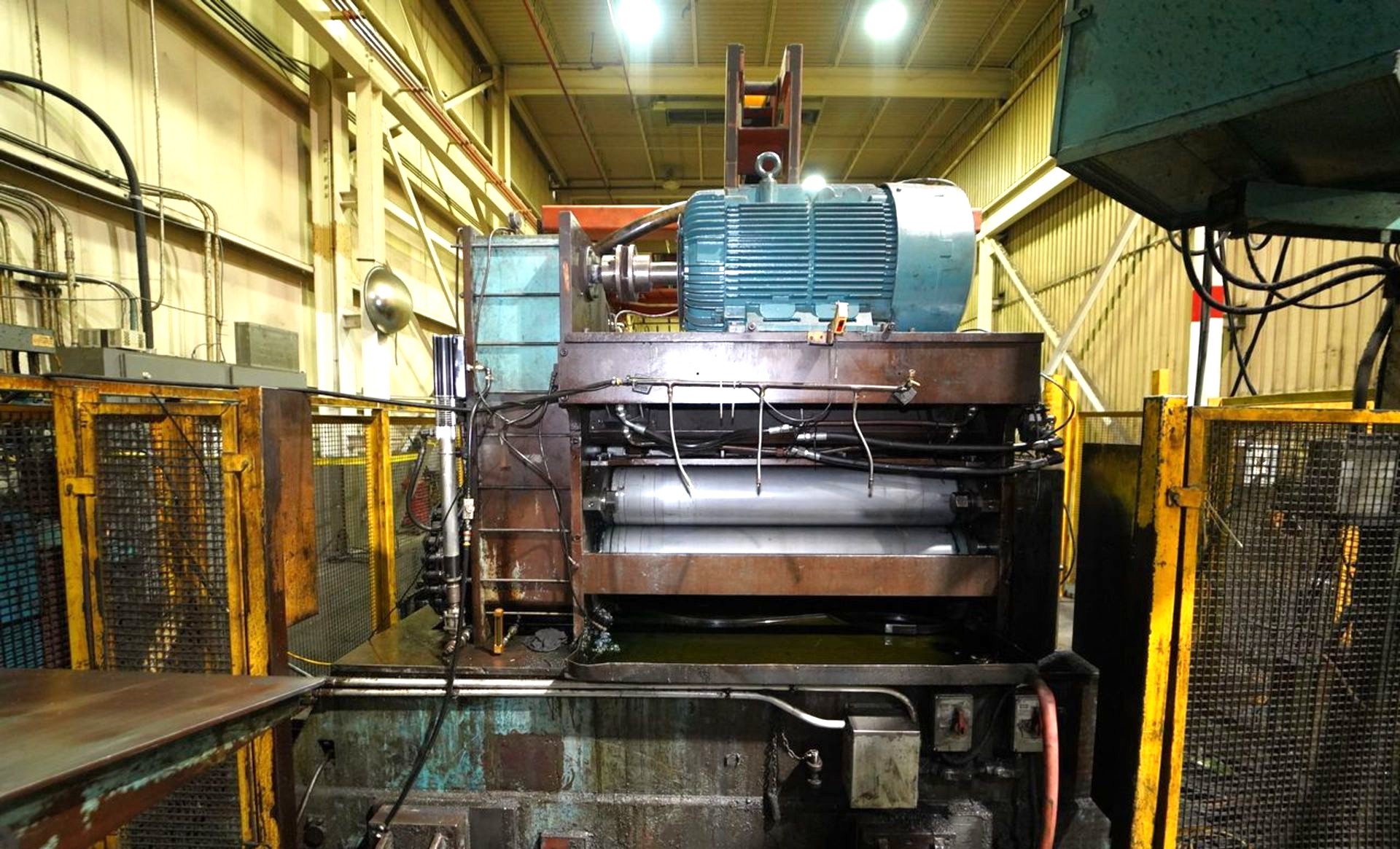

Straightening Roll: 8”
Number Of Straightening Rolls: 7
Feed Roll Dia: 10”
